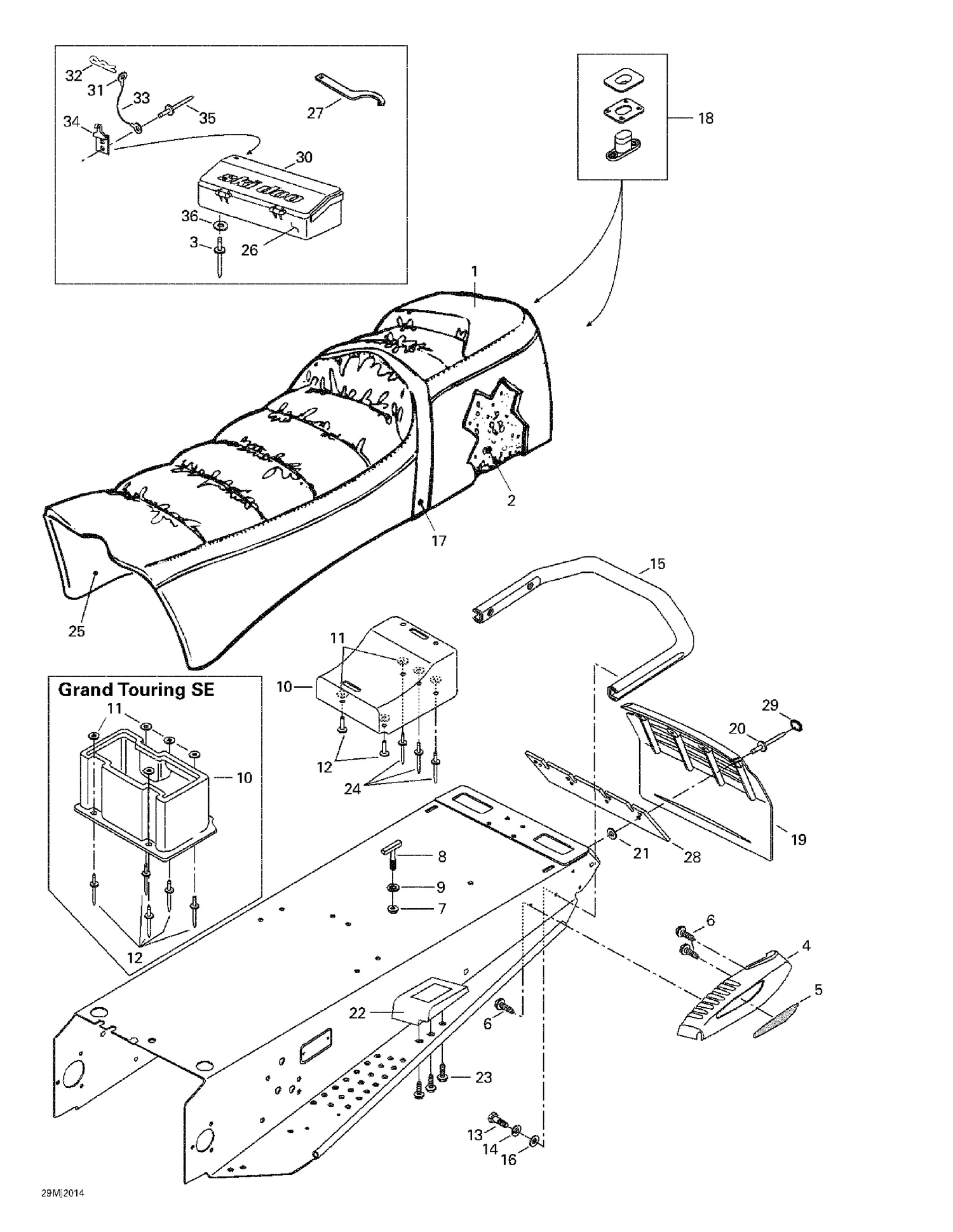

09- Seat And Accessories
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 4 | 572103900 | RH Moulding |
| 5 | 516000237 | RH Reflector, Red |
| 6 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 732610072 | Push Nut |
| 13 | 207182044 | Hex. Screw M8 X 20 |
| 14 | 234181401 | Lock Washer 8 mm |
| 16 | 234081410 | Flat Washer 8 mm |
| 17 | 415095600 | Seat Belt |
| 18 | 414728000 | SEAT BUCKLE - Call your local BRP dealership |
| 20 | 293150100 | Pop Rivet 3/16" This part replaces 390908000. |
| 21 | 517225900 | Flat Washer |
| 22 | 572088700 | RH Footrest |
| 23 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 26 | 529035592 | Tool Kit (Not Shown) |
| 27 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 28 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 29 | 415073300 | Cap |
| 31 | 561502800 | Terminal Ring |
| 32 | 414112400 | HAIR PIN - Call your local BRP dealership |
| 33 | Not | Available As Spare Part - Steel Wire |
| 34 | 517168500 | Latch |
| 35 | Not | Available As Spare Part - Pop Rivet |
| 516000238 | LH | Reflector, Red 516000238 |
| 516000238 | Réflecteur | GA, Rouge 516000238 |
| 572088800 | LH | Footrest 572088800 |
| 572088800 | Repose-Pieds | GA 572088800 |
| 572104000 | Enjoliveur | GA 572104000 |
| 572104000 | LH | Moulding 572104000 |
