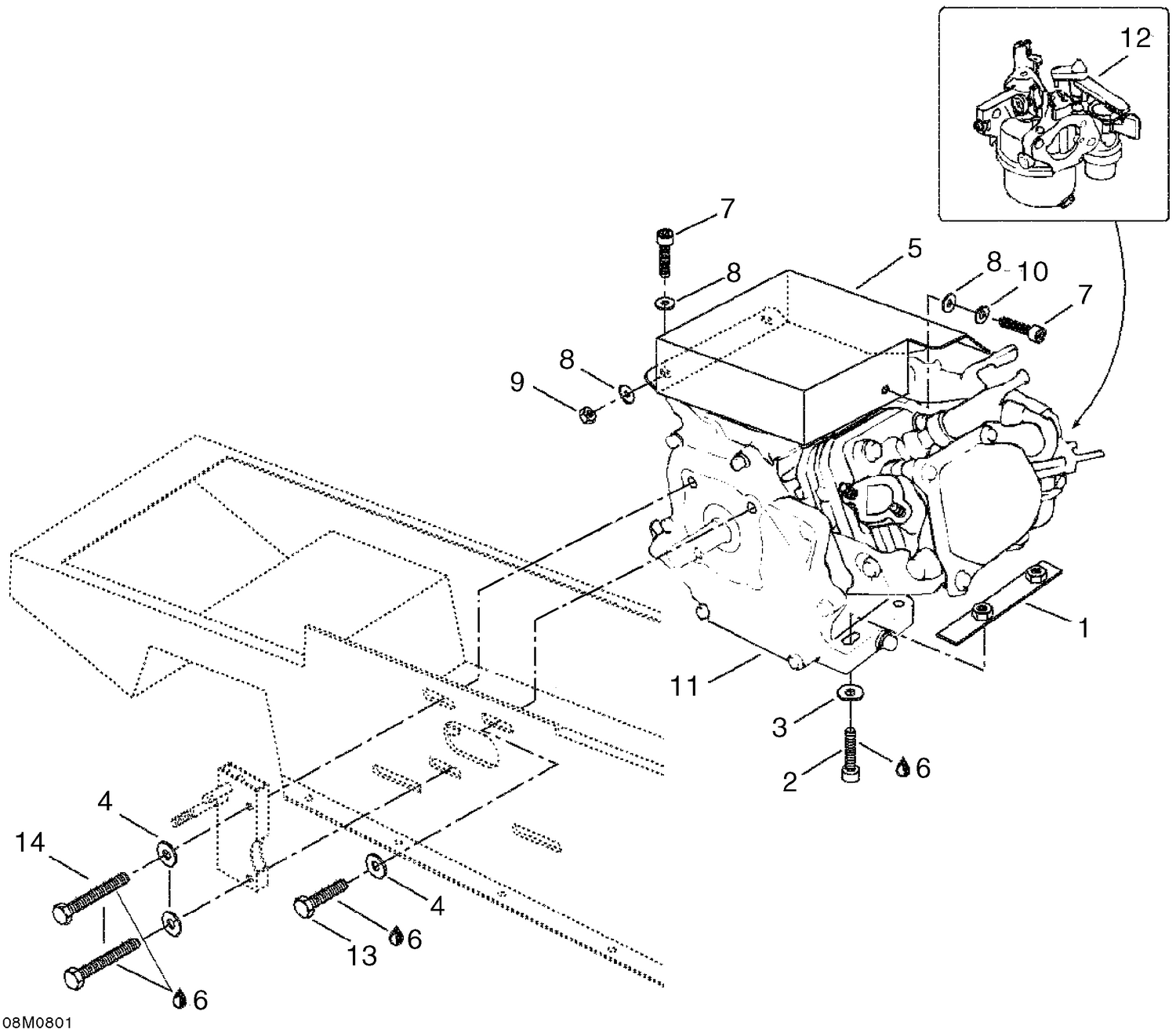

| Ref | Part Number | Description |
|---|
| 1 |
512057400 |
STOPPER PLATE - Call your local BRP dealership |
| 2 |
205083544 |
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 3 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 4 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 5 |
512059187 |
ENGINE PROTECTOR - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
207063044 |
Hex. Screw M6 X 30 |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
234161471 |
Lock Washer M6, Black |
| 11 |
Not |
Available As Spare Part - Engine Ass'y (Yellow) |
| 12 |
H16100ZK7U51 |
Carburetor Ass'y |
| 13 |
Not |
Available As Spare Part - Hexagonal Screw 5/16 x 3/4 |
