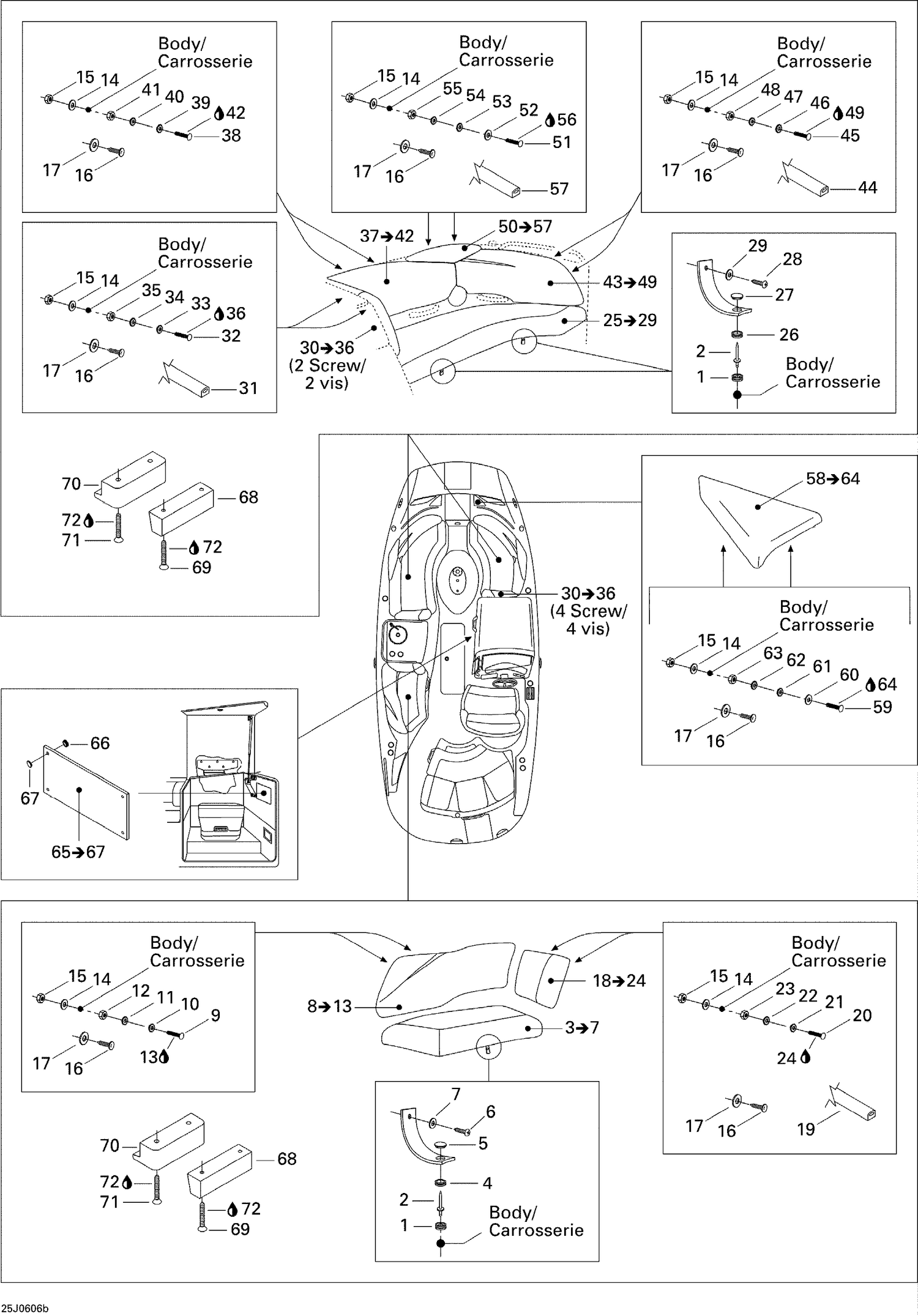

| Ref | Part Number | Description |
|---|
| 1 |
204000084 |
BOTTOM SNAP - Call your local BRP dealership |
| 2 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 4 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 5 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 6 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 7 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 9 |
204000130 |
Elevator Bolt |
| 10 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 11 |
234461608 |
External Serrated Lock Washer 6 mm |
| 12 |
204100060 |
Hex. Jam Nut |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 15 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 16 |
293730021 |
Dart |
| 17 |
204100040 |
Nylon Washer 5/16” |
| 19 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 20 |
204000130 |
Elevator Bolt |
| 21 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 22 |
234461608 |
External Serrated Lock Washer 6 mm |
| 23 |
204100060 |
Hex. Jam Nut |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 26 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 27 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 28 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 29 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 31 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 32 |
204000130 |
Elevator Bolt |
| 33 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 34 |
234461608 |
External Serrated Lock Washer 6 mm |
| 35 |
204100060 |
Hex. Jam Nut |
| 36 |
293800060 |
Loctite 243, 10 ml |
| 38 |
204000130 |
Elevator Bolt |
| 39 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 40 |
234461608 |
External Serrated Lock Washer 6 mm |
| 41 |
204100060 |
Hex. Jam Nut |
| 42 |
293800060 |
Loctite 243, 10 ml |
| 44 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 45 |
204000130 |
Elevator Bolt |
| 46 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 47 |
234461608 |
External Serrated Lock Washer 6 mm |
| 48 |
204100060 |
Hex. Jam Nut |
| 49 |
293800060 |
Loctite 243, 10 ml |
| 51 |
204000130 |
Elevator Bolt |
| 52 |
293050001 |
Flat Washer M8.5 x 18 |
| 53 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 54 |
234461608 |
External Serrated Lock Washer 6 mm |
| 55 |
204100060 |
Hex. Jam Nut |
| 56 |
293800060 |
Loctite 243, 10 ml |
| 57 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 59 |
204000130 |
Elevator Bolt |
| 60 |
293050001 |
Flat Washer M8.5 x 18 |
| 61 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 62 |
234461608 |
External Serrated Lock Washer 6 mm |
| 63 |
204100060 |
Hex. Jam Nut |
| 64 |
293800060 |
Loctite 243, 10 ml |
| 66 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 67 |
204000085 |
SNAP COVER - Call your local BRP dealership |
| 68 |
204611805 |
LATCH - Call your local BRP dealership |
| 69 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 70 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 71 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
