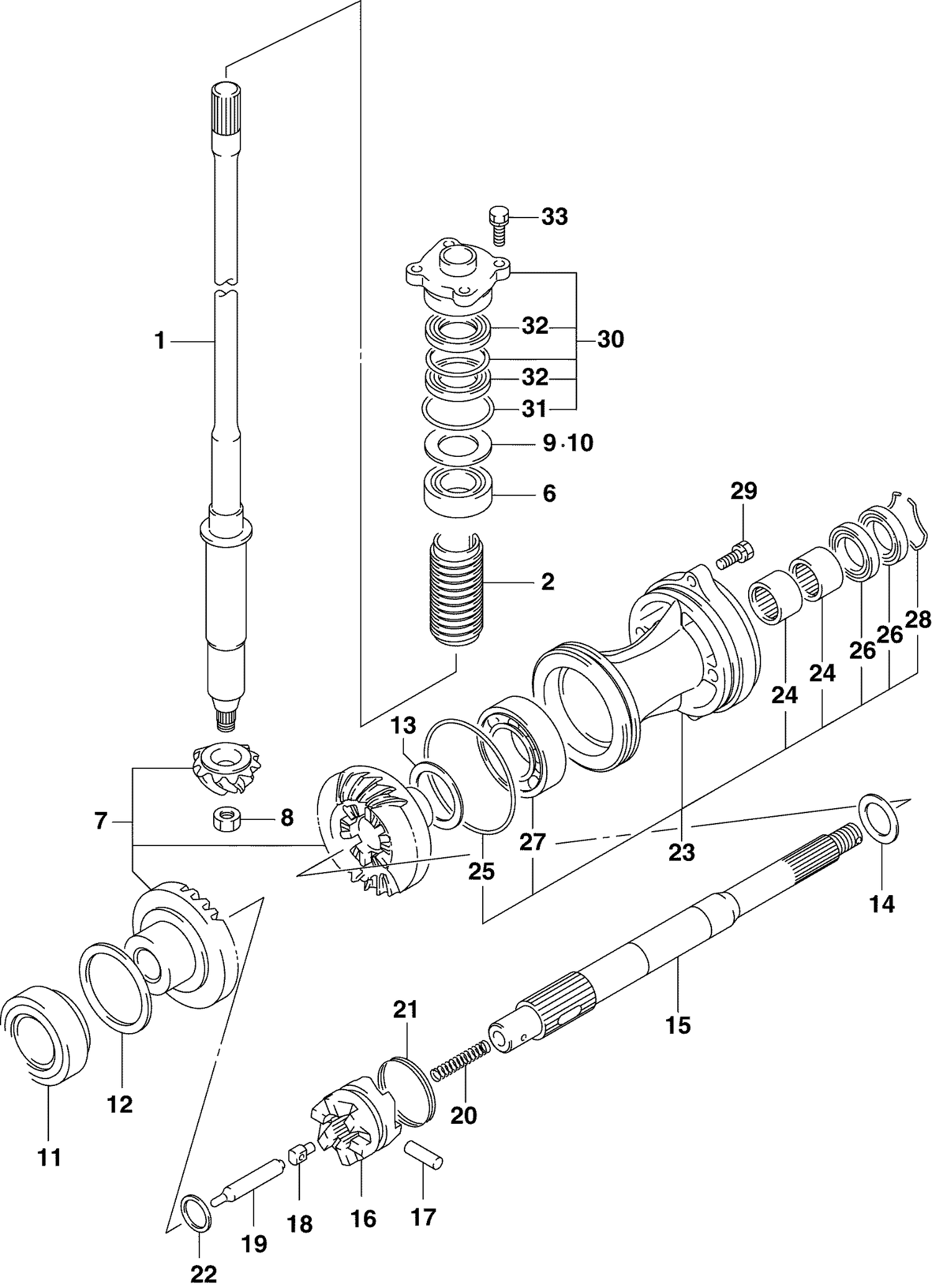

DRIVESHAFT & PROPELLER SHAFT
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034537 | SHAFT Assy, Drive |
| 2 | 5032553 | COLLAR, DRIVE SHAFT |
| 6 | 5030532 | BEARING |
| 7 | 5032933 | PINION GEAR SET |
| 8 | 5032877 | NUT |
| 9 | 5030975 | SHIM KIT, Driveshaft |
| 15 | 5032582 | PROPELLER SHAFT Assy |
| 16 | 5032583 | SHIFTER, Clutch dog |
| 17 | 5032584 | PIN |
| 18 | 5030518 | PIN |
| 19 | 5032585 | ROD, Push |
| 20 | 5030595 | SPRING |
| 21 | 5034145 | SPRING |
| 22 | 5032587 | WASHER |
| 23 | 5032862 | HOUSING, Propeller shaft brg |
| 29 | 5031216 | BOLT |
| 30 | 5030913 | BEARING HSG & SEAL Assy |
