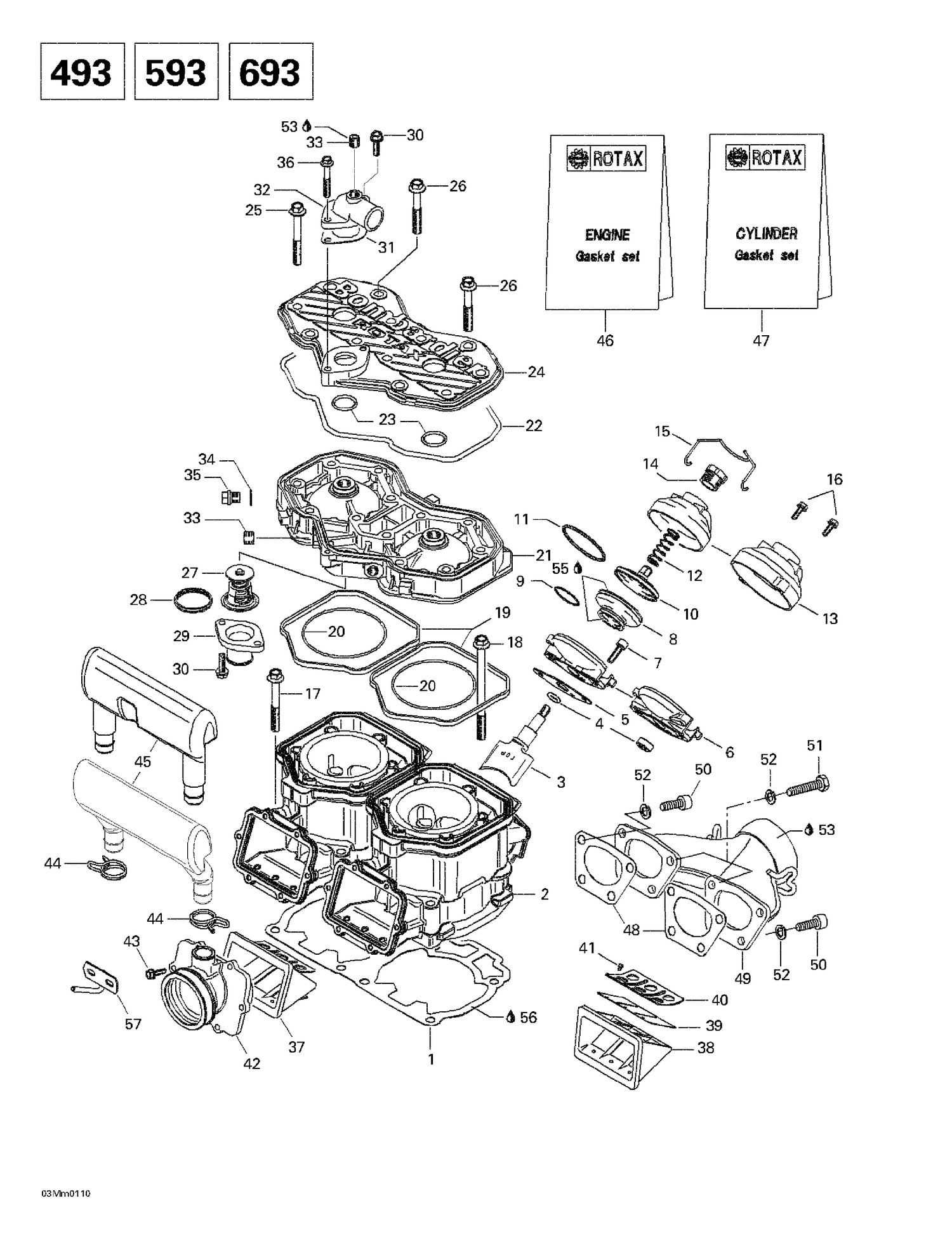

| Ref | Part Number | Description |
|---|
| 2 |
421000568 |
REBUILD-CYLINDER 493 2000 - Call your local BRP dealership |
| 5 |
420250239 |
Gasket |
| 7 |
205062044 |
Socket Head Screw M6 X 20 |
| 8 |
420260723 |
Exhaust Bellows This part replaces 290260723. |
| 9 |
420838255 |
Hose Spring This part replaces 420838253. |
| 11 |
420939281 |
Hose Spring This part replaces 290239048. |
| 14 |
420241221 |
Adjuster Screw |
| 16 |
420841555 |
Hex. Tapping Screw M5 X 20 |
| 19 |
420931590 |
Rubber Ring |
| 22 |
420950320 |
O-Ring This part replaces 290950320. |
| 23 |
420430782 |
O-Ring |
| 24 |
420923465 |
CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460. |
| 25 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 26 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 27 |
420922519 |
Thermostat This part replaces 420922515. |
| 28 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 29 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 30 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 31 |
420850339 |
Gasket This part replaces 420850338. |
| 32 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 33 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 36 |
420941451 |
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 41 |
420941215 |
Phillips Screw M3 X 5 |
| 43 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 44 |
420851440 |
CLAMP - Call your local BRP dealership |
| 53 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
| 54 |
293800060 |
Loctite 243, 10 ml |
| 55 |
413707000 |
Dow Corning 111, 150 g |
| 420854266 |
Boîtier |
De Valve 420854266 |
| 420854266 |
Valve |
Housing 420854266 |
| 420911552 |
Couvercle |
De Soupape 420911552 |
| 420911552 |
Valve |
Cover 420911552 |
| 420950732 |
Oil |
Seal This part replaces 420950730. 420950732 |
