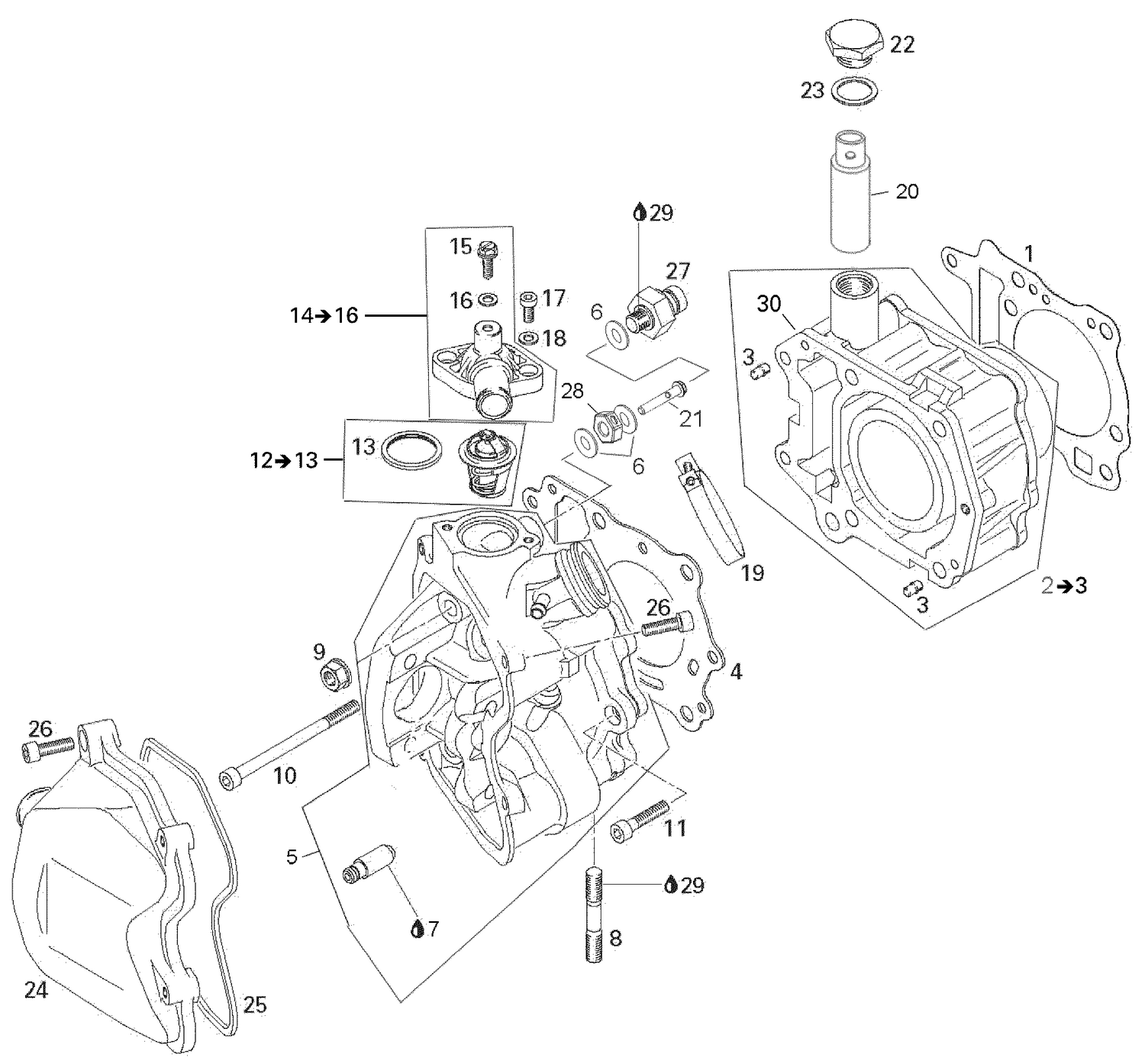

| Ref | Part Number | Description |
|---|
| 1 |
A12191179000 |
GASKET - Call your local BRP dealership |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 4 |
420650172 |
GASKET - Call your local BRP dealership |
| 5 |
A12200179000 |
CYLINDER HEAD ASS'Y - Call your local BRP dealership |
| 6 |
A941031015012 |
COPPER WASHER - Call your local BRP dealership |
| 7 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 8 |
420240366 |
STUD - Call your local BRP dealership |
| 9 |
233081416 |
Hex. Flange Nut M8 |
| 10 |
420241481 |
Socket Head Screw M6 X 90 |
| 11 |
205063044 |
Socket Head Screw M6 X 30 |
| 13 |
A19312179000 |
THERMOSTAT GASKET - Call your local BRP dealership |
| 15 |
420441621 |
Screw M5 X 16 This part replaces 420941950. |
| 16 |
A941020511010 |
GASKET RING - Call your local BRP dealership |
| 17 |
420241841 |
Socket Screw M5 x 12 |
| 18 |
420927574 |
Washer 5.3 This part replaces 420927571. |
| 19 |
420251052 |
HOSE CLAMP - Call your local BRP dealership |
| 20 |
A40546179000 |
Chain Expander |
| 21 |
A35502179000 |
Boulon 3 Voies - Appelez votre concessionnaire BRP local |
| 22 |
420552276 |
HEX. SCREW M18 X 10 - Call your local BRP dealership |
| 23 |
A941041824010 |
O-RING - Call your local BRP dealership |
| 24 |
A12310179000 |
VALVE COVER - Call your local BRP dealership |
| 25 |
A12391179000 |
GASKET - Call your local BRP dealership |
| 26 |
205062044 |
Socket Head Screw M6 X 20 |
| 27 |
A35500179000 |
COOLING TEMPERATURE SWITCH - Call your local BRP dealership |
| 28 |
A35501179000 |
Joint 3 Voies |
| 29 |
293800060 |
Loctite 243, 10 ml |
