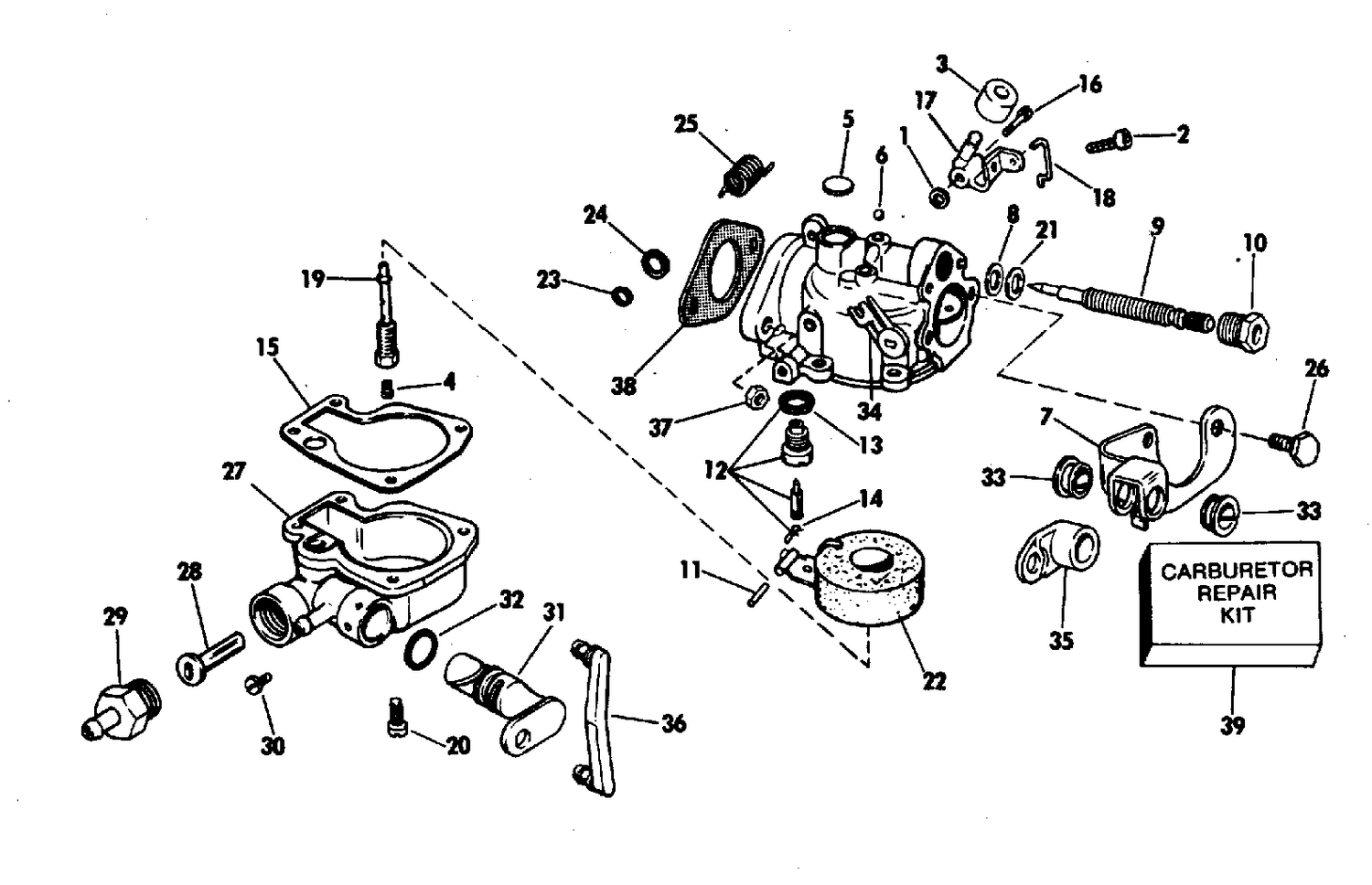

| Ref | Part Number | Description |
|---|
| 7 |
0325050 |
ADAPTER, Choke plate to carb |
| 9 |
0431634 |
NEEDLE VALVE ASSY., Slow speed adjustment This part replaces 0388981. |
| 14 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 15 |
0338878 |
GASKET This part replaces 0319011. |
| 18 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 19 |
0323410 |
NOZZLE, High speed |
| 20 |
0319008 |
GROMMET, Cable, lower motor cover |
| 23 |
0203949 |
E RING LINK This part replaces 0202755. |
| 26 |
0322285 |
PLATE & SLEEVE ASSY. |
| 27 |
0330881 |
FLOAT CHAMBER This part replaces 0319010. |
| 27 |
0391959 |
FLOAT CHAMBER ASSY. |
| 33 |
0318194 |
BUSHING |
| 34 |
0324658 |
LEVER, Choke shaft |
| 35 |
0324695 |
LEVER, Choke knob |
| 36 |
0324696 |
LINK, Lever to valve |
| 37 |
0328742 |
NUT This part replaces 0306338. |
| 38 |
0323452 |
GASKET |
| 39 |
0439070 |
CARBURETOR REPAIR KIT This part replaces 0390990. |
| 0389579 |
0389579 |
CARBURETOR ASSY. |
| 0391517 |
0397413 |
CARBURETOR ASSY. This part replaces 0391517. |
