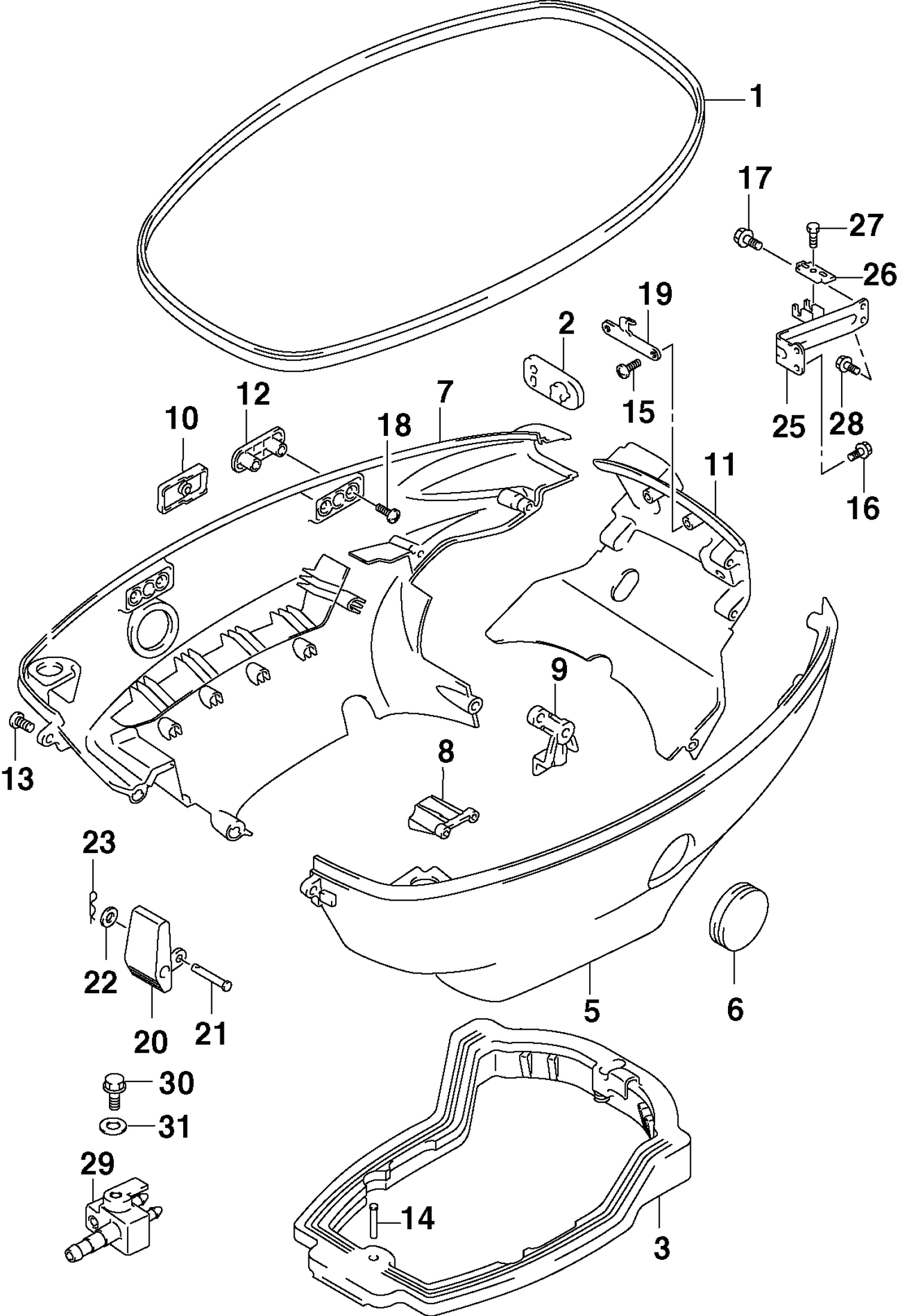

| Ref | Part Number | Description |
|---|
| 1 |
5031553 |
RUBBER, SIDE COVER |
| 2 |
5036483 |
GROMMET, REMOTE CABLE This part replaces 5031554. |
| 3 |
5034383 |
SEAL, SIDE COVER This part replaces 5031555. |
| 5 |
5032810 |
COVER, SIDE STBD |
| 6 |
5030948 |
PLUG, Cover, drain |
| 7 |
5032811 |
COVER, SIDE PORT |
| 8 |
5031567 |
HOLDER, Cover, lower |
| 9 |
5031568 |
HOLDER, Cover, lower |
| 10 |
5031569 |
CUSHION, Cover, lower |
| 11 |
5036060 |
PANEL, FRONT This part replaces 5032812. |
| 12 |
5031571 |
PROTECTOR, Cushion |
| 13 |
5031824 |
SCREW (6X30) |
| 14 |
5031906 |
CLIP |
| 15 |
5031637 |
SCREW |
| 19 |
5031557 |
CROCHET, PANNEAU INSTR. |
| 20 |
5030943 |
FASTENER |
| 21 |
5030944 |
GOUPILLE, LEVIER |
| 22 |
5030458 |
RONDELLE |
| 23 |
5030573 |
CLIP |
| 25 |
5031592 |
BRACKET CONTROL CABLES |
| 26 |
5031593 |
BUTÉE, CÂBLE CDE DISTANCE |
