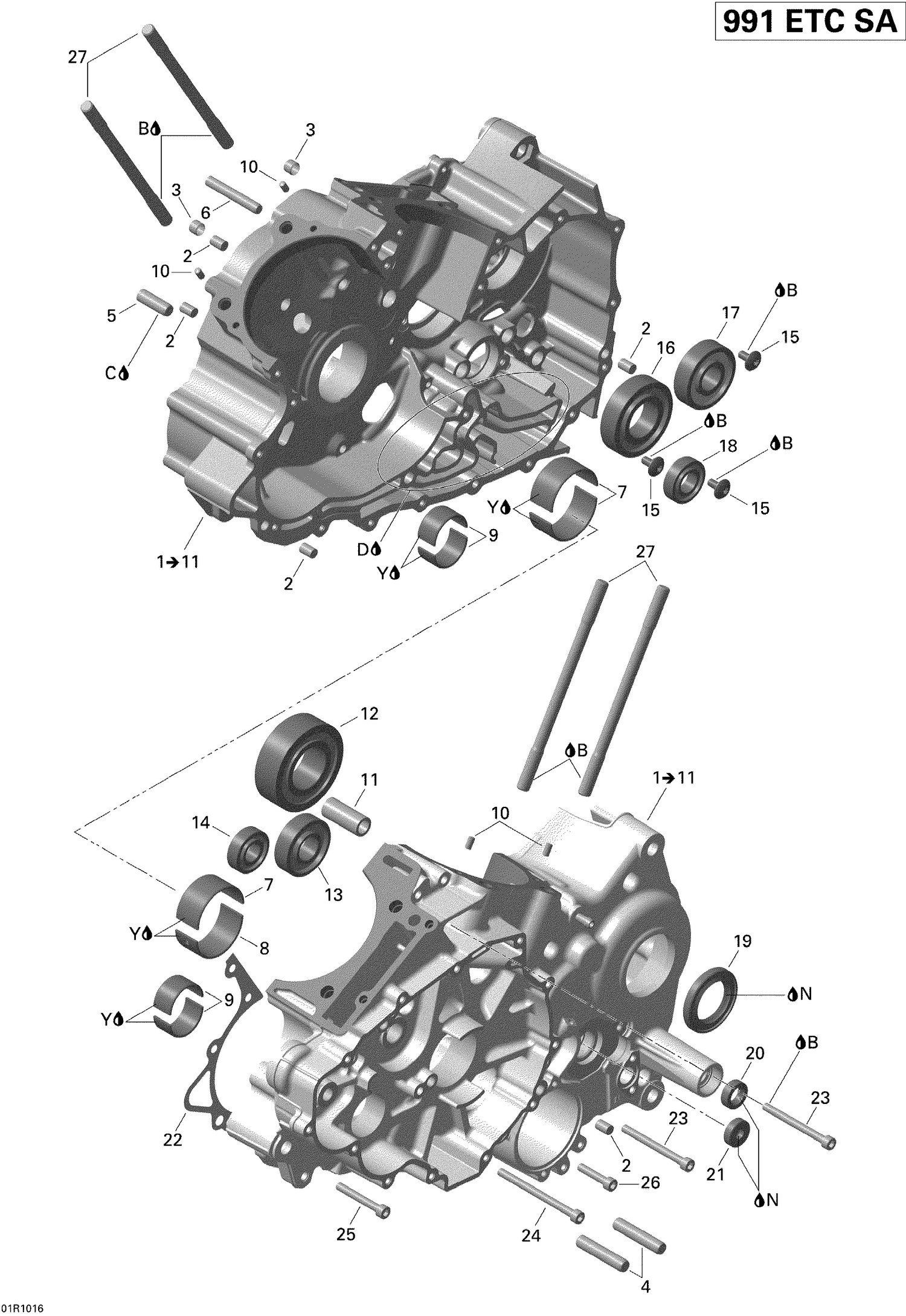

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| C |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| D |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| N |
413707000 |
Dow Corning 111, 150 g |
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420929501 |
DOWEL TUBE - Call your local BRP dealership This part replaces 420929500. |
| 4 |
420229302 |
Location Pin 10 M6x50 This part replaces 420229301. |
| 5 |
420929930 |
PIN, M6 X 50 - Call your local BRP dealership |
| 6 |
420229385 |
PIN, M6 X 55 - Call your local BRP dealership |
| 7 |
420233745 |
HALF BUSHING - Call your local BRP dealership |
| 7 |
420233746 |
Plain Bearing, Red |
| 7 |
420233748 |
Plain Bearing,Yellow |
| 8 |
420233740 |
HALF BUSHING - Call your local BRP dealership |
| 8 |
420233741 |
Plain Bearing, Red |
| 8 |
420233743 |
Plain Bearing, Yellow |
| 9 |
420233711 |
Plain Bearing, Blue |
| 9 |
420233820 |
Plain Bearing, Red |
| 9 |
420233822 |
HALF BUSHING - Call your local BRP dealership |
| 10 |
420929650 |
Drive Pin 5 X 10 |
| 11 |
420229450 |
BOLT - Call your local BRP dealership |
| 12 |
420832315 |
Ball Bearing This part replaces 420832855. |
| 13 |
420932677 |
Ball Bearing |
| 14 |
420932290 |
Ball Bearing |
| 15 |
420241537 |
Hex Flat Head Screw M6 X 13 T30 This part replaces 420241535. |
| 16 |
420232787 |
Ball Bearing |
| 17 |
420832144 |
BALL BEARING - Call your local BRP dealership |
| 18 |
420232625 |
Ball Bearing |
| 19 |
420831185 |
Oil Seal |
| 20 |
420250455 |
Oil Seal |
| 21 |
420631910 |
Oil Seal |
| 22 |
420430630 |
Gasket |
| 23 |
420241263 |
Allen Screw This part replaces 420241261. |
| 24 |
420241503 |
ALLEN SCREW, M6 X 80 - Call your local BRP dealership This part replaces 420241501. |
| 25 |
205064544 |
SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership |
| 26 |
205063044 |
Socket Head Screw M6 X 30 |
| 27 |
420241580 |
Stud |
