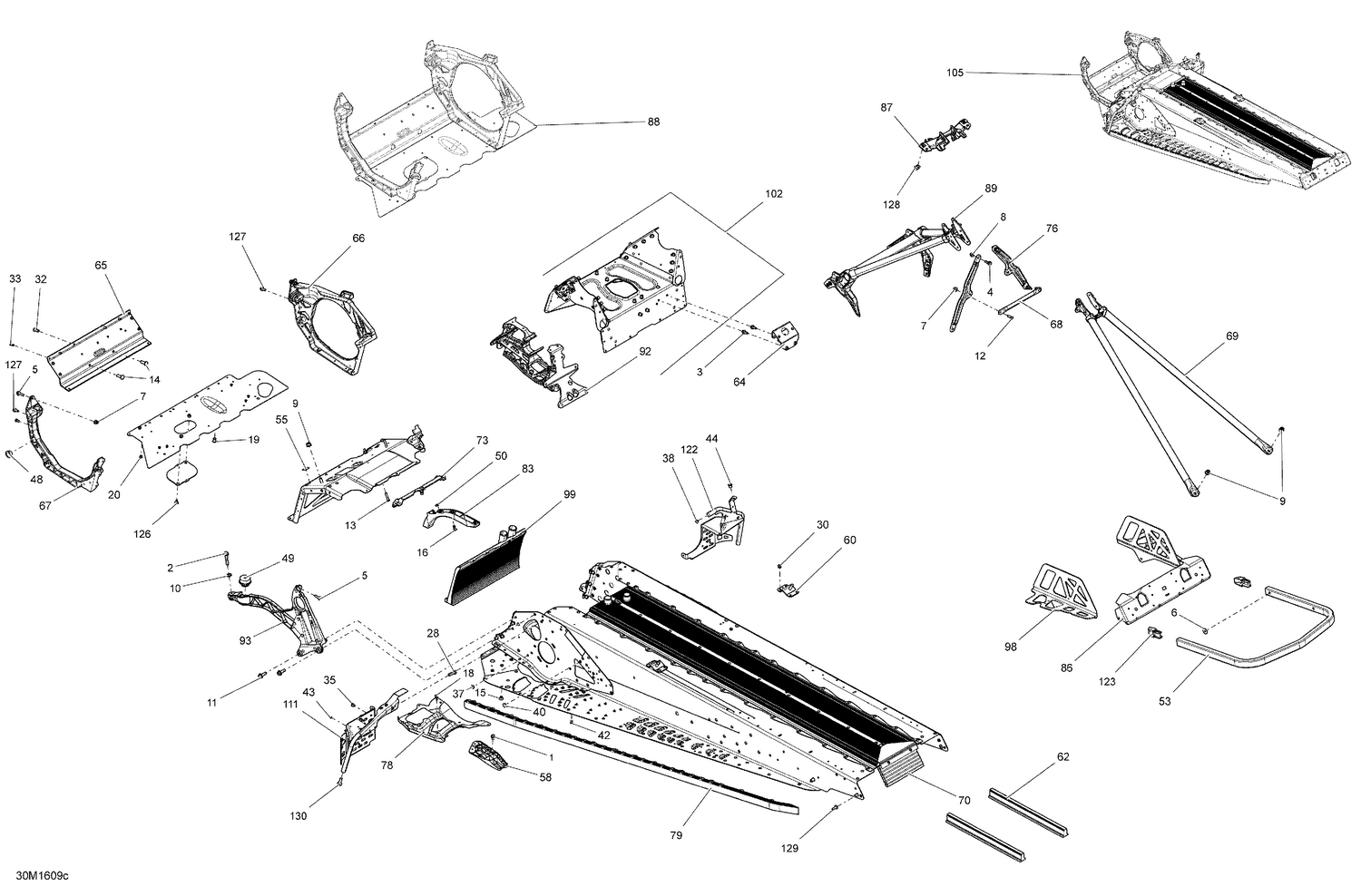

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 3 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 6 |
224061201 |
Flat Washer |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 9 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 10 |
234281474 |
Conical Spring Washer M8 |
| 11 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 12 |
250300027 |
Clinch Stud M6 X 20 |
| 13 |
250300031 |
Clinch Stud M6 X 30 |
| 14 |
250300038 |
Clinch Stud |
| 15 |
293150104 |
Pop Rivet 3/16" |
| 16 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 18 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 19 |
293150120 |
Hemlock Rivet 6.5 mm |
| 20 |
293150144 |
Stavex Rivet |
| 28 |
293150146 |
Henrob Rivet |
| 30 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 32 |
293150182 |
Monobolt Rivet 6.4 |
| 33 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 35 |
293450268 |
Insert M5 X 0.8 |
| 38 |
293730042 |
Full Moon Dart 5 mm |
| 40 |
293730059 |
Full Moon Dart 10 mm |
| 42 |
390909100 |
Avex Rivet |
| 43 |
390909200 |
Avex Rivet |
| 44 |
293450275 |
Insert |
| 48 |
505073317 |
Leg Cushion |
| 49 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 50 |
517124300 |
Washer |
| 55 |
518325560 |
Adhesive Patch |
| 58 |
518325782 |
RH Deflector, Black Polypropylene |
| 58 |
518325783 |
LH Deflector, Black Polypropylene |
| 60 |
518325973 |
RH Rear Base |
| 60 |
518325974 |
LH Rear Base |
| 62 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 64 |
518326178 |
Engine Support |
| 65 |
518326198 |
Front Member |
| 66 |
518326328 |
RH Side Member |
| 67 |
518326330 |
LH Side Member |
| 68 |
518326355 |
Center Column Support |
| 69 |
518326559 |
Rear Member |
| 70 |
518326641 |
Rear Radiator Ass'y, 137" |
| 73 |
518326656 |
Seal |
| 76 |
518326848 |
Upper Column Support |
| 78 |
518326937 |
RH Reinforcement, Running Board |
| 78 |
518326938 |
LH Reinforcement, Running Board |
| 83 |
518326973 |
Front Tunnel Protector |
| 86 |
518327105 |
Rear Cap |
| 87 |
518327145 |
Sub A Support |
| 88 |
518328078 |
E Module |
| 89 |
518327565 |
Front Member |
| 92 |
518327487 |
Front Suspension Support |
| 93 |
415130014 |
ASS'Y BRACE KIT - Call your local BRP dealership This part replaces 518327535. |
| 99 |
518327907 |
Front Radiator Ass'y |
| 102 |
518328320 |
Cross Member S Module |
| 111 |
518328528 |
LH Stirup |
| 122 |
518328942 |
RH Stirup |
| 126 |
250000767 |
Torx Truss Screw M6 X 12 |
| 127 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 128 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 129 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
