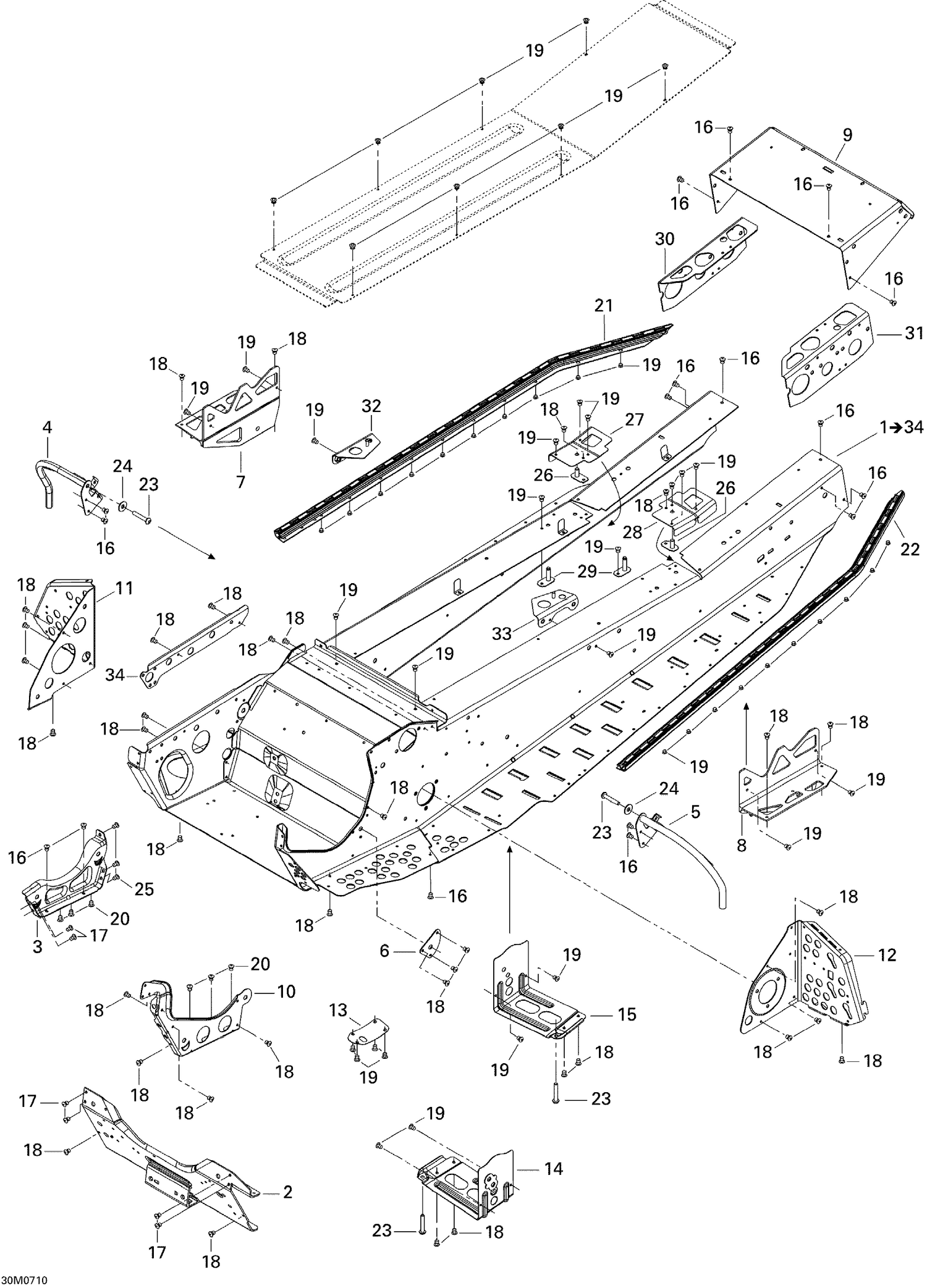

| Ref | Part Number | Description |
|---|
| 2 |
518324114 |
FRONT PAN WELD - Call your local BRP dealership |
| 3 |
518323346 |
ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 4 |
518324162 |
RH TOE HOLD SUPPORT - Call your local BRP dealership |
| 5 |
518324163 |
LH TOE HOLD SUPPORT - Call your local BRP dealership |
| 6 |
518323507 |
OUTER REINFORCEMENT - Call your local BRP dealership |
| 7 |
518325286 |
RH SUSPENSION BRACKET - Call your local BRP dealership |
| 8 |
518325287 |
LH Suspension Bracket |
| 9 |
518324561 |
REAR CAP - Call your local BRP dealership |
| 10 |
518323241 |
INNER REINFORCEMENT, BLACK - Call your local BRP dealership |
| 11 |
518323805 |
RH Footrest Reinforcement |
| 12 |
518324527 |
LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 13 |
518324169 |
PLATE - Call your local BRP dealership |
| 14 |
518324433 |
RH FOOTREST - Call your local BRP dealership |
| 15 |
518324435 |
LH FOOTREST - Call your local BRP dealership |
| 16 |
390909200 |
Avex Rivet |
| 17 |
390909100 |
Avex Rivet |
| 18 |
390402200 |
Pop Rivet 3/16" |
| 19 |
390402400 |
Pop Rivet 3/16" |
| 20 |
390910300 |
HENROB RIVET - Call your local BRP dealership |
| 21 |
518324957 |
RH ROLLER - Call your local BRP dealership |
| 22 |
518324958 |
LH ROLLER - Call your local BRP dealership |
| 23 |
205982086 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 24 |
234082410 |
Flat Washer 8 mm |
| 25 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 26 |
518324384 |
SEAT BRACKET - Call your local BRP dealership |
| 27 |
518324431 |
RH FRAME REINFORCEMENT - Call your local BRP dealership |
| 28 |
518324432 |
LH FRAME REINFORCEMENT - Call your local BRP dealership |
| 29 |
518322791 |
Tank Bracket |
| 30 |
518324959 |
RH REINFORCEMENT - Call your local BRP dealership |
| 31 |
518324960 |
LH Reinforcement |
| 32 |
518324385 |
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership |
| 33 |
518324386 |
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership |
