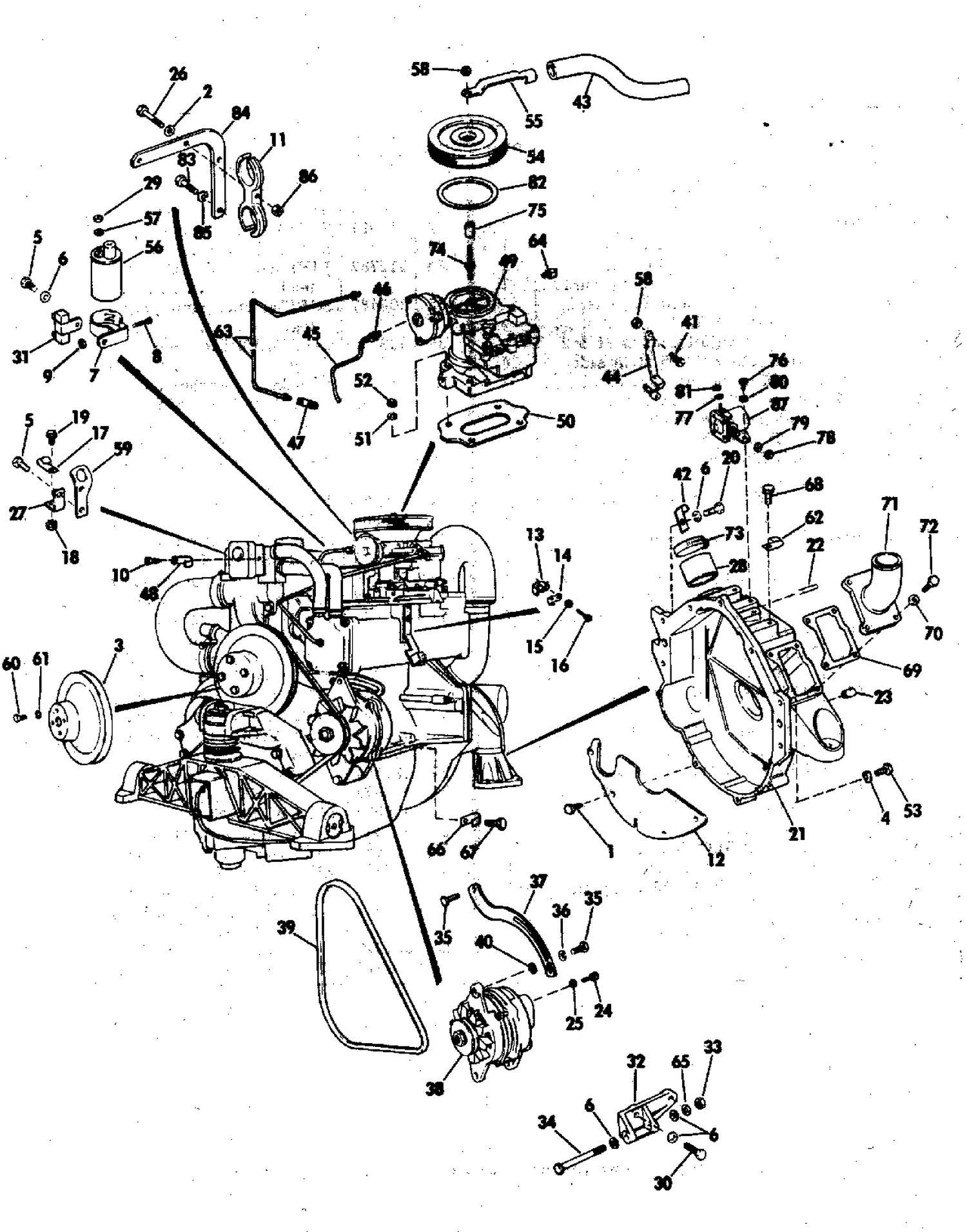

| Ref | Part Number | Description |
|---|
| 1 |
3852421 |
SCREW, Baffle This part replaces 0907768. |
| 2 |
0306407 |
LOCCKWASHER,Cover latch |
| 3 |
0384104 |
PULLEY ASSEMBLY This part replaces 0383932. |
| 5 |
0306834 |
BOLT, Throttle lever retainer |
| 7 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 8 |
0306519 |
SCR,Coil clamp |
| 9 |
0308335 |
CLAMP, Coil |
| 10 |
0311415 |
SCREW, Cable clamp |
| 11 |
0314823 |
RETAINER, Cable con |
| 12 |
0907767 |
RING GUARD |
| 13 |
0317670 |
LIFT RING This part replaces 0316085. |
| 14 |
0310687 |
DETENT SPRING, Anchor block |
| 15 |
0310688 |
SAPCER, Anchor block |
| 16 |
0311084 |
SCREW, Anchor block |
| 17 |
3852427 |
CLAMP, Fuel line to bracket This part replaces 0907852. |
| 18 |
0311375 |
NUT This part replaces 0316659. |
| 20 |
0908380 |
SCREW |
| 21 |
0980376 |
ADAPTER HOUSING & STUD ASSEMBLY |
| 23 |
0309614 |
DOWEL |
| 25 |
0206421 |
D WASHER |
| 26 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 27 |
0908605 |
BRACKET, Clamp |
| 28 |
0908049 |
CAP, Exh. inlet adapter, 245 hp |
| 30 |
0310896 |
SCREW |
| 31 |
0981654 |
BALLAST RESISTOR This part replaces 0383433. |
| 32 |
0907798 |
ALTERNATOR BRACKET |
| 34 |
0311391 |
SCR,Altnr to brkt |
| 35 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 37 |
0907796 |
BRACE, Alternator |
| 38 |
0981187 |
ALTERNATOR ASSEMBLY |
| 39 |
0311606 |
BELT |
| 43 |
0912531 |
HOSE, Cover This part replaces 0907792. |
| 44 |
0382747 |
LEVER & PIN |
| 45 |
0907797 |
TUBE, Heat exchange |
| 46 |
0306345 |
NUT, Tube |
| 47 |
0306344 |
BALL SLEEVE |
| 49 |
0980528 |
CARB & PLUG ASSY |
| 50 |
0315055 |
GASKET, Carb to adapter |
| 51 |
0311388 |
ORING |
| 53 |
0312178 |
SCREW |
| 54 |
0980032 |
FLAME ARRESTOR |
| 55 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 56 |
3852217 |
COIL ASSY. Ignition This part replaces 0383444. |
| 57 |
0550757 |
L'WASHER,Coil term |
| 58 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 59 |
0311111 |
LIFT BRACKET |
| 60 |
0306861 |
SCREW |
| 63 |
0979773 |
FUEL LINE, Pump to carb |
| 64 |
0310924 |
CLAMP, Main cable to adapter |
| 65 |
0309336 |
L'WASHER, Alternator to bracket |
| 67 |
0311415 |
SCREW, Cable clamp |
| 68 |
0303311 |
SCR,Clamp,eng cable |
| 69 |
0908517 |
GASKET, Adapter housing |
| 71 |
0908519 |
ELBOW, Exhaust housing |
| 72 |
0306435 |
SCREW, Brace to alternator |
| 73 |
0310894 |
CLAMP |
| 74 |
0980874 |
STUD & SPACER ASSY |
| 75 |
0908825 |
SPACER |
| 76 |
0313117 |
SCR,Clamp,eng cable |
| 80 |
0329241 |
RONDELLE This part replaces 0306482. |
| 81 |
0309602 |
LOCK NUT, Steering handle |
| 82 |
0908947 |
GASKET, Flame arrestor |
| 83 |
0300646 |
VIS, ancrage |
| 84 |
0908892 |
BRACKET,Retainer cable connection |
