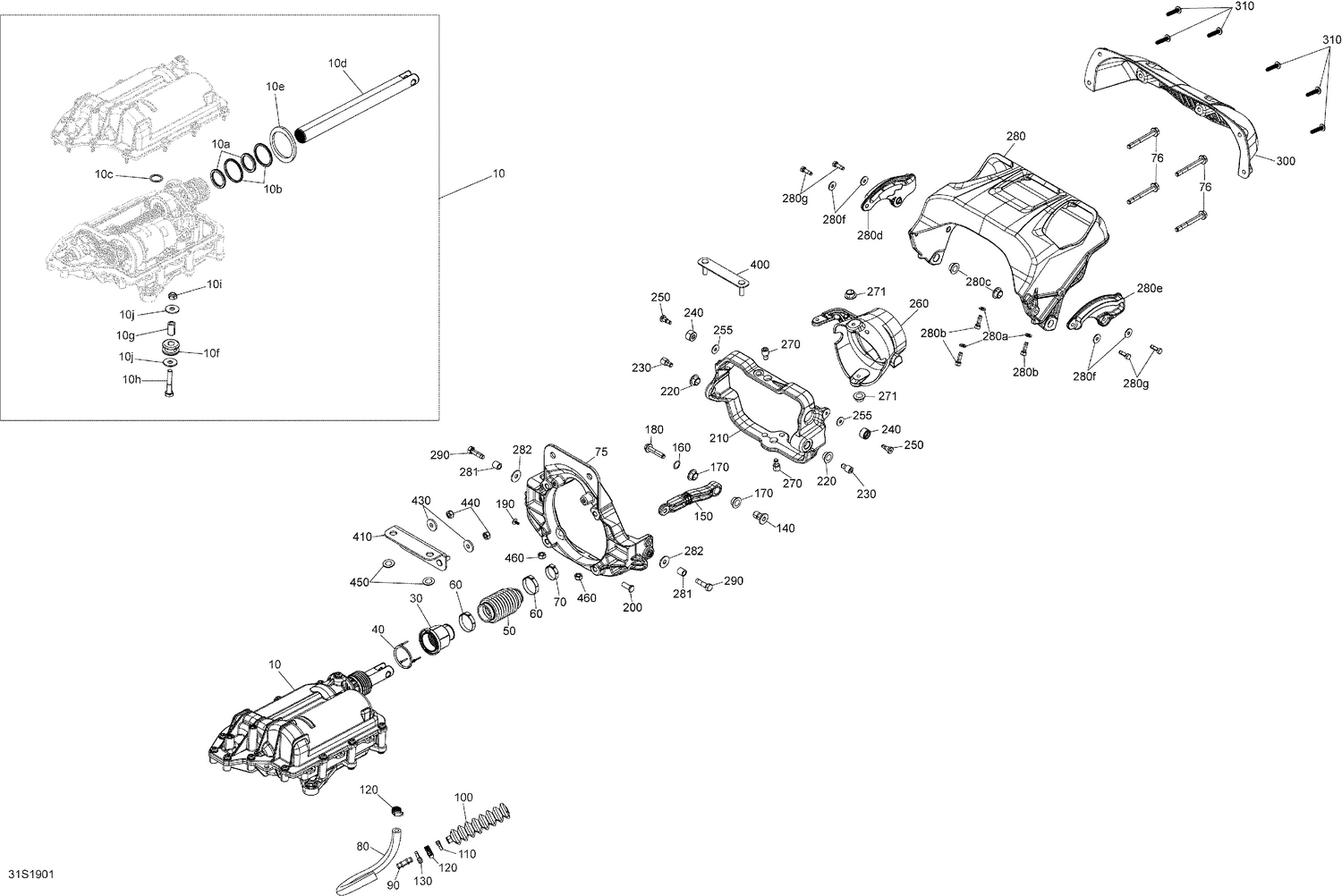

05- Reverse
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 279000108 | O-Ring |
| 10b | 293300107 | O-Ring |
| 10c | 293300187 | O-Ring |
| 10d | 278003027 | Output Shaft |
| 10e | 268000208 | Gasket |
| 10f | 293720104 | Grommet |
| 10g | 271001020 | Spacer |
| 10h | 207063560 | Hex. Screw M6 X 35 |
| 10i | 232561200 | Brass Elastic Stop Nut M6 |
| 10j | 234062600 | Flat Washer M6, Stainless |
| 30 | 268000308 | IBR Nut |
| 40 | 277001977 | Rubber Gasket |
| 50 | 268000186 | Boot |
| 60 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 70 | 293650099 | Crimp Clamp |
| 75 | 268000266 | Bracket |
| 76 | 250000835 | Screw-Hex.Flange DIN.6921 S.Grip |
| 80 | 219704420 | Was 509000407 Hose 8 mm |
| 90 | 293710157 | Fitting-Straig |
| 100 | 268000211 | Inner Boot |
| 110 | 293750002 | Tie Wrap 142 mm |
| 120 | 293650171 | Tridon Gear Clamp |
| 130 | 293750002 | Tie Wrap 142 mm |
| 140 | 268000269 | Bushing |
| 150 | 268000256 | Linkage Arm |
| 160 | 293300187 | O-Ring |
| 170 | 293900007 | Venturi Bushing |
| 180 | 250000963 | Hex. Flange Screw Din.6921 S.Grip |
| 190 | 250000565 | Hexalob Screw M4 X 10 |
| 200 | 268000309 | Shoulder Pin |
| 210 | 268000247 | Trimming Ring |
| 220 | 293900007 | Venturi Bushing |
| 230 | 250000837 | Screw Socket S.Grip |
| 240 | 295501160 | Roller Bushing Kit |
| 250 | 250000775 | Screw-Socket Shoulder M8X8 |
| 255 | 234062600 | Flat Washer M6, Stainless |
| 260 | 267000732 | Black Jet Pump Nozzle |
| 270 | 250000837 | Screw Socket S.Grip |
| 271 | 293900007 | Venturi Bushing |
| 280a | 234061600 | Stainless Flat Washer M6 |
| 280b | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 280c | 293900007 | Venturi Bushing |
| 280d | Not | Available As Spare Part - Trimp Ramp |
| 280e | Not | Available As Spare Part - Trimp Ramp |
| 280f | 234062600 | Flat Washer M6, Stainless |
| 280g | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 281 | 271001039 | Spacer |
| 282 | 234082600 | Flat Washer 8 mm, Stainless |
| 290 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 300 | 268000162 | Guard |
| 310 | 250001007 | Screw Torx M6.81 X 30 |
| 400 | 268000271 | Ass'y Bracket |
| 410 | 268000304 | Reverse Bracket |
| 420 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml |
| 430 | 279000336 | Flat Washer |
| 440 | 232581200 | Hex. Elastic Nut M8 Brass |
| 450 | 279000336 | Flat Washer |
