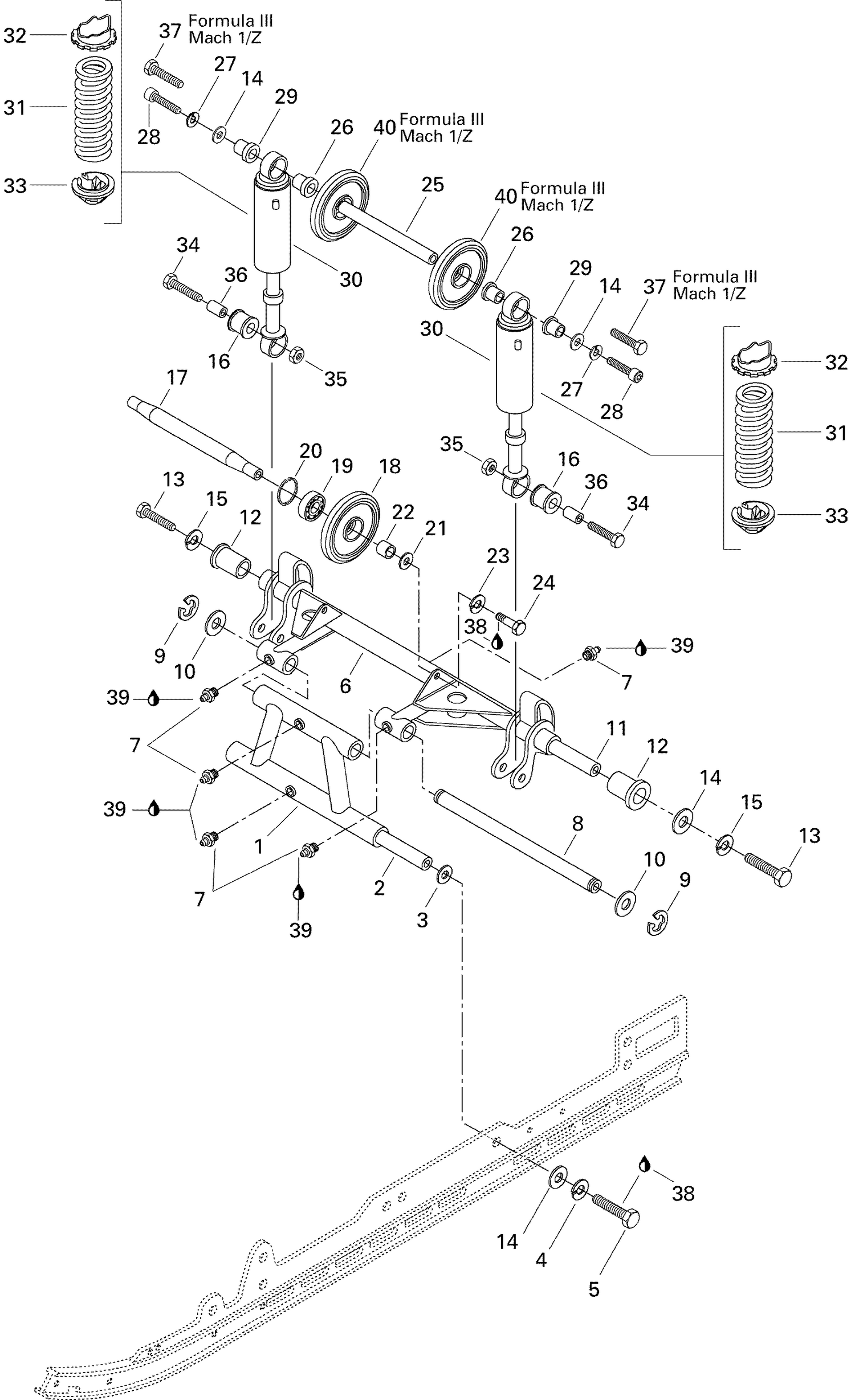

08- Rear Arm Mach Z LT

08- Rear Arm Mach Z LT

Parts (39)

RefPart NumberDescription
1 503137700 Rear Arm Pivot
2 503087200 Rear Shackle Lower Axle
3 503007900 Hard Washer
4 234100602 WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
5 207103544 Hex. Screw M10 X 35 This part replaces 222003565.
6 503141100 Rear Arm
7 408200700 Grease Fitting
8 503139000 Upper Axle
9 371907000 Circlip
10 503145400 Washer
11 503142100 Upper Axle
12 414530000 CUSHION - Call your local BRP dealership
13 207005544 Hex. Screw M10 X 55 This part replaces 222005565.
14 234001410 Flat Washer 10 mm This part replaces 224001211.
15 234100602 WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
16 414942300 Cushion
17 503150000 Axle
18 570029100 Idler Wheel 102
19 405404600 Ball Bearing
20 371907600 Cirplip
21 503004400 Hardened Washer
22 503135800 Spacer
23 234181401 Lock Washer 8 mm This part replaces 224781140.
24 207083544 Hex. Screw M8 X 35 This part replaces 222083565.
25 503140000 Shock Pivot
26 414796900 Pad
27 234100602 WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
28 205003544 Socket Screw M10 X 35 This part replaces 222903565.
29 503142900 Spacer
30 414953600 Rear Shock
31 415014500 Spring
32 505073625 Adjustment Cam This part replaces 414762600.
33 503149700 Spring Stopper
34 207004544 Hex. Screw M10 X 45 This part replaces 222004565.
35 233601416 Elastic Locking Nut M10 X 1.5 This part replaces 228501045.
36 503163700 Spacer
37 XXX Not Available As Spare Parts
38 293800005 Loctite 271, 10 ml This part replaces 413707400.
39 413706100 LITHIUM GREASE, 400 GR - Call your local BRP dealership
