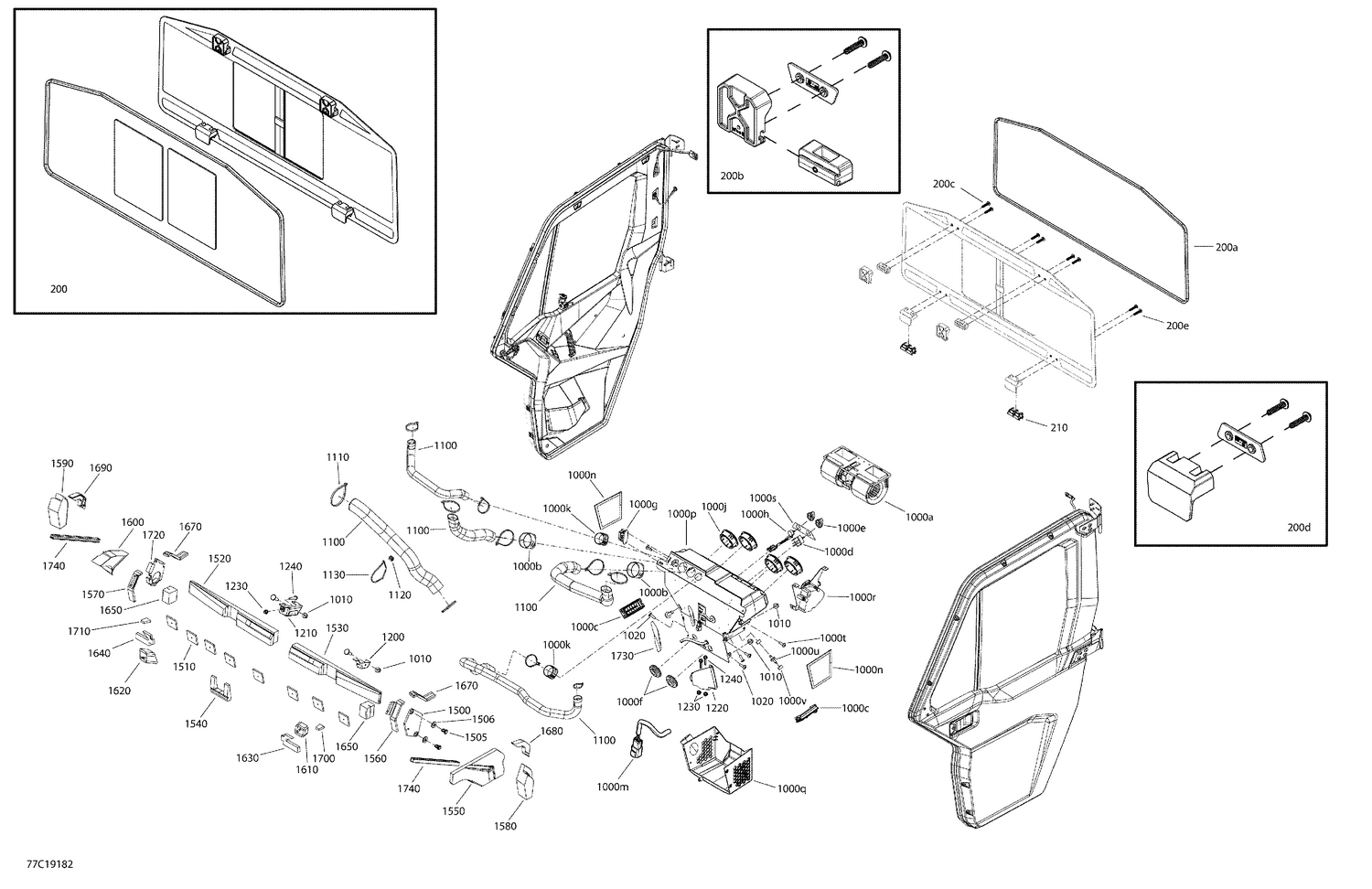

09- Enclosure Cab - HD10 - XT CAB - North America - Rear Window & Dash Section
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 705800054 | Outer Seal This part replaces 219704384. |
| 200c | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 200e | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 210 | 705800317 | Stopper Rubber |
| 1000a | 520001536 | Fan |
| 1000b | 520001672 | Duct Adaptor |
| 1000c | 520001673 | Rectangular Grid |
| 1000d | 705800585 | Potentiometer Switch Knob Ass'y This part replaces 520001674. |
| 1000e | 705800585 | Potentiometer Switch Knob Ass'y This part replaces 520001675. |
| 1000f | 520001676 | Grommet 5/8'' |
| 1000g | 520001679 | FUSE BOX - Call your local BRP dealership |
| 1000h | 705800585 | Potentiometer Switch Knob Ass'y This part replaces 520001680. |
| 1000j | 520001681 | Round Grid |
| 1000k | 520001682 | Duct Adaptor |
| 1000m | 520001683 | WIRING HARNESS - Call your local BRP dealership |
| 1000n | 520001537 | Filter |
| 1000p | 520001546 | CONSOLE - Call your local BRP dealership |
| 1000q | 520001626 | Lower Cover |
| 1000r | 520001685 | Valve Ass'y 5/8'' |
| 1000s | 520001686 | HVAC OVERLAY - Call your local BRP dealership |
| 1000t | 250000722 | Torx Screw M6 X 20 |
| 1000u | 275500398 | Check Valve |
| 1000v | 293650047 | Crimp Clamp, 15.3-706R |
| 1010 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 1110 | 293750008 | Tie Wrap 368 mm |
| 1120 | 293750062 | Tie Rap Clip |
| 1130 | 293750008 | Tie Wrap 368 mm |
| 1200 | 520001619 | LH Support |
| 1210 | 520001621 | RH Support |
| 1220 | 520001623 | Central Support |
| 1230 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1240 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 1500 | 705800260 | Insulating Foam |
| 1505 | 293150230 | Tuflok Plastic Rivet |
| 1506 | 292001663 | Flat Washer 8 mm, Nylon |
| 1510 | 705800261 | Insulating Foam |
| 1520 | 705800262 | Insulating Foam |
| 1530 | 705800263 | Insulating Foam |
| 1540 | 705800264 | Insulating Foam |
| 1550 | 705800265 | Insulating Foam |
| 1560 | 705800266 | LH Insulating Foam |
| 1570 | 705800267 | RH Insulating Foam |
| 1580 | 705800268 | Insulating Foam |
| 1590 | 705800269 | Insulating Foam |
| 1600 | 705800270 | Insulating Foam |
| 1610 | 705800271 | LH Insulating Foam |
| 1620 | 705800272 | RH Insulating Foam |
| 1630 | 705800273 | Insulating Foam |
| 1640 | 705800274 | Insulating Foam |
| 1650 | 705800275 | Insulating Foam |
| 1670 | 705800277 | Insulating Foam |
| 1680 | 705800278 | LH Insulating Foam |
| 1690 | 705800279 | RH Insulating Foam |
| 1700 | 705800280 | LH Insulating Foam |
| 1710 | 705800281 | RH Insulating Foam |
| 1720 | 705800282 | Insulating Foam |
| 1730 | 704906818 | Protector Decal |
| 1740 | 219704379 | Was 293250361 Gasket |
