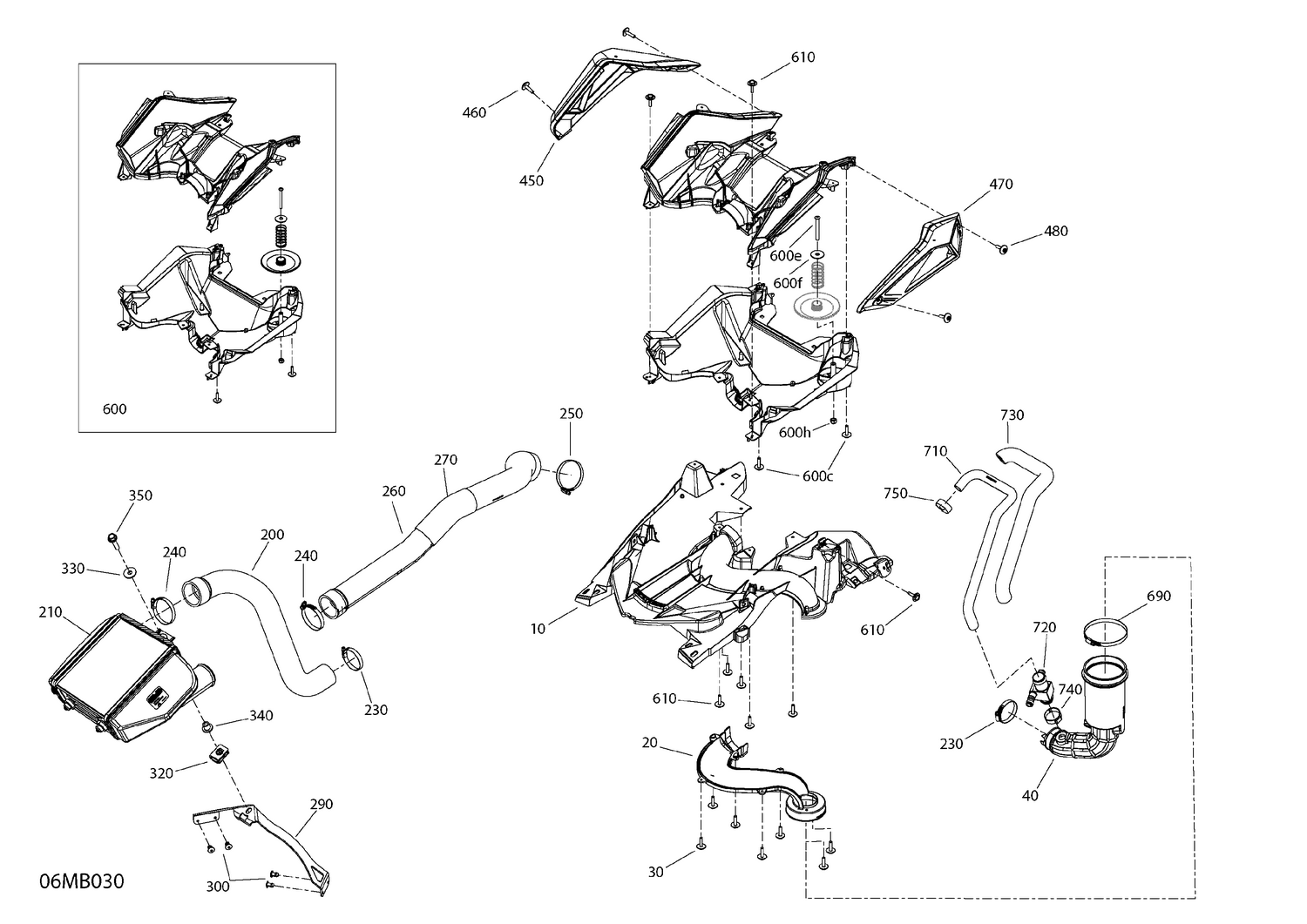

02- Engine - Air Intake
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508001077 | Multi Purpose Plate |
| 20 | 508000887 | Tube In |
| 30 | 250000725 | Screw M4 X 16 |
| 40 | 508001183 | Intake Silencer |
| 200 | 508000856 | Inlet Hose |
| 210 | 508001317 | Intercooler This part replaces 508001116. |
| 230 | 293650303 | Mounting Clamp |
| 240 | 293650302 | Mounting Clamp |
| 250 | 293650302 | Mounting Clamp |
| 260 | 508001010 | Inlet Hose |
| 270 | 508001033 | Protector Tube |
| 290 | 508000861 | Rear Support |
| 300 | 390909100 | Avex Rivet |
| 320 | 250100208 | Panel Nut M6 X 1.0 |
| 330 | 250200082 | Flat Washer |
| 340 | 293900100 | Bushing |
| 350 | 207562544 | Hex. Flange Screw M6 X 25 |
| 450 | 508000906 | RH Air Filter (Nitex Mesh) |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508000905 | LH Air Filter (Nitex Mesh) |
| 480 | 250000889 | Screw M4 X 16 |
| 600c | 250000725 | Screw M4 X 16 |
| 600e | 205444056 | Socket Head Screw M4 X 40 |
| 600f | 224060201 | Flat Washer |
| 600h | 232541414 | Elastic Stop Nut M4 |
| 610 | 250000725 | Screw M4 X 16 |
| 690 | 514052924 | Norma Clamp |
| 710 | 508000862 | Vent Hose |
| 720 | 508000946 | Heated Breather |
| 730 | 508000907 | Insulating Tube |
| 740 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
