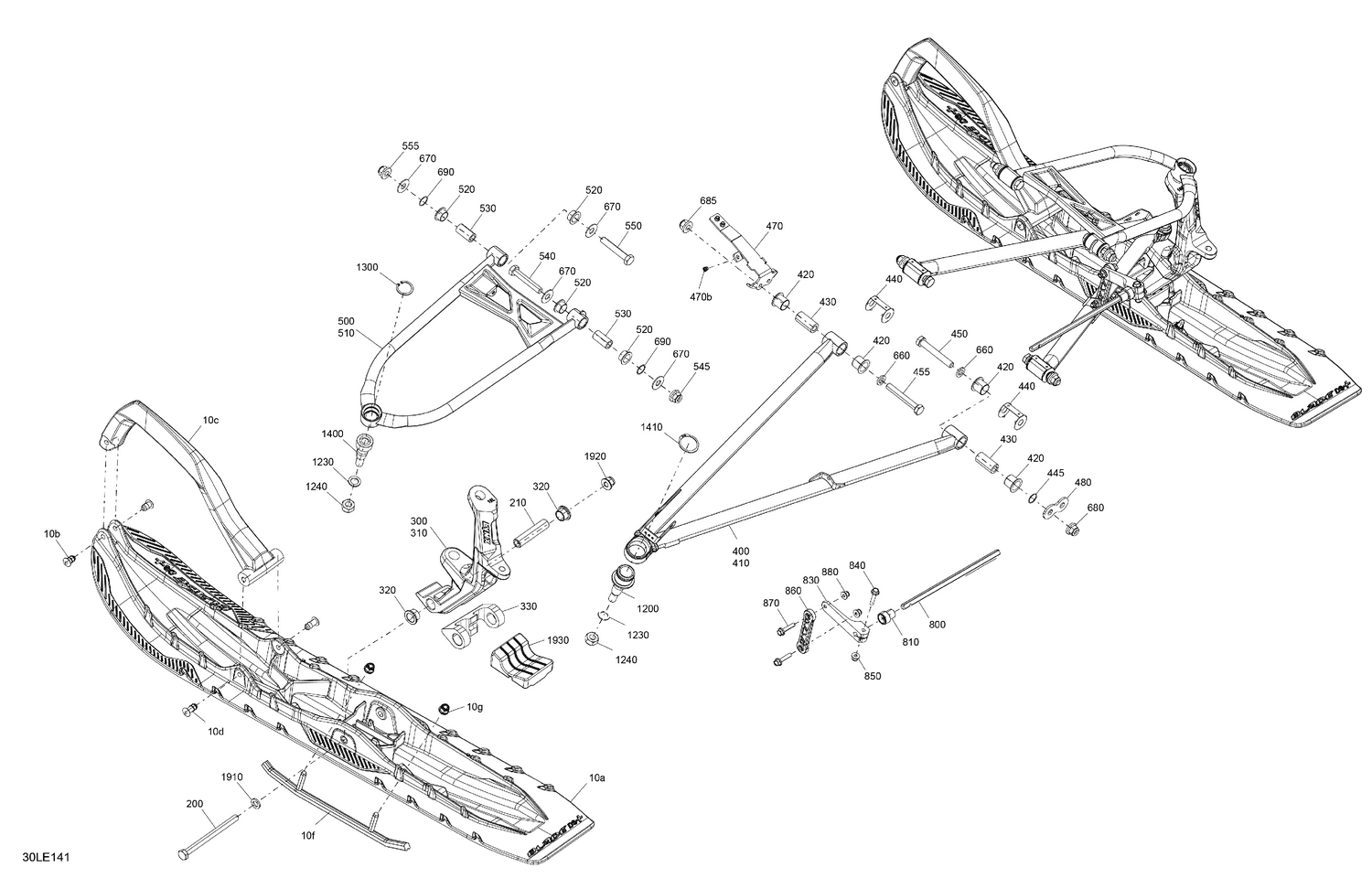

05- Suspension - Front
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 505074691 | Ski Blade |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505073513 | Orange, Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10f | 860203079 | Carbide Runner Square Kit This part replaces 505075652. |
| 10g | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073691 | Ski Axle |
| 300 | 505074553 | LH Anodized Ski Leg |
| 310 | 505074554 | RH Anodized Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 330 | 505073779 | Leg Stopper |
| 400 | 505074494 | LH Lower Arm |
| 410 | 505074495 | RH Lower Arm |
| 420 | 505073330 | Bushing |
| 430 | 505075323 | Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 455 | 250001024 | Screw Hex. M10 X 70 |
| 470b | 605636003 | Clinch Nut M6 Hexsert |
| 480 | 505073844 | Plate |
| 500 | 505073724 | LH Upper Arm 42 |
| 510 | 505073728 | RH Upper Arm 42 |
| 520 | 505073329 | Bushing |
| 530 | 505075322 | Bushing |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 545 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 555 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 685 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 800 | 505075686 | Black, Stabilizer Bar |
| 810 | 505072064 | Bushing |
| 830 | 505073731 | Stabilisator Lever |
| 840 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 850 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 860 | 505072204 | Sway Bar Double Joint Link |
| 870 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 880 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 1200 | 505074009 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
| 1410 | 293370098 | Snap Ring |
| 1910 | 503192496 | Washer |
| 1920 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
