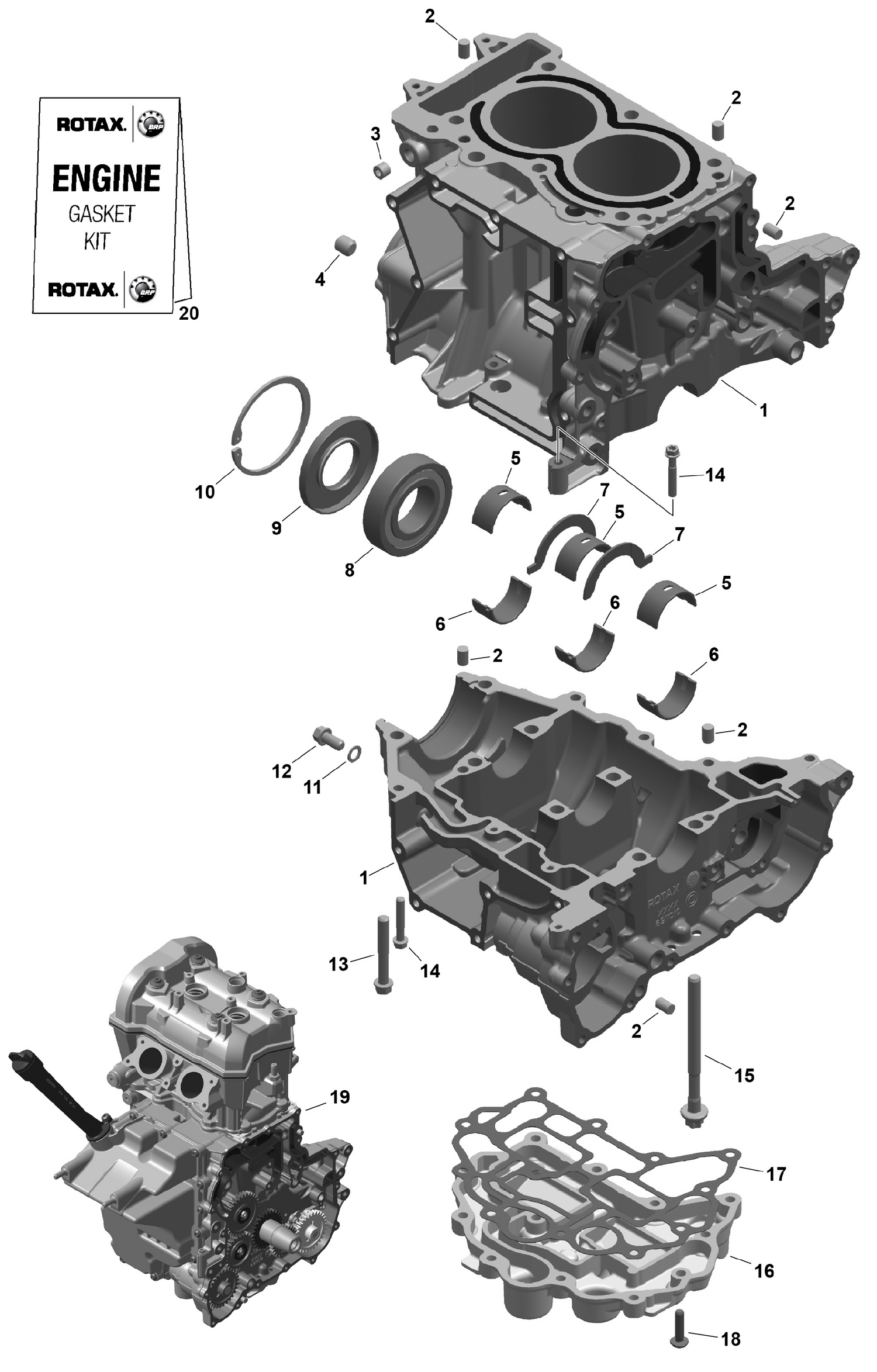

01- ROTAX - Crankcase
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641323 | Plug Screw M10 X 1 |
| 4 | 420840500 | Threaded Pin M12X1,5 - MK |
| 5 | 420933180 | Plain Bearing Half 36X40X19 |
| 6 | 420933185 | Plain Bearing Half 36X40X19 |
| 7 | 420933140 | Ring Half 40,5X60X1,95 |
| 8 | 420832232 | Ball Bearing |
| 10 | 420845790 | Retaining Ring 72x2,5 DIN 472 |
| 12 | 420440852 | Flanged Torx Screw M8 X 16 |
| 13 | 420641213 | Flanged Torx Screw M8 X 55 This part replaces 420440397. |
| 14 | 420440274 | Flanged Torx Screw M6 X 35 |
| 15 | 420940945 | Flanged Torx Screw M9 X 113 |
| 16 | 420911124 | Oil Sump |
| 18 | 420841549 | Flanged Torx Screw M6 X 25 |
| 19 | 420060203 | Long Block 602 |
