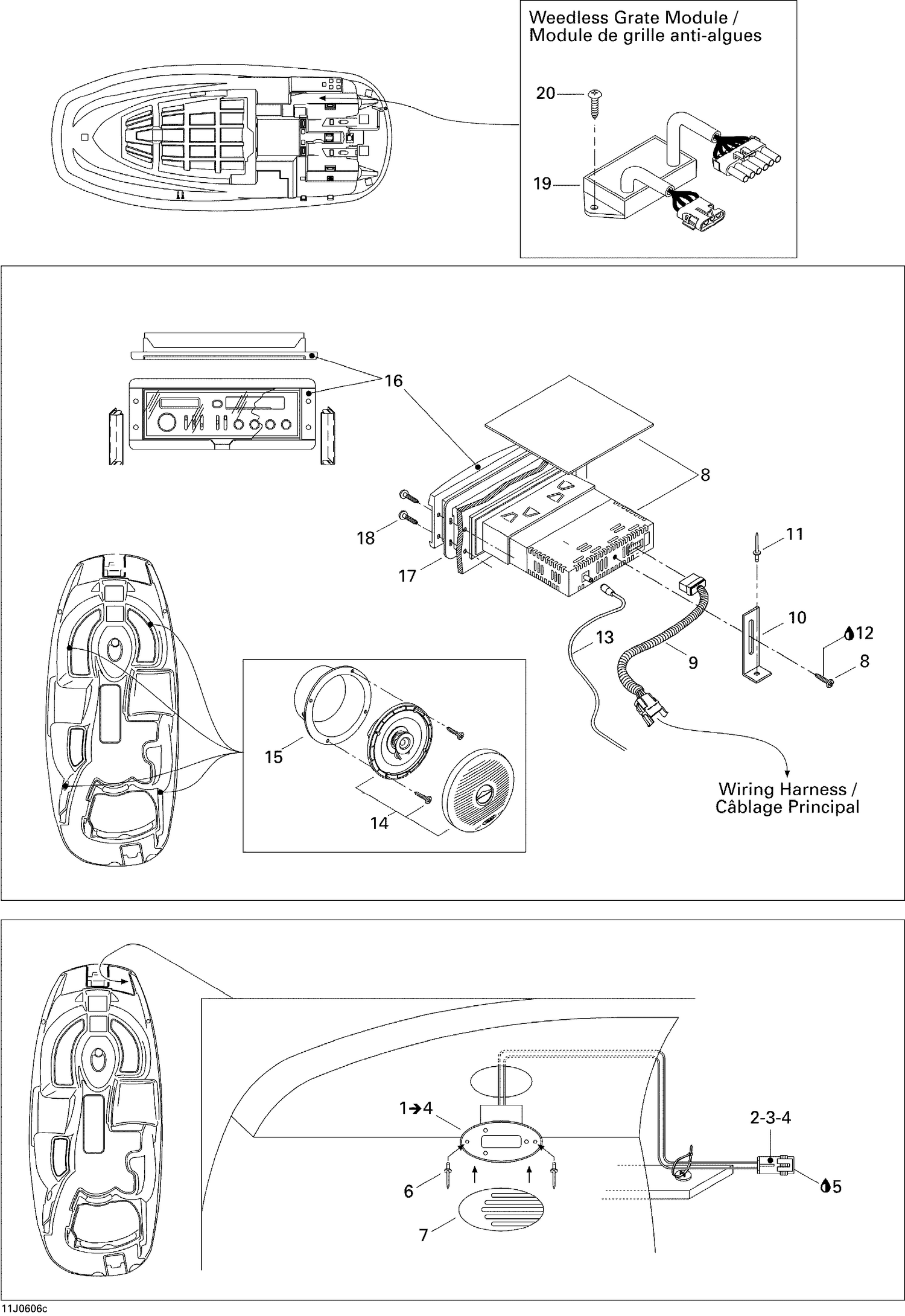

10- Electrical Accessories 3
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 409209500 | Female Housing, 2 Circuits |
| 3 | 278001014 | Female Terminal |
| 4 | 278001013 | Wire Seal |
| 5 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 6 | 293150005 | Pop Rivet 3/16" |
| 7 | 204470548 | Horn Cover |
| 8 | 204471056 | Stereo Compact Disk Player/radio |
| 9 | 204470930 | Stereo Adaptor Harness |
| 11 | 204000081 | Pop Rivet 3/16" |
| 12 | 293800060 | Loctite 243, 10 ml |
| 13 | 204470931 | Antenna |
| 14 | 204471059 | Speaker, White |
| 15 | 204470982 | SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 16 | 204470266 | Radio Cover |
| 17 | 204470257 | RADIO COVER GASKET - Call your local BRP dealership |
| 18 | 209641960 | PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 19 | 204470887 | Weedless Grade Module |
