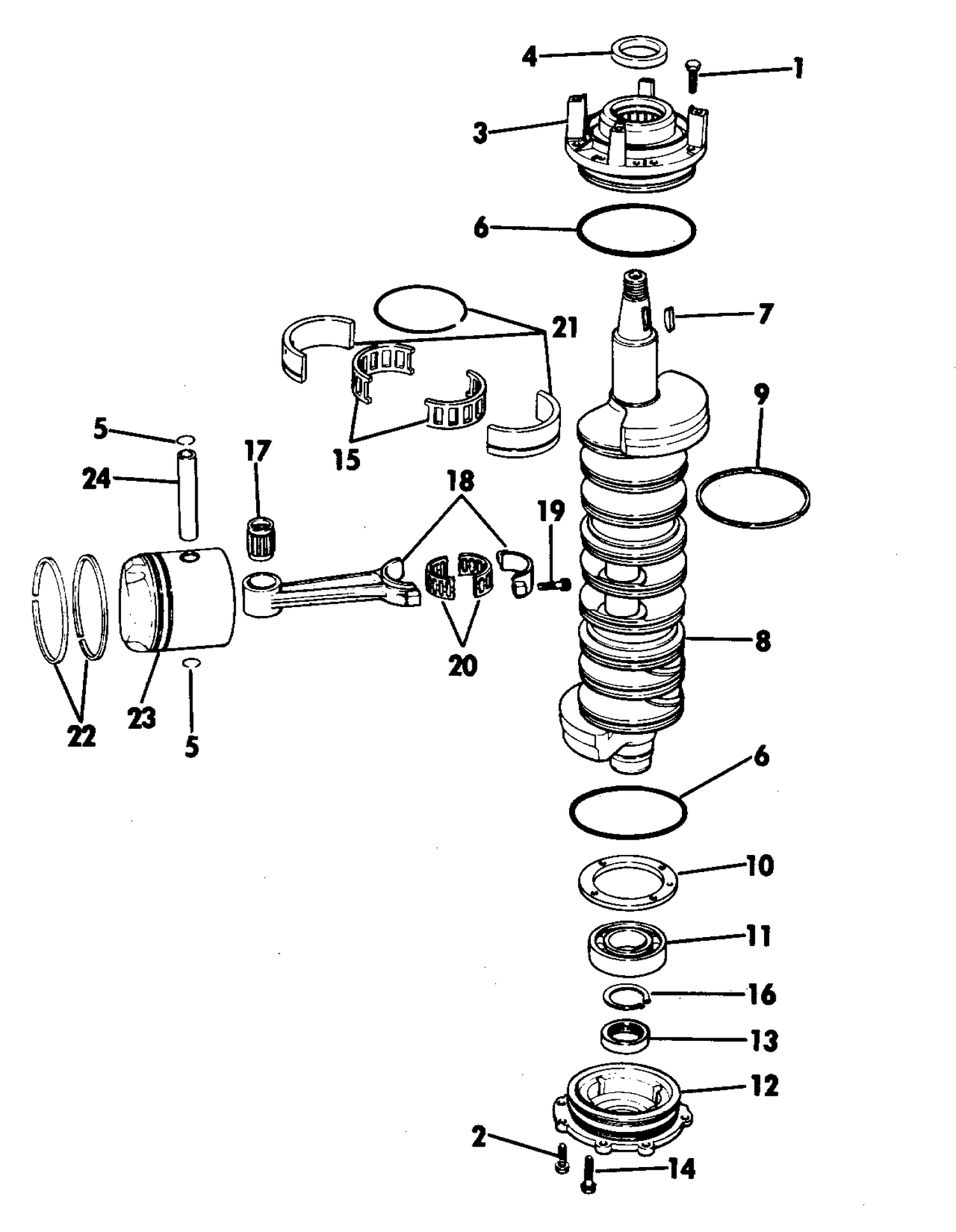

| Ref | Part Number | Description |
|---|
| 1 |
0306049 |
SCREW |
| 3 |
0387432 |
CRANKCASE HEAD BRG. ASSY. |
| 5 |
0317831 |
Circlip |
| 6 |
0305123 |
O RING |
| 8 |
0388306 |
CRANKSHAFT ASSY |
| 9 |
0319244 |
JOINT ANNULAIRE |
| 10 |
0317762 |
PALTE,Lower bearing |
| 11 |
0385503 |
BEARING , Ball |
| 12 |
0396610 |
CRANKCASE HEAD ASSY. This part replaces 0385502. |
| 14 |
0317763 |
SCREW & SEAL, Plate |
| 15 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 16 |
0308213 |
RETAINING RING |
| 17 |
0395627 |
BEARING & RETAINER This part replaces 0388595. |
| 18 |
5006383 |
CONNECTING ROD This part replaces 0387831. |
| 20 |
0387787 |
BEARING Assembly, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0394930 |
RING SET, Standard This part replaces 0385661. |
| 22 |
0396504 |
RING SET, .030 O.S This part replaces 0385663. |
| 22 |
0439001 |
RING SET, 0.020 in. O.S. This part replaces 0385662. |
| 23 |
0388672 |
PISTON, . 020 o.s., 115, 140 HP |
| 23 |
5006658 |
Pstn&Ring Kit This part replaces 0388671. |
| 23 |
5006669 |
Pstn&Ring Kit .030 This part replaces 0388673. |
