Home / Volvo Penta / XDP-D3

XDP-D3

Product ID: XDPD3 · Filter: XDPD3

Sections (12)

Maintenance Parts, XDP
General, Engine with Mounting and Equipment

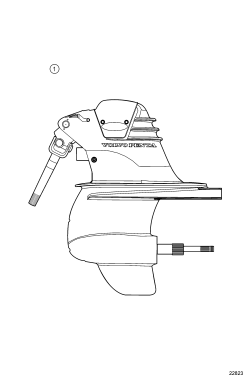

Drive Unit, Complete
Marine Propulsion
Duoprop Propeller, Aluminum, D Series
Marine Propulsion
Duoprop Propeller, Stainless Steel, F Series
Marine Propulsion

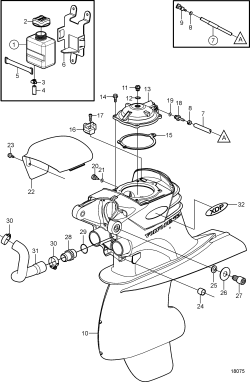

Housing and Center Tube
Marine Propulsion

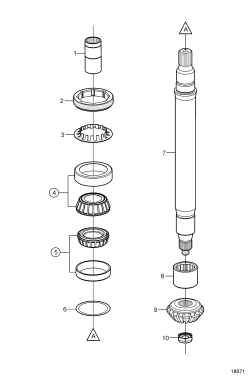

Lower Vertical Shaft
Marine Propulsion

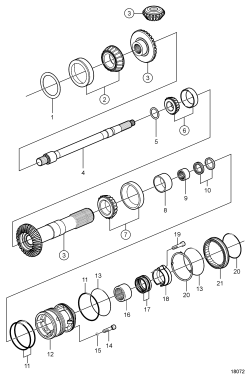

Propeller Shaft and Bearing Housing
Marine Propulsion

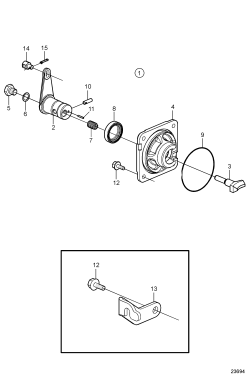

Shift Mechanism
Marine Propulsion

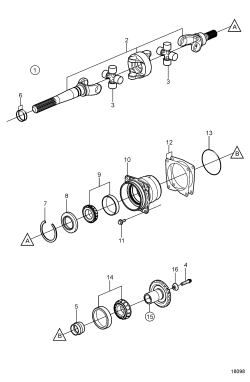

U-Joint and Bearing Carrier
Marine Propulsion

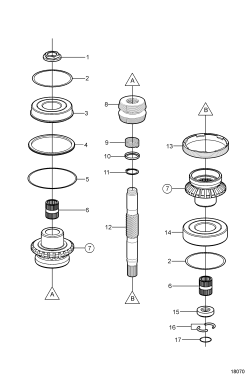

Upper Vertical Shaft
Marine Propulsion
X Series Propeller
Marine Propulsion
Repair Kits
Miscellaneous, Repair Kits

Spare parts (238)

Part #HeadingDescriptionCategory
190187 O-ring
925093 O-ring
941503 O-ring
942791 O-ring
942978 O-ring
946438 O-ring
949656 O-ring
949974 O-ring
955981 O-ring
11028 ball bearing
181013 ball bearing
3859037 bearing
3859038 bearing
3861590 blade
3861591 blade
3861592 blade
3861593 blade
3861594 blade
3861596 blade
3861597 blade
3861598 blade
3861599 blade
3861601 blade
942871 clevis pin
3861691 decal
982283 flange screw
982285 flange screw
963684 hex. socket screw
963689 hex. socket screw
184683 inner ring
183272 needle roller bearing
183859 needle roller bushing
3861600 propeller
184691 roller bearing
184765 roller bearing
191834 shim
191835 shim
191837 shim
951078 snap ring
979874 split pin
973593 spring pin
3862797 tool
982328 washer
3809441 transmission oil Chemical Products
3809442 transmission oil Chemical Products
3809443 transmission oil Chemical Products
3860413 hose clamp Fuel System
3851420 Duoprop Type D Marine Propulsion
3851421 Duoprop Type D Marine Propulsion
3851422 Duoprop Type D Marine Propulsion
3851423 Duoprop Type D Marine Propulsion
3851440 Duoprop Type D Marine Propulsion
3851441 Duoprop Type D Marine Propulsion
3851442 Duoprop Type D Marine Propulsion
3851443 Duoprop Type D Marine Propulsion
3856345 Duoprop Type D Marine Propulsion
3856346 Duoprop Type D Marine Propulsion
3856347 Duoprop Type D Marine Propulsion
3856355 Duoprop Type D Marine Propulsion
3856356 Duoprop Type D Marine Propulsion
3856357 Duoprop Type D Marine Propulsion
3851464 Duoprop Type F Marine Propulsion
3851465 Duoprop Type F Marine Propulsion
3851466 Duoprop Type F Marine Propulsion
3851468 Duoprop Type F Marine Propulsion
3851479 Duoprop Type F Marine Propulsion
3851494 Duoprop Type F Marine Propulsion
3851495 Duoprop Type F Marine Propulsion
3851497 Duoprop Type F Marine Propulsion
3851499 Duoprop Type F Marine Propulsion
3857559 Duoprop Type F Marine Propulsion
3857563 Duoprop Type F Marine Propulsion
3857564 Duoprop Type F Marine Propulsion
3852045 O-ring Marine Propulsion
3852537 O-ring Marine Propulsion
3852865 O-ring Marine Propulsion
3855081 O-ring Marine Propulsion
3861634 anode Marine Propulsion
3861635 anode Marine Propulsion
3861636 anode Marine Propulsion
872793 anode Marine Propulsion
23986752 anode kit Marine Propulsion
23986753 anode kit Marine Propulsion
3850852 bearing Marine Propulsion
3850853 bearing Marine Propulsion
3852390 bearing Marine Propulsion
3860107 bearing Marine Propulsion
3860191 bearing carrier Marine Propulsion
3860218 bearing housing Marine Propulsion
21277185 bellows Marine Propulsion
3885871 bellows Marine Propulsion
3809535 bracket Marine Propulsion
3862139 bushing Marine Propulsion
3861604 cap Marine Propulsion
3861605 cap Marine Propulsion
3862109 cap Marine Propulsion
3860414 cover Marine Propulsion
3862106 cover Marine Propulsion
3852329 cube Marine Propulsion
3856502 dog Marine Propulsion
3589500 exhaust outlet Marine Propulsion
3862075 fitting Marine Propulsion
3862116 fitting Marine Propulsion
3862166 fitting Marine Propulsion
3862105 gasket Marine Propulsion
3860904 gear set Marine Propulsion
3861861 gear set Marine Propulsion
3861797 hex. socket screw Marine Propulsion
3862068 hose Marine Propulsion
3862054 housing Marine Propulsion
3862077 housing Marine Propulsion
21130692 kit Marine Propulsion
21130693 kit Marine Propulsion
3807952 kit Marine Propulsion
3807953 kit Marine Propulsion
3807954 kit Marine Propulsion
3807955 kit Marine Propulsion
3807956 kit Marine Propulsion
3807957 kit Marine Propulsion
3807958 kit Marine Propulsion
3807959 kit Marine Propulsion
3859049 kit Marine Propulsion
3859050 kit Marine Propulsion
3860842 kit Marine Propulsion
3852295 locking clip Marine Propulsion
3861633 magnesium anode Marine Propulsion
3869151 module Marine Propulsion
3869152 module Marine Propulsion
3869153 module Marine Propulsion
3869299 module Marine Propulsion
3852301 nut Marine Propulsion
3852302 nut Marine Propulsion
3852303 nut Marine Propulsion
3852375 nut Marine Propulsion
3862098 nut Marine Propulsion
852212 nut Marine Propulsion
3862289 oil line Marine Propulsion
3862290 oil line Marine Propulsion
3854539 plug Marine Propulsion
3861510 plug Marine Propulsion
3807932 propeller Marine Propulsion
3807933 propeller Marine Propulsion
3807937 propeller Marine Propulsion
3807938 propeller Marine Propulsion
3807941 propeller Marine Propulsion
3807942 propeller Marine Propulsion
3807945 propeller Marine Propulsion
3807946 propeller Marine Propulsion
3807949 propeller Marine Propulsion
3851424 propeller Marine Propulsion
3851444 propeller Marine Propulsion
3851480 propeller Marine Propulsion
3851481 propeller Marine Propulsion
3851482 propeller Marine Propulsion
3851483 propeller Marine Propulsion
3851484 propeller Marine Propulsion
3856365 propeller Marine Propulsion
3856366 propeller Marine Propulsion
3856367 propeller Marine Propulsion
3861595 propeller Marine Propulsion
3861614 propeller Marine Propulsion
3861623 propeller Marine Propulsion
3861624 propeller Marine Propulsion
888654 propeller Marine Propulsion
888655 propeller Marine Propulsion
889562 propeller Marine Propulsion
889564 propeller Marine Propulsion
888651 propeller blade Marine Propulsion
888652 propeller blade Marine Propulsion
889557 propeller blade Marine Propulsion
889559 propeller blade Marine Propulsion
21631162 propeller nut Marine Propulsion
3851341 propeller nut Marine Propulsion
3851569 propeller nut Marine Propulsion
3861794 propeller nut Marine Propulsion
3851205 propeller shaft Marine Propulsion
3862175 reservoir Marine Propulsion
3860275 retainer Marine Propulsion
3860724 retainer Marine Propulsion
3862076 retainer Marine Propulsion
3851600 ring Marine Propulsion
3860106 ring Marine Propulsion
3860203 ring Marine Propulsion
3854249 roller bearing Marine Propulsion
3854250 roller bearing Marine Propulsion
3851329 screw Marine Propulsion
3860220 screw Marine Propulsion
3852272 seal Marine Propulsion
3852548 seal Marine Propulsion
3860377 seal Marine Propulsion
3860984 seal Marine Propulsion
851407 sealing ring Marine Propulsion
853868 sealing ring Marine Propulsion
853871 sealing ring Marine Propulsion
21149534 shaft Marine Propulsion
3852292 shaft Marine Propulsion
3817326 shift mechanism Marine Propulsion
3852889 shim Marine Propulsion
3852890 shim Marine Propulsion
3852891 shim Marine Propulsion
3852892 shim Marine Propulsion
3860221 shim Marine Propulsion
3860274 shim Marine Propulsion
3860594 shim Marine Propulsion
3860595 shim Marine Propulsion
3860596 shim Marine Propulsion
3860615 shim Marine Propulsion
3860616 shim Marine Propulsion
3860617 shim Marine Propulsion
3860618 shim Marine Propulsion
3860619 shim Marine Propulsion
3860637 shim Marine Propulsion
3860638 shim Marine Propulsion
3860639 shim Marine Propulsion
3860640 shim Marine Propulsion
3860641 shim Marine Propulsion
3860648 shim Marine Propulsion
3860649 shim Marine Propulsion
3860650 shim Marine Propulsion
3860651 shim Marine Propulsion
3860652 shim Marine Propulsion
3807613 sliding sleeve Marine Propulsion
3852298 spacer Marine Propulsion
3860273 spacer ring Marine Propulsion
3862085 splined sleeve Marine Propulsion
3853376 split pin Marine Propulsion
3854480 split pin Marine Propulsion
3852296 spring Marine Propulsion
814184 spring Marine Propulsion
3862111 strap Marine Propulsion
3860725 thrust ring Marine Propulsion
3860430 washer Marine Propulsion
853026 washer Marine Propulsion
3852602 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3854978 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
853012 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982713 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3859045 split pin Steering
