8.1GiI-B

Spare parts (482)

Part #	Heading	Category
3852470	O-ring
983191	O-ring
3861501	belt
3860861	bracket
3861043	bracket
3861358	bracket
3861408	bracket
3861526	bracket
3861606	bracket
3852476	cap
3852170	clamp
3861960	compression fitting
3862000	compression fitting
3852097	connector
3862898	contact plate
3862899	contact plate
3862900	contact plate
950004	cross recessed screw
3841580	cube
3858552	decal
3861504	decal
3861895	decal
3861896	decal
7741899	decal
191114	elbow nipple
3862940	fitting
948645	flange lock nut
945408	flange nut
946175	flange nut
971095	flange nut
976432	flange nut
981124	flange nut
945444	flange screw
946173	flange screw
946329	flange screw
946440	flange screw
946441	flange screw
946472	flange screw
946544	flange screw
946752	flange screw
948893	flange screw
965186	flange screw
965187	flange screw
965189	flange screw
965191	flange screw
965223	flange screw
967949	flange screw
969445	flange screw
973519	flange screw
974324	flange screw
975101	flange screw
975104	flange screw
982702	flange screw
983966	fuse
3861042	gasket
3861453	gasket
3862079	gasket
940119	hexagon nut
955860	hexagon nut
971074	hexagon nut
3853620	hexagon screw
955246	hexagon screw
955556	hexagon screw
970947	hexagon screw
3860908	hose
3860910	hose
3860911	hose
3860912	hose
3860913	hose
3860914	hose
3860915	hose
3860949	hose
3860953	hose
3860955	hose
3860957	hose
3861411	hose
3862890	kit
950355	lock nut
3852079	nut
3860247	oil cooler
3861479	oil cooler
3861441	oil hose
3861442	oil hose
3861443	oil hose
3861669	plug
943589	plug
3850115	retainer
3587445	screw
3847697	screw
3858994	screw
416033	sealing ring
969476	six point socket screw
941908	spring washer
941914	spring washer
953517	stud
953519	stud
953531	stud
953540	stud
982676	stud
982974	stud
983613	stud
940147	toothed washer
982679	toothed washer
3852144	washer
940191	washer
941670	washer
955902	washer
976945	washer
980933	washer
3860469	water pipe

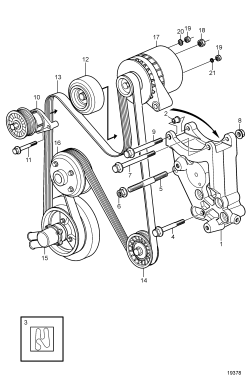

3860798	alternator	Alternator, Charging, Electric Motor, Electric Drives
3861011	bolt	Alternator, Charging, Electric Motor, Electric Drives
3861436	bracket	Alternator, Charging, Electric Motor, Electric Drives
3854579	bushing	Alternator, Charging, Electric Motor, Electric Drives
3853399	flange screw	Alternator, Charging, Electric Motor, Electric Drives
3860201	idler pulley	Alternator, Charging, Electric Motor, Electric Drives
3852064	nut	Alternator, Charging, Electric Motor, Electric Drives
3852099	nut	Alternator, Charging, Electric Motor, Electric Drives
3861017	nut	Alternator, Charging, Electric Motor, Electric Drives
3861018	stud	Alternator, Charging, Electric Motor, Electric Drives
3854164	automatic fuse	Cables and Fuses
3860853	bracket	Cables and Fuses
3860966	bracket	Cables and Fuses
3852434	clamp	Cables and Fuses
3855178	connector	Cables and Fuses
8072808	cover	Cables and Fuses
3861373	fuse	Cables and Fuses
3861374	fuse	Cables and Fuses
3860965	fuse box	Cables and Fuses
3852825	retainer	Cables and Fuses
3852208	screw	Cables and Fuses

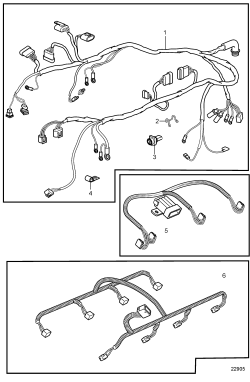

3862489	wiring harness	Cables and Fuses
3862784	wiring harness	Cables and Fuses
3863052	wiring harness	Cables and Fuses
1141647	coolant	Chemical Products
1141674	coolant	Chemical Products
21646481	coolant	Chemical Products
41103102	neutralizing agent	Chemical Products
41103103	neutralizing agent	Chemical Products
3840002	oil	Chemical Products
3840003	oil	Chemical Products
3840005	oil	Chemical Products

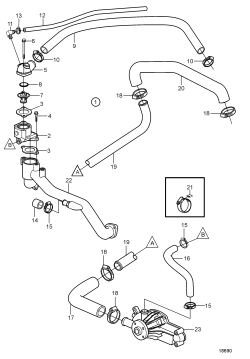

3862102	Hot water outlet	Cooling System
3852071	O-ring	Cooling System
3858938	O-ring	Cooling System
3861000	O-ring	Cooling System
3855531	T-pipe	Cooling System
3863068	T-pipe	Cooling System
3860909	adapter	Cooling System
3851396	bar	Cooling System
3859071	bolt	Cooling System
3861245	bolt	Cooling System
3861246	bolt	Cooling System
3861254	bolt	Cooling System
3851395	brace	Cooling System
3857422	bracket	Cooling System
3861346	bushing	Cooling System
3858990	cap	Cooling System
3861341	circulation pump	Cooling System
3858992	cover	Cooling System
3860585	elbow nipple	Cooling System

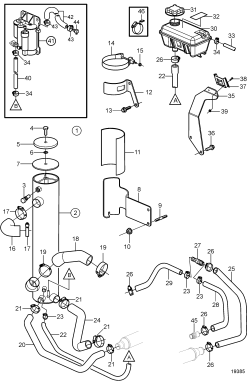

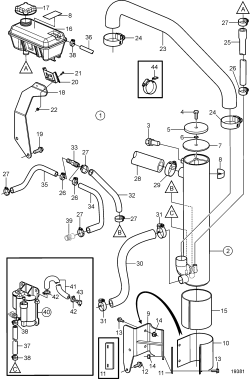

861105	expansion tank	Cooling System
3862126	fitting	Cooling System
3853401	flange screw	Cooling System
3852111	gasket	Cooling System
3858993	gasket	Cooling System
3861285	gasket	Cooling System
3861286	gasket	Cooling System

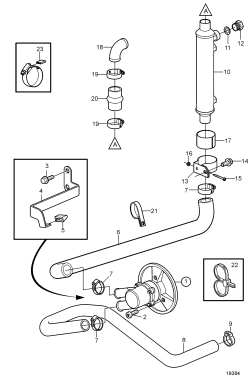

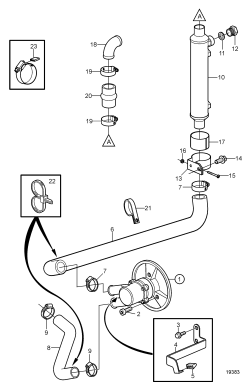

3860907	heat exchanger	Cooling System
3861407	heat exchanger	Cooling System
3858577	hose	Cooling System
3858991	hose	Cooling System
3860021	hose	Cooling System
3860297	hose	Cooling System
3860589	hose	Cooling System
3860847	hose	Cooling System
3860848	hose	Cooling System
3860849	hose	Cooling System
3860850	hose	Cooling System
3860922	hose	Cooling System
3861298	hose	Cooling System
3861400	hose	Cooling System
3861401	hose	Cooling System
3861402	hose	Cooling System
3861403	hose	Cooling System
3861425	hose	Cooling System
3861433	hose	Cooling System
3861916	hose	Cooling System
3861917	hose	Cooling System
3858551	hose clamp	Cooling System
3861918	hose nipple	Cooling System
3858115	housing	Cooling System
3860872	housing	Cooling System
3860987	housing	Cooling System
21213660	impeller kit	Cooling System
21951348	impeller kit	Cooling System
3862567	impeller kit	Cooling System
3861431	kit	Cooling System
3861440	kit	Cooling System
41103101	neutra salt kit	Cooling System
3861672	nipple	Cooling System
3861438	pipe	Cooling System
3861607	pipe elbow	Cooling System
3850802	plug	Cooling System
3850999	plug	Cooling System
1674083	pressure cap	Cooling System
3861313	pulley	Cooling System
3812695	pump	Cooling System
3862484	pump	Cooling System
22125080	screw kit	Cooling System
827247	sealing ring	Cooling System
21214601	seawater pump	Cooling System
3860797	stay	Cooling System
3857954	stop lug	Cooling System
3853983	thermostat	Cooling System
3856961	thermostat	Cooling System
3851384	thermostat housing	Cooling System
3860977	thermostat housing	Cooling System
3861410	thermostat housing	Cooling System
3831426	thermostat kit	Cooling System
3861308	tube	Cooling System
3853674	O-ring	Engine
3861379	O-ring	Engine
3861274	absorber	Engine
3859079	baffle	Engine
3861232	ball	Engine
3856881	bearing kit	Engine
3861233	bearing kit	Engine
3859072	bolt	Engine
3859076	bolt	Engine
3861244	bolt	Engine
3861247	bolt	Engine
3861248	bolt	Engine
3861251	bolt	Engine
3861252	bolt	Engine
3861253	bolt	Engine
3861255	bolt	Engine
3861256	bolt	Engine
3861263	bolt	Engine
3861264	bolt	Engine
3860921	bracket	Engine
3861265	camshaft	Engine
3855977	cap	Engine
3857681	cap	Engine
3861332	chain	Engine
3861329	chain gear	Engine
3853348	core plug	Engine
3861289	core plug	Engine
857259	cover plate	Engine

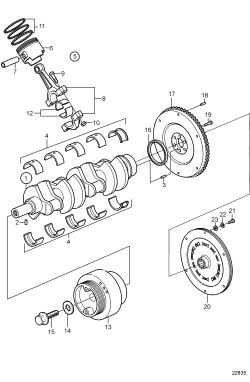

3861271	crankshaft	Engine
3861272	cylinder head	Engine
3861273	cylinder head	Engine
3861283	cylinder head gasket	Engine
3861284	cylinder head gasket	Engine
3861668	decal	Engine
3861275	deflector	Engine
841247	dowel	Engine
3858471	engine anchorage	Engine
3861336	exhaust valve	Engine
3861337	exhaust valve	Engine
3861338	exhaust valve	Engine
3855722	fitting	Engine
8277002	flange screw	Engine
3861362	flywheel	Engine

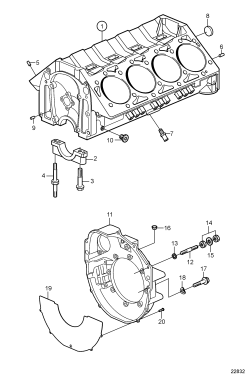

841056	flywheel housing	Engine
3861281	gasket	Engine
3861282	gasket	Engine
3861287	gasket	Engine
3861288	gasket	Engine
3856000	guide	Engine
3861294	guide	Engine
3861299	hose	Engine
3861235	hose connection	Engine
3861237	inlet valve	Engine
3861257	inlet valve	Engine
3861339	inlet valve	Engine
3860920	lifting eye	Engine
3861306	locating pin	Engine
3861307	locating pin	Engine
3861236	main bearing kit	Engine
3853134	nut	Engine
3853273	nut	Engine
3853649	nut	Engine
3859077	nut	Engine
3861302	nut	Engine
3861413	overhaul gasket kit	Engine
3861414	overhaul gasket kit	Engine
3855972	pin	Engine
3856001	pin	Engine
3861303	pin	Engine
3861394	piston kit	Engine
3861395	piston kit	Engine
3861312	piston ring	Engine
3861311	piston ring kit	Engine
3861009	pulley	Engine
3861314	push rod	Engine
3861315	push rod	Engine
3855998	retainer	Engine
3855999	retainer	Engine
3861316	rocker arm	Engine
3852426	seal	Engine
3861318	seal	Engine
3861319	seal	Engine
3862896	shortblock	Engine
3859094	sprocket	Engine
3861330	stud	Engine
3861331	stud	Engine

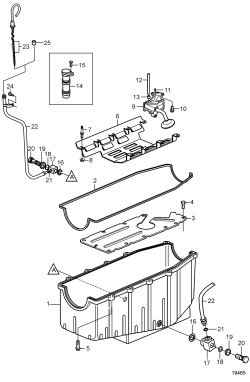

3861304	sump	Engine
3852002	tab washer	Engine
3855987	tappet	Engine
3861010	tensioner	Engine
3861269	timing gear cover	Engine
3859081	tube	Engine
3860869	tube	Engine
3861608	tube	Engine
3855988	valve	Engine
3853351	valve cotter	Engine
3861334	valve cover	Engine
3861335	valve spring	Engine
3861317	valve stem seal	Engine
3860981	vibration damper	Engine
3851981	washer	Engine
3861340	washer	Engine
3850941	adapter	Engine Controls
3852019	retainer	Engine Controls
819068	washer	Engine Controls

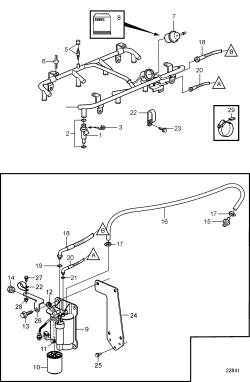

3850423	O-ring	Fuel System
3850424	O-ring	Fuel System
3858054	O-ring	Fuel System
3850266	anchor	Fuel System
3860857	bracket	Fuel System
3860952	bracket	Fuel System
3857816	bushing	Fuel System
3860412	clamp	Fuel System
3853597	elbow	Fuel System
3852115	flange screw	Fuel System
3847644	fuel filter	Fuel System
3862228	fuel filter	Fuel System
3861369	fuel hose	Fuel System
3861370	fuel hose	Fuel System
3861280	fuel pipe	Fuel System
3857476	gasket	Fuel System
3859005	grommet	Fuel System
3860154	hose	Fuel System
3860413	hose clamp	Fuel System
3861278	injector	Fuel System
3852009	nut retainer	Fuel System
3861279	pressure regulator	Fuel System
3853616	protective cap	Fuel System
3861355	pump	Fuel System
3861293	retainer kit	Fuel System
3852048	screw	Fuel System
3853558	screw	Fuel System
3861268	sealing kit	Fuel System
3861291	sealing kit	Fuel System
3857486	stud	Fuel System
3861320	stud	Fuel System
3857698	valve	Fuel System
3861297	wiring harness	Fuel System
3588865	fuel pump kit	Fuel Systems, Gas Operation
3861240	bolt	Ignition and Control Systems
3861258	bolt	Ignition and Control Systems
3861262	bolt	Ignition and Control Systems
3860960	bracket	Ignition and Control Systems
3861392	bracket	Ignition and Control Systems
3852218	clamp	Ignition and Control Systems
3860926	engine control module	Ignition and Control Systems
3857696	iac valve	Ignition and Control Systems
3861295	ignition cable kit	Ignition and Control Systems
3861267	ignition coil	Ignition and Control Systems
3861301	knock sensor	Ignition and Control Systems
3860290	nipple	Ignition and Control Systems
3852237	retainer	Ignition and Control Systems
3861377	retainer	Ignition and Control Systems
3857693	screw	Ignition and Control Systems
3852029	sensor	Ignition and Control Systems
3857487	sensor	Ignition and Control Systems
3859082	sensor	Ignition and Control Systems
3861321	sensor	Ignition and Control Systems
3861322	sensor	Ignition and Control Systems
3853236	spacer	Ignition and Control Systems
3861326	spark plug kit	Ignition and Control Systems
3861327	spark plug kit	Ignition and Control Systems
3850397	switch	Ignition and Control Systems
3861997	temperature sensor	Ignition and Control Systems

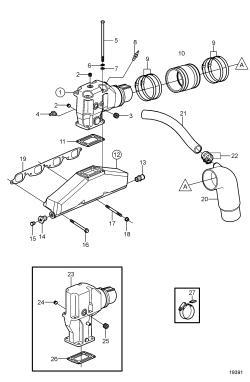

3862907	Exhaust riser	Inlet and Exhaust System
3861008	body	Inlet and Exhaust System
3861261	bolt	Inlet and Exhaust System
3861388	bracket	Inlet and Exhaust System
3860925	cover	Inlet and Exhaust System
3861001	cover	Inlet and Exhaust System
3860855	exhaust manifold	Inlet and Exhaust System
3862202	exhaust pipe	Inlet and Exhaust System
3862203	exhaust pipe	Inlet and Exhaust System
3861160	fitting	Inlet and Exhaust System
3861345	flame shield	Inlet and Exhaust System
3853154	flange screw	Inlet and Exhaust System
3850496	gasket	Inlet and Exhaust System
3852472	gasket	Inlet and Exhaust System
3861023	gasket	Inlet and Exhaust System
3863191	gasket kit	Inlet and Exhaust System
3852696	hose	Inlet and Exhaust System
3862206	hose	Inlet and Exhaust System
3853860	hose clamp	Inlet and Exhaust System
888100	inlet pipe	Inlet and Exhaust System
3861290	intake gasket	Inlet and Exhaust System
3861007	module	Inlet and Exhaust System
3861159	nipple	Inlet and Exhaust System
3861842	pipe elbow	Inlet and Exhaust System
3850740	plug	Inlet and Exhaust System
3852830	screw	Inlet and Exhaust System
3861324	shield	Inlet and Exhaust System
3852058	washer	Inlet and Exhaust System
3852610	T-nipple	Instruments
3852465	bushing	Instruments
3857532	oil pressure sensor	Instruments
3852215	sensor	Instruments
3852033	O-ring	Lubricating and Oil System
3860450	adapter	Lubricating and Oil System
3861259	bolt	Lubricating and Oil System
3853783	cap	Lubricating and Oil System
3858536	cap	Lubricating and Oil System
3861276	drive	Lubricating and Oil System
3850559	filter	Lubricating and Oil System
3850473	gauge	Lubricating and Oil System
3860055	hose	Lubricating and Oil System
3860946	hose	Lubricating and Oil System
3860947	hose	Lubricating and Oil System
3860951	housing	Lubricating and Oil System
3861305	oil pump	Lubricating and Oil System
3853199	retainer	Lubricating and Oil System
3861250	screw	Lubricating and Oil System
857518	valve	Lubricating and Oil System
3807621	anchorage	Marine Propulsion
3851906	bracket	Marine Propulsion
3861673	bracket	Marine Propulsion
3861897	decal	Marine Propulsion
3861898	decal	Marine Propulsion
3858549	elbow nipple	Marine Propulsion
3858472	engine anchorage	Marine Propulsion
3858473	engine anchorage	Marine Propulsion
3858534	engine anchorage	Marine Propulsion
3860770	engine anchorage	Marine Propulsion
3858470	engine pad	Marine Propulsion
3858503	fitting	Marine Propulsion
3850065	split pin	Marine Propulsion
3852193	washer	Marine Propulsion
955234	hexagon screw	Miscellaneous, Repair Kits
3860531	hexagon screw	Other Electrical Equipment
3860264	horn	Other Electrical Equipment
3861376	relay	Other Electrical Equipment
3862492	valve	Other Electrical Equipment
3852146	clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853312	clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853535	clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982646	clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3858532	cover	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3861999	cover	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3850422	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852098	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852602	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853780	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853786	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853791	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853794	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853813	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863438	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982643	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982644	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982645	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
983146	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3860840	brace	Starting System
3852185	nut	Starting System
3852518	nut	Starting System
3853714	nut	Starting System
855334	starter motor	Starting System
3861375	starter relay	Starting System
3862491	switch	Starting System
3852001	tab washer	Starting System
3852520	washer	Starting System
3852497	O-ring	Steering
3852126	screw	Steering

Parts Catalog

Sections (39)

Spare parts (482)
