Home / Volvo Penta / 7.4GiPEFS

7.4GiPEFS

Product ID: 74GIPEFS · Filter: 74GIPEFS

Sections (23)

Cooling
Cooling System

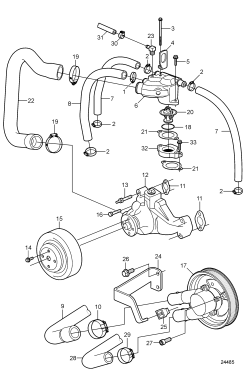

Freshwater Cooling
Cooling System

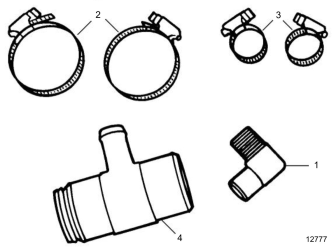

Hot Water Outlet
Cooling System

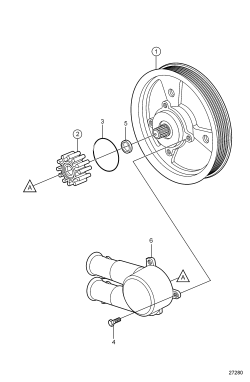

Seawater Pump Parts
Cooling System

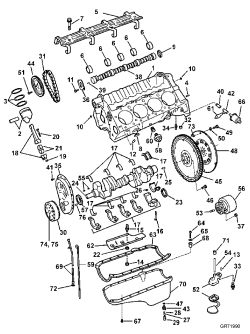

Crankcase and Oil Pan
Engine
Cylinder Head
Engine

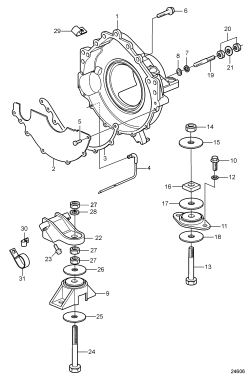

Flywheel Housing and Mounts
Engine
Idler Pulley
Engine
Lubricating System
Engine

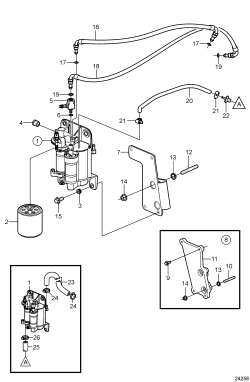

Fuel Pump
Fuel System

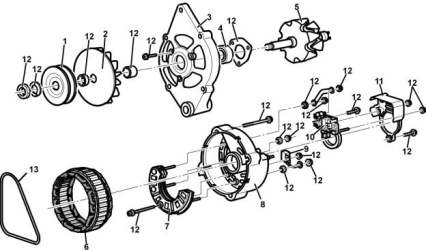

Alternator
General, Electrical System

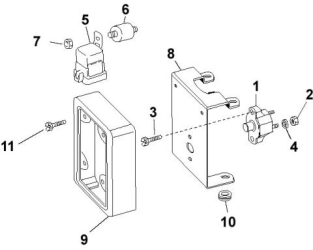

Audible Alarm System
General, Electrical System

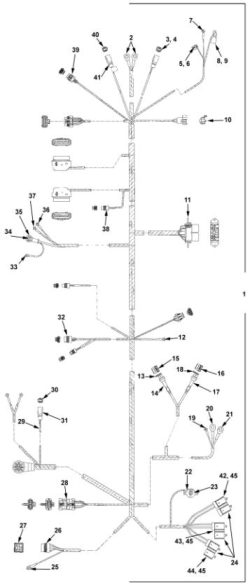

Engine Harness
General, Electrical System
Engine Harness Bracket
General, Electrical System

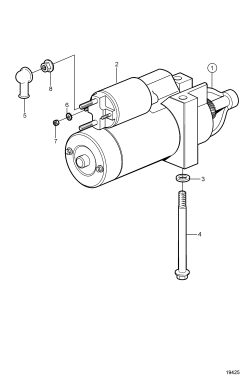

Starter
General, Electrical System

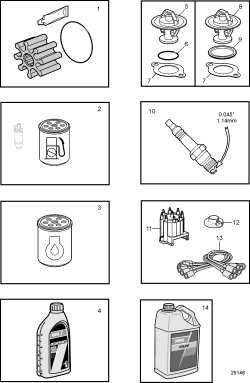

Maintenance Parts, 7.4Gi
General, Engine with Mounting and Equipment

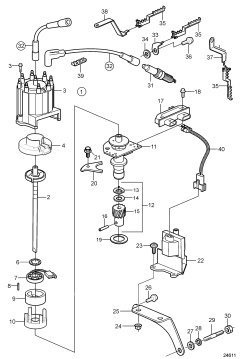

Ignition
Ignition and Control Systems
Exhaust
Inlet and Exhaust System

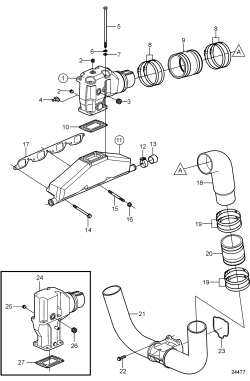

Exhaust, 3'' Risers
Inlet and Exhaust System
Intake Manifold, Lower
Inlet and Exhaust System

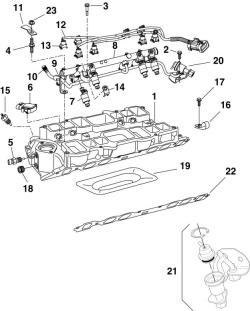

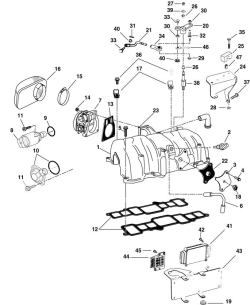

Intake Manifold, Upper
Inlet and Exhaust System
Repair Kits
Miscellaneous, Repair Kits
Steering
Steering

Spare parts (489)

Part #HeadingDescriptionCategory
3852011 O-ring
3852089 O-ring
3852470 O-ring
3854515 O-ring
3854885 O-ring
3858497 bracket
3852476 cap
3852170 clamp
3854961 clamp
3852097 connector
950004 cross recessed screw
3860087 drive belt
948645 flange lock nut
3853392 flange screw
3855472 flange screw
945444 flange screw
946173 flange screw
946329 flange screw
965175 flange screw
966329 fuse
968547 fuse
979686 fuse
941263 grommet
940119 hexagon nut
3853620 hexagon screw
955688 hexagon screw
959968 hexagon screw
942700 hose
479974 nipple
3852021 nut
3852079 nut
3860247 oil cooler
3853495 retainer
943369 rubber hose
3587445 screw
3847697 screw
416033 sealing ring
973528 spacer sleeve
942336 spring washer
3860928 stud
3852189 washer
940097 washer
980933 washer
3857065 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3857066 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3857068 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3860082 alternator Alternator, Charging, Electric Motor, Electric Drives
3860656 bearing Alternator, Charging, Electric Motor, Electric Drives
3857064 bracket Alternator, Charging, Electric Motor, Electric Drives
3860269 bracket Alternator, Charging, Electric Motor, Electric Drives
3860397 bracket Alternator, Charging, Electric Motor, Electric Drives
3860655 bracket Alternator, Charging, Electric Motor, Electric Drives
3861031 bracket Alternator, Charging, Electric Motor, Electric Drives
3860654 fan Alternator, Charging, Electric Motor, Electric Drives
3853367 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853399 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853547 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860281 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860657 kit Alternator, Charging, Electric Motor, Electric Drives
3852051 nut Alternator, Charging, Electric Motor, Electric Drives
3852064 nut Alternator, Charging, Electric Motor, Electric Drives
3852065 nut Alternator, Charging, Electric Motor, Electric Drives
3860653 pulley Alternator, Charging, Electric Motor, Electric Drives
3860658 rotor Alternator, Charging, Electric Motor, Electric Drives
3857063 stator Alternator, Charging, Electric Motor, Electric Drives
3860286 stud Alternator, Charging, Electric Motor, Electric Drives
3860476 stud Alternator, Charging, Electric Motor, Electric Drives
3858879 voltage regulator Alternator, Charging, Electric Motor, Electric Drives
3854164 automatic fuse Cables and Fuses
3852487 boot Cables and Fuses
3853681 boot Cables and Fuses
3860368 bracket Cables and Fuses
3854084 cable Cables and Fuses
3854244 cable Cables and Fuses
3857189 cable seal Cables and Fuses
3853320 cap Cables and Fuses
3852434 clamp Cables and Fuses
3853565 connector Cables and Fuses
3857142 connector Cables and Fuses
3855021 connector housing Cables and Fuses
3860369 cover Cables and Fuses
3853419 flange screw Cables and Fuses
3860455 fuse holder Cables and Fuses
3852825 retainer Cables and Fuses
3860524 retainer Cables and Fuses
3852130 rubber cap Cables and Fuses
3852208 screw Cables and Fuses
3852038 terminal Cables and Fuses
3852084 terminal Cables and Fuses
3852227 terminal Cables and Fuses
3852229 terminal Cables and Fuses
3852233 terminal Cables and Fuses
3852235 terminal Cables and Fuses
3852245 terminal Cables and Fuses
3852254 terminal Cables and Fuses
3852527 terminal Cables and Fuses
3853679 terminal Cables and Fuses
3853480 terminal casing Cables and Fuses
3860044 wiring harness Cables and Fuses
1141647 coolant Chemical Products
1141674 coolant Chemical Products
21646481 coolant Chemical Products
3840002 oil Chemical Products
3840003 oil Chemical Products
3840005 oil Chemical Products
3852071 O-ring Cooling System
3858938 O-ring Cooling System
3855719 attaching clamp Cooling System
3851595 brace Cooling System
3851394 bracket Cooling System
3856266 bracket Cooling System
3857406 bracket Cooling System
3857422 bracket Cooling System
3853598 elbow Cooling System
861105 expansion tank Cooling System
3851598 fitting Cooling System
3852053 flange screw Cooling System
3853266 flange screw Cooling System
3853326 flange screw Cooling System
3853391 flange screw Cooling System
3853401 flange screw Cooling System
3852111 gasket Cooling System
3852477 gasket Cooling System
3853361 gasket Cooling System
3851591 hose Cooling System
3851592 hose Cooling System
3852746 hose Cooling System
3854853 hose Cooling System
3857243 hose Cooling System
3858214 hose Cooling System
3858215 hose Cooling System
3860249 hose Cooling System
3860250 hose Cooling System
3860251 hose Cooling System
3860296 hose Cooling System
3860297 hose Cooling System
857500 hose Cooling System
3812303 hose clamp Cooling System
856483 hose connection Cooling System
3855018 housing Cooling System
3858115 housing Cooling System
21213660 impeller kit Cooling System
21951348 impeller kit Cooling System
3858256 impeller kit Cooling System
3862567 impeller kit Cooling System
3857957 kit Cooling System
3850802 plug Cooling System
3850999 plug Cooling System
1674083 pressure cap Cooling System
3860083 pulley Cooling System
3888078 pulley Cooling System
21427730 pump Cooling System
3812694 pump Cooling System
3862483 pump Cooling System
3853390 screw Cooling System
3857930 screw Cooling System
22125080 screw kit Cooling System
3857203 seawater pump Cooling System
3856977 spacer Cooling System
3851962 spacer nut Cooling System
3858240 stay Cooling System
3857954 stop lug Cooling System
3852507 stud Cooling System
3853983 thermostat Cooling System
3851383 thermostat housing Cooling System
3851384 thermostat housing Cooling System
3831426 thermostat kit Cooling System
875788 thermostat kit Cooling System
3855991 water pump Cooling System
3853538 O-ring Engine
3853674 O-ring Engine
3857474 absorber Engine
3855978 ball Engine
3857711 base engine Engine
3855985 bearing Engine
3856880 bearing kit Engine
3856881 bearing kit Engine
3860079 belt tensioner Engine
3852566 bolt Engine
3852595 bolt Engine
3853173 bolt Engine
3853481 bolt Engine
3853500 bolt Engine
3853501 bolt Engine
3853502 bolt Engine
3853503 bolt Engine
3853504 bolt Engine
3855997 bolt Engine
3856130 bolt Engine
3857844 bracket Engine
3852158 cable tie Engine
3855979 cap Engine
3854079 connecting rod Engine
3852100 core plug Engine
3853348 core plug Engine
3854604 cover Engine
3853509 crankshaft Engine
3853528 crankshaft seal Engine
3853511 cylinder head gasket Engine
3857209 filler neck Engine
3855112 fitting Engine
3853389 flange screw Engine
3853557 flange screw Engine
3854766 flange screw Engine
3853510 gasket Engine
3853513 gasket Engine
3857710 gasket kit Engine
3853207 gear Engine
3853516 guide Engine
3856000 guide Engine
3857477 head Engine
3858499 hexagon screw Engine
3852832 hose Engine
3857208 hose Engine
3852529 hose clamp Engine
3852831 housing Engine
3853344 locating pin Engine
3850929 lock nut Engine
3854767 lock screw Engine
3853134 nut Engine
3853273 nut Engine
3853413 nut Engine
3855990 oil pan Engine
3856875 overhaul gasket kit Engine
3856876 overhaul gasket kit Engine
3855969 pin Engine
3855972 pin Engine
3856001 pin Engine
3857481 piston Engine
3857482 piston Engine
3855039 piston ring kit Engine
3855040 piston ring kit Engine
3852611 plug Engine
3856018 push rod Engine
3856019 push rod Engine
3850822 retainer Engine
3855998 retainer Engine
3855999 retainer Engine
3855980 rocker arm Engine
3853962 rubber coupling Engine
3853805 rubber cushion Engine
3852179 screw Engine
3852421 screw Engine
3853172 screw Engine
3853358 screw Engine
3854653 screw Engine
835482 screw Engine
3860538 spring clip Engine
3856031 sprocket Engine
3850571 stud Engine
3852483 stud Engine
3853274 stud Engine
3855982 stud Engine
3860405 stud Engine
3852002 tab washer Engine
3852090 tab washer Engine
3855987 tappet Engine
3853485 valve Engine
3853487 valve Engine
3853489 valve Engine
3853490 valve Engine
3855988 valve Engine
3855992 valve Engine
3853351 valve cotter Engine
3856028 valve cover Engine
3853521 valve stem seal Engine
3855049 valve stem seal Engine
854185 vibration damper Engine
3851981 washer Engine
3852070 washer Engine
3852188 washer Engine
3852428 washer Engine
3852433 washer Engine
3853354 washer Engine
3853357 washer Engine
3853527 woodruff key Engine
3853729 nut Engine Controls
3852019 retainer Engine Controls
3850423 O-ring Fuel System
3850424 O-ring Fuel System
3850819 O-ring Fuel System
3850820 O-ring Fuel System
3853642 O-ring Fuel System
3855190 O-ring Fuel System
3855192 O-ring Fuel System
3857699 O-ring Fuel System
3858054 O-ring Fuel System
3850266 anchor Fuel System
3857472 bolt Fuel System
3852210 bracket Fuel System
3861359 bracket Fuel System
3857816 bushing Fuel System
3858053 cable kit Fuel System
3857437 clamp Fuel System
3858052 clip Fuel System
3860210 condenser Fuel System
3860608 cross recessed screw Fuel System
3853597 elbow Fuel System
3852413 filter Fuel System
3856980 flame shield Fuel System
3852115 flange screw Fuel System
3862228 fuel filter Fuel System
3857692 fuel pipe Fuel System
3860157 fuel pipe Fuel System
3860208 fuel pipe Fuel System
3860209 fuel pipe Fuel System
3860211 fuel pipe Fuel System
3857703 fuel pressure regula Fuel System
3854520 gasket Fuel System
3857476 gasket Fuel System
3852481 grommet Fuel System
3860413 hose clamp Fuel System
3857700 injector Fuel System
3854741 intermediate lever Fuel System
3861684 kit Fuel System
3856974 link Fuel System
3854744 nut Fuel System
3857679 nut Fuel System
3854743 pin Fuel System
3857490 pin Fuel System
3853616 protective cap Fuel System
3857690 retainer Fuel System
3861396 rubber bushing Fuel System
3852048 screw Fuel System
3856975 spacer Fuel System
3857485 stud Fuel System
3857486 stud Fuel System
3857491 swivel Fuel System
3857691 throttle housing Fuel System
3857698 valve Fuel System
3852007 washer Fuel System
3588865 fuel pump kit Fuel Systems, Gas Operation
3856052 bracket Ignition and Control Systems
3856064 bracket Ignition and Control Systems
3856066 bracket Ignition and Control Systems
3856067 bracket Ignition and Control Systems
3856949 bracket Ignition and Control Systems
3856978 bracket Ignition and Control Systems
3857167 cable kit Ignition and Control Systems
3857169 cable kit Ignition and Control Systems
3852108 clamp Ignition and Control Systems
3852218 clamp Ignition and Control Systems
3854001 coil Ignition and Control Systems
3854002 coil Ignition and Control Systems
3857448 cross recessed screw Ignition and Control Systems
3852225 deflection limiter Ignition and Control Systems
3857449 distributor Ignition and Control Systems
3854548 distributor cap Ignition and Control Systems
3860101 engine control module Ignition and Control Systems
3860804 engine control module Ignition and Control Systems
3852109 gasket Ignition and Control Systems
3853582 hose Ignition and Control Systems
3857696 iac valve Ignition and Control Systems
3857478 knock sensor Ignition and Control Systems
3853316 locating pin Ignition and Control Systems
3854003 module Ignition and Control Systems
3857683 nut Ignition and Control Systems
3854309 pole shoe Ignition and Control Systems
3854557 repair kit Ignition and Control Systems
3852491 retainer Ignition and Control Systems
3852619 retainer Ignition and Control Systems
3853317 retainer Ignition and Control Systems
3857682 retainer Ignition and Control Systems
3862014 rotor Ignition and Control Systems
3853318 screw Ignition and Control Systems
3853319 screw Ignition and Control Systems
3857693 screw Ignition and Control Systems
3854650 seal Ignition and Control Systems
3852029 sensor Ignition and Control Systems
3854527 sensor Ignition and Control Systems
3857479 sensor Ignition and Control Systems
3857487 sensor Ignition and Control Systems
3854552 shield Ignition and Control Systems
3853236 spacer Ignition and Control Systems
3851857 spark plug kit Ignition and Control Systems
3851858 spark plug kit Ignition and Control Systems
3855596 spindle Ignition and Control Systems
3850397 switch Ignition and Control Systems
3857473 bolt Inlet and Exhaust System
3852649 bracket Inlet and Exhaust System
3854377 bracket Inlet and Exhaust System
3856983 bracket Inlet and Exhaust System
3852094 bushing Inlet and Exhaust System
3857186 cover Inlet and Exhaust System
3852104 elbow Inlet and Exhaust System
3857944 elbow Inlet and Exhaust System
3857684 exhaust manifold Inlet and Exhaust System
3857685 exhaust manifold Inlet and Exhaust System
3853237 exhaust pipe Inlet and Exhaust System
3856259 exhaust pipe elbow Inlet and Exhaust System
3855281 exhaust pipe kit Inlet and Exhaust System
3857436 fitting Inlet and Exhaust System
3853154 flange screw Inlet and Exhaust System
3855983 flange screw Inlet and Exhaust System
3850496 gasket Inlet and Exhaust System
3852472 gasket Inlet and Exhaust System
3857226 gasket Inlet and Exhaust System
3857475 gasket Inlet and Exhaust System
3853562 grommet Inlet and Exhaust System
3854670 grommet Inlet and Exhaust System
3852696 hose Inlet and Exhaust System
3852742 hose Inlet and Exhaust System
3853860 hose clamp Inlet and Exhaust System
3854095 intake gasket kit Inlet and Exhaust System
3857680 intake gasket kit Inlet and Exhaust System
3587651 kit Inlet and Exhaust System
3856484 kit Inlet and Exhaust System
3862097 kit Inlet and Exhaust System
3852362 manifold Inlet and Exhaust System
3853404 nut Inlet and Exhaust System
3850740 plug Inlet and Exhaust System
3852830 screw Inlet and Exhaust System
3856027 shield Inlet and Exhaust System
3852140 stud Inlet and Exhaust System
3857488 tube Inlet and Exhaust System
3857480 valve Inlet and Exhaust System
3852058 washer Inlet and Exhaust System
3852610 T-nipple Instruments
3852465 bushing Instruments
3854521 module Instruments
3857532 oil pressure sensor Instruments
3852215 sensor Instruments
872068 temperature sensor Instruments
3852033 O-ring Lubricating and Oil System
3860060 adapter Lubricating and Oil System
3860450 adapter Lubricating and Oil System
3850559 filter Lubricating and Oil System
3860234 fitting Lubricating and Oil System
3850474 gauge Lubricating and Oil System
3860050 hose Lubricating and Oil System
3860053 hose Lubricating and Oil System
3860055 hose Lubricating and Oil System
3855035 oil pump Lubricating and Oil System
3860215 pipe Lubricating and Oil System
3853199 retainer Lubricating and Oil System
3855976 shaft Lubricating and Oil System
3855996 valve Lubricating and Oil System
3850930 hexagon screw Marine Propulsion
3852604 hose clamp Marine Propulsion
3852005 nut Marine Propulsion
3853806 rubber cushion Marine Propulsion
3852052 split pin Marine Propulsion
3852539 square nut Marine Propulsion
3852155 washer Marine Propulsion
3852193 washer Marine Propulsion
3852540 washer Marine Propulsion
3852542 washer Marine Propulsion
3852622 washer Marine Propulsion
3860164 bracket Other Electrical Equipment
3860264 horn Other Electrical Equipment
3852118 nut Other Electrical Equipment
961666 Rubber hoses Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
961667 Rubber hoses Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
961672 Rubber hoses Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852092 attaching clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852490 attaching clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852146 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852837 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853312 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853535 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852098 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852196 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852602 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853786 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853813 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3854925 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3854978 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
945652 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
961670 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853398 flange screw Starting System
3852518 nut Starting System
3853714 nut Starting System
3854138 relay Starting System
3854752 screw Starting System
3810300 solenoid kit Starting System
3860565 starter motor Starting System
3852001 tab washer Starting System
3852520 washer Starting System
3854496 washer Starting System
3852497 O-ring Steering
3853315 fitting Steering
3853632 hose Steering
3853967 hose assembly Steering
3854168 hose assembly Steering
3851921 oil cooler Steering
872103 pivot pin Steering
3860084 pulley Steering
3852126 screw Steering
3850491 steering pump Steering
