Home / Volvo Penta / 5.7GXiI-C

5.7GXiI-C

Product ID: 57GXIIC · Filter: 57GXIIC

Sections (33)

Circulation Pump and Thermostat
Cooling System

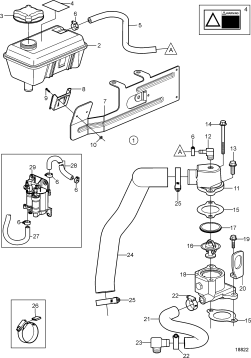

Circulation Pump and Thermostat Housing, Inboard with Freshwater Cooling
Cooling System
Engine Flush System
Cooling System

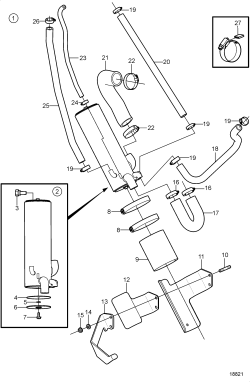

Heat Exchanger
Cooling System
Hot Water Outlet, Freshwater Cooled
Cooling System
Hot Water Outlet, Seawater Cooled
Cooling System
Seawater Pump Parts
Cooling System
Seawater Pump and Hoses
Cooling System
Camshaft and Valve Train
Engine

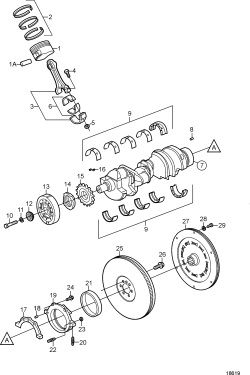

Crankshaft and Related Parts
Engine

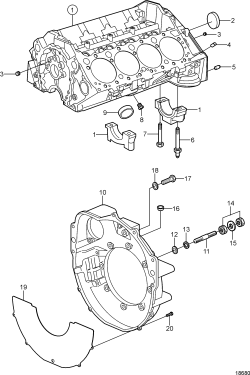

Cylinder Block and Flywheel Housing
Engine
Cylinder Head
Engine
Motor and Transmission Mounts, BW72D
Engine
Motor and Transmission Mounts, HSW630A
Engine
Motor and Transmission Mounts, HSW630D
Engine
Motor and Transmission Mounts, HSW630V
Engine
Oil Pan and Oil Pump
Engine
Control, Top Twin Mechanical
Engine Controls

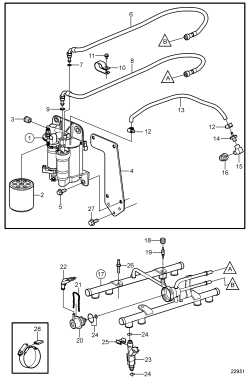

Fuel System
Fuel System

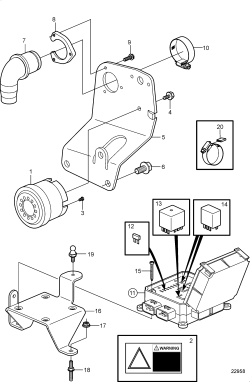

Alarm and Circuit Breaker
General, Electrical System
Electrical System
General, Electrical System
Serpentine Belt and Alternator
General, Electrical System
Starter
General, Electrical System
Maintenance Parts, 5.0L & 5.7L
General, Engine with Mounting and Equipment
Electronic Engine Control
Ignition and Control Systems
Ignition
Ignition and Control Systems

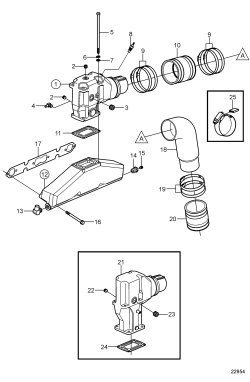

Exhaust
Inlet and Exhaust System
Intake Manifold
Inlet and Exhaust System
Throttle Body
Inlet and Exhaust System
Connecting Components for Inboard Transmissions
Marine Propulsion
Shift Cable Connection
Marine Propulsion
Shift Cable Connections, BW72D
Marine Propulsion
Repair Kits
Miscellaneous, Repair Kits

Spare parts (468)

Part #HeadingDescriptionCategory
3852089 O-ring
3852470 O-ring
983191 O-ring
3861500 belt
3858961 bolt
3858973 bolt
3858976 bolt
3858978 bolt
3858982 bolt
3858986 bolt
3858962 bracket
3861043 bracket
3861960 compression fitting
3862000 compression fitting
950004 cross recessed screw
3841580 cube
3858552 decal
3861504 decal
3861894 decal
16218 elbow nipple
3862196 fitting
946175 flange nut
981124 flange nut
3853392 flange screw
945358 flange screw
945444 flange screw
946440 flange screw
946671 flange screw
946934 flange screw
965191 flange screw
967949 flange screw
969189 flange screw
969982 flange screw
982702 flange screw
3861453 gasket
3862079 gasket
940119 hexagon nut
955783 hexagon nut
955860 hexagon nut
982672 hexagon nut
940134 hexagon screw
947224 hexagon screw
949518 hexagon screw
955246 hexagon screw
955535 hexagon screw
955541 hexagon screw
955556 hexagon screw
3860955 hose
3861485 hose
961611 hose nipple
969497 hose nipple
946577 lock nut
950355 lock nut
3852079 nut
3862463 nut
3861479 oil cooler
3861441 oil hose
3861442 oil hose
3861443 oil hose
943589 plug
952075 plug
981572 plug
3850115 retainer
3853495 retainer
3587445 screw
3847697 screw
3852133 screw
3857939 screw
3858994 screw
416033 sealing ring
1545204 spacer sleeve
941908 spring washer
941909 spring washer
941914 spring washer
942336 spring washer
3858964 stud
3861927 stud
953517 stud
953531 stud
953540 stud
982675 stud
940191 washer
955902 washer
955903 washer
3860082 alternator Alternator, Charging, Electric Motor, Electric Drives
3860078 bracket Alternator, Charging, Electric Motor, Electric Drives
3854579 bushing Alternator, Charging, Electric Motor, Electric Drives
3853367 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853399 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860281 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860285 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860201 idler pulley Alternator, Charging, Electric Motor, Electric Drives
3852099 nut Alternator, Charging, Electric Motor, Electric Drives
3860286 stud Alternator, Charging, Electric Motor, Electric Drives
3860477 stud Alternator, Charging, Electric Motor, Electric Drives
3861858 cable Cables and Fuses
3852434 clamp Cables and Fuses
3855178 connector Cables and Fuses
3853419 flange screw Cables and Fuses
3861373 fuse Cables and Fuses
3861374 fuse Cables and Fuses
3860965 fuse box Cables and Fuses
3852825 retainer Cables and Fuses
3852208 screw Cables and Fuses
1141647 coolant Chemical Products
1141674 coolant Chemical Products
21646481 coolant Chemical Products
3840002 oil Chemical Products
3840003 oil Chemical Products
3840005 oil Chemical Products
3862101 Hot water outlet Cooling System
3852071 O-ring Cooling System
3858938 O-ring Cooling System
3860586 T-nipple Cooling System
3860613 T-nipple Cooling System
3855531 T-pipe Cooling System
3852489 adapter Cooling System
3856136 bolt Cooling System
3856137 bolt Cooling System
3857422 bracket Cooling System
3861475 bracket Cooling System
3861476 bracket Cooling System
3861544 bracket Cooling System
3853850 circulation pump Cooling System
3858992 cover Cooling System
3860585 elbow nipple Cooling System
861105 expansion tank Cooling System
3850490 fitting Cooling System
3852053 flange screw Cooling System
3853266 flange screw Cooling System
3853401 flange screw Cooling System
3852111 gasket Cooling System
3852477 gasket Cooling System
3858993 gasket Cooling System
3861471 heat exchanger Cooling System
3857823 hose Cooling System
3857843 hose Cooling System
3860021 hose Cooling System
3860296 hose Cooling System
3860400 hose Cooling System
3860587 hose Cooling System
3860588 hose Cooling System
3861400 hose Cooling System
3861472 hose Cooling System
3861474 hose Cooling System
3861569 hose Cooling System
3861678 hose Cooling System
3861740 hose Cooling System
3861741 hose Cooling System
3861916 hose Cooling System
3861992 hose Cooling System
3858551 hose clamp Cooling System
856483 hose connection Cooling System
3858115 housing Cooling System
21213660 impeller kit Cooling System
21951348 impeller kit Cooling System
3858256 impeller kit Cooling System
3862567 impeller kit Cooling System
3860719 kit Cooling System
3858501 nipple Cooling System
3861607 pipe elbow Cooling System
3850802 plug Cooling System
3850999 plug Cooling System
1674083 pressure cap Cooling System
3860083 pulley Cooling System
3812693 pump Cooling System
3862482 pump Cooling System
3853390 screw Cooling System
22125080 screw kit Cooling System
827247 sealing ring Cooling System
21214599 seawater pump Cooling System
3857202 seawater pump Cooling System
3858241 stay Cooling System
3857954 stop lug Cooling System
3856147 stud Cooling System
3856961 thermostat Cooling System
3851384 thermostat housing Cooling System
3860555 thermostat housing Cooling System
3861676 thermostat housing Cooling System
3831426 thermostat kit Cooling System
3853674 O-ring Engine
3852744 baffle Engine
3862059 base engine Engine
3853149 bearing Engine
3862360 bearing kit Engine
3860079 belt tensioner Engine
3852595 bolt Engine
3853162 bolt Engine
3853173 bolt Engine
3853203 bolt Engine
3853204 bolt Engine
3856124 bolt Engine
3856130 bolt Engine
3862355 bolt Engine
3862361 bolt Engine
3860406 bracket Engine
3861343 bracket Engine
3862020 bracket Engine
3862021 bracket Engine
3856119 camshaft Engine
3852685 chain Engine
3853957 connecting rod Engine
3852100 core plug Engine
3853209 core plug Engine
3861746 cover Engine
3861747 cover Engine
857259 cover plate Engine
3856923 crankshaft Engine
3860383 decal Engine
841247 dowel Engine
3854494 drain cock Engine
3858471 engine anchorage Engine
3858475 fitting Engine
3853557 flange screw Engine
855833 flywheel Engine
841056 flywheel housing Engine
3852656 gasket Engine
3852687 gasket Engine
3856138 gasket kit Engine
3855970 gear Engine
3855739 grommet Engine
3856139 guide Engine
3858974 hose Engine
3858989 hose Engine
3856925 housing Engine
3856162 kit Engine
3861919 lifting eye Engine
3853114 locating pin Engine
3853206 nut Engine
3853273 nut Engine
3853413 nut Engine
3856930 nut Engine
3857664 nut Engine
3854008 oil filler cap Engine
3859003 overhaul gasket kit Engine
3859004 overhaul gasket kit Engine
3855969 pin Engine
3855972 pin Engine
3856001 pin Engine
3856140 pin Engine
3855742 piston Engine
3855743 piston Engine
3855740 piston ring Engine
3855741 piston ring Engine
3856118 push rod Engine
3856120 reinforcement Engine
3856121 reinforcement Engine
3850822 retainer Engine
3855998 retainer Engine
3856144 retainer Engine
3862363 ring Engine
3861167 rocker arm Engine
3853172 screw Engine
3855736 screw Engine
3855737 screw Engine
835482 screw Engine
3852426 seal Engine
3856926 seal Engine
3862262 seal Engine
3860538 spring clip Engine
3852690 sprocket Engine
3856114 sprocket Engine
3853146 stud Engine
3853147 stud Engine
3853202 stud Engine
3853205 stud Engine
3862354 stud Engine
3857778 sump Engine
3852002 tab washer Engine
3852046 tab washer Engine
3856127 tappet Engine
3862263 timing gear cover Engine
3855808 valve Engine
3855810 valve Engine
3861989 valve Engine
3855816 valve cap Engine
3855823 valve cotter Engine
3856928 valve cover Engine
3862264 valve cover Engine
21605360 valve spring Engine
3855814 valve stem seal Engine
3862362 valve stem seal Engine
3860981 vibration damper Engine
3862261 vibration damper Engine
3851981 washer Engine
3852070 washer Engine
3856151 washer Engine
3858177 washer Engine
3852663 woodruff key Engine
3850941 adapter Engine Controls
21471054 bracket Engine Controls
3855626 control Engine Controls
3856783 control Engine Controls
3856903 control Engine Controls
3885623 control Engine Controls
3885626 control Engine Controls
3888312 control Engine Controls
3856842 cover Engine Controls
3856838 kit Engine Controls
3852019 retainer Engine Controls
3857721 set Engine Controls
3856840 switch Engine Controls
3856844 switch Engine Controls
3856853 switch Engine Controls
819068 washer Engine Controls
3850423 O-ring Fuel System
3850424 O-ring Fuel System
3858054 O-ring Fuel System
3850266 anchor Fuel System
3857816 bushing Fuel System
3858972 cap Fuel System
3860412 clamp Fuel System
3858968 clip Fuel System
3853597 elbow Fuel System
3852413 filter Fuel System
3847644 fuel filter Fuel System
3862228 fuel filter Fuel System
3861369 fuel hose Fuel System
3861370 fuel hose Fuel System
3858966 fuel pipe Fuel System
3858967 governor Fuel System
3859005 grommet Fuel System
3859006 grommet Fuel System
3860284 hose Fuel System
3860413 hose clamp Fuel System
3858969 injector Fuel System
3854744 nut Fuel System
3854743 pin Fuel System
3861355 pump Fuel System
3858970 retainer Fuel System
3852048 screw Fuel System
3853558 screw Fuel System
3858971 valve Fuel System
3852007 washer Fuel System
3588865 fuel pump kit Fuel Systems, Gas Operation
3858981 O-ring Ignition and Control Systems
3859009 O-ring Ignition and Control Systems
3858983 bolt Ignition and Control Systems
3856052 bracket Ignition and Control Systems
3857815 bracket Ignition and Control Systems
3862034 bracket Ignition and Control Systems
3852108 clamp Ignition and Control Systems
3852218 clamp Ignition and Control Systems
3861985 coil Ignition and Control Systems
3858985 cooling plate Ignition and Control Systems
3861987 distributor Ignition and Control Systems
3858975 distributor cap Ignition and Control Systems
3861772 engine control module Ignition and Control Systems
3852109 gasket Ignition and Control Systems
3859000 ignition cable kit Ignition and Control Systems
3888328 ignition cable kit Ignition and Control Systems
21467473 kit Ignition and Control Systems
3858980 kit Ignition and Control Systems
3858996 kit Ignition and Control Systems
3858998 kit Ignition and Control Systems
3850357 knock sensor Ignition and Control Systems
3858984 module Ignition and Control Systems
3860290 nipple Ignition and Control Systems
3852237 retainer Ignition and Control Systems
3852491 retainer Ignition and Control Systems
3858977 rotor Ignition and Control Systems
3857693 screw Ignition and Control Systems
3861978 screw Ignition and Control Systems
3843750 sensor Ignition and Control Systems
3857487 sensor Ignition and Control Systems
3858979 sensor Ignition and Control Systems
3858987 sensor Ignition and Control Systems
3863130 sensor Ignition and Control Systems
3853236 spacer Ignition and Control Systems
3859010 spacer Ignition and Control Systems
21467472 spark plug kit Ignition and Control Systems
3850397 switch Ignition and Control Systems
3861997 temperature sensor Ignition and Control Systems
3858963 body Inlet and Exhaust System
3852104 elbow Inlet and Exhaust System
3857723 exhaust manifold Inlet and Exhaust System
3852738 exhaust pipe Inlet and Exhaust System
3861759 flame shield Inlet and Exhaust System
3853154 flange screw Inlet and Exhaust System
3857184 flange screw Inlet and Exhaust System
3850496 gasket Inlet and Exhaust System
3852468 gasket Inlet and Exhaust System
3858965 gasket Inlet and Exhaust System
3863191 gasket kit Inlet and Exhaust System
3852103 grommet Inlet and Exhaust System
3852435 hose Inlet and Exhaust System
3852696 hose Inlet and Exhaust System
3852742 hose Inlet and Exhaust System
3853860 hose clamp Inlet and Exhaust System
3858958 inlet pipe Inlet and Exhaust System
3858959 inlet pipe Inlet and Exhaust System
3858960 intake gasket Inlet and Exhaust System
3862097 kit Inlet and Exhaust System
3853404 nut Inlet and Exhaust System
3861842 pipe elbow Inlet and Exhaust System
3850740 plug Inlet and Exhaust System
3858291 reduction sleeve Inlet and Exhaust System
3852830 screw Inlet and Exhaust System
3861980 screw Inlet and Exhaust System
3861926 tube fitting Inlet and Exhaust System
3852058 washer Inlet and Exhaust System
3855776 adapter Instruments
3850660 fitting Instruments
3857532 oil pressure sensor Instruments
872064 pressure sensor Instruments
3852215 sensor Instruments
3852033 O-ring Lubricating and Oil System
3860060 adapter Lubricating and Oil System
3860450 adapter Lubricating and Oil System
3860075 attaching clamp Lubricating and Oil System
3853234 bolt Lubricating and Oil System
3853783 cap Lubricating and Oil System
3852015 connector Lubricating and Oil System
3852503 elbow Lubricating and Oil System
3850559 filter Lubricating and Oil System
3860234 fitting Lubricating and Oil System
3850474 gauge Lubricating and Oil System
3860054 hose Lubricating and Oil System
3856125 oil pump Lubricating and Oil System
3853199 retainer Lubricating and Oil System
3853198 shaft Lubricating and Oil System
3856126 strainer Lubricating and Oil System
3860402 tube Lubricating and Oil System
3861360 tube Lubricating and Oil System
3852219 valve Lubricating and Oil System
3807621 anchorage Marine Propulsion
3858995 anode Marine Propulsion
3851906 bracket Marine Propulsion
3861673 bracket Marine Propulsion
3858549 elbow nipple Marine Propulsion
3858472 engine anchorage Marine Propulsion
3858473 engine anchorage Marine Propulsion
3858534 engine anchorage Marine Propulsion
3858470 engine pad Marine Propulsion
3858503 fitting Marine Propulsion
3852604 hose clamp Marine Propulsion
3850065 split pin Marine Propulsion
3852052 split pin Marine Propulsion
3852193 washer Marine Propulsion
955234 hexagon screw Miscellaneous, Repair Kits
3860531 hexagon screw Other Electrical Equipment
3860264 horn Other Electrical Equipment
3852118 nut Other Electrical Equipment
3861376 relay Other Electrical Equipment
3852146 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3858532 cover Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3861999 cover Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3850422 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852098 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852602 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853780 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853786 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853794 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853813 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982643 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982644 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982714 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
983146 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853398 flange screw Starting System
3852185 nut Starting System
3852518 nut Starting System
855334 starter motor Starting System
3861375 starter relay Starting System
3852001 tab washer Starting System
3852520 washer Starting System
3852497 O-ring Steering
3852126 screw Steering
3852162 washer Steering
