Home / Volvo Penta / 5.0GL-D

5.0GL-D

Product ID: 50GLD · Filter: 50GLD

Sections (28)

Circulation Pump and Thermostat
Cooling System
Hot Water Outlet, Seawater Cooled
Cooling System
Neutra-Salt™
Cooling System
Seawater Pump Parts
Cooling System
Seawater Pump and Hoses
Cooling System
Camshaft and Valve Train
Engine
Crankshaft and Related Parts
Engine

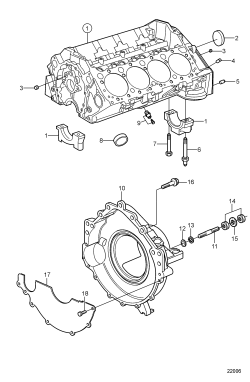

Cylinder Block and Flywheel Housing
Engine
Cylinder Head
Engine
Jackshaft
Engine

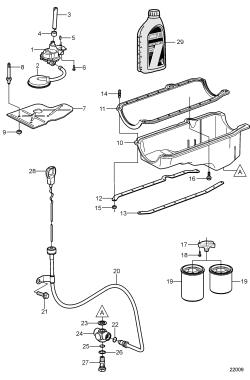

Oil Pan and Oil Pump
Engine
Remote Oil Filter
Engine
Control, Top Twin Mechanical
Engine Controls
Carburetor Mounting
Fuel System
Carburetor Service Kits
Fuel System
Fuel System
Fuel System
Throttle Cable Connection
Fuel System
10 Pin and Alarm
General, Electrical System
Alternator
General, Electrical System

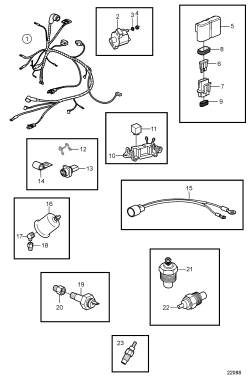

Engine Harness and Sensors
General, Electrical System
Fuse and Relay Box
General, Electrical System
Starter
General, Electrical System

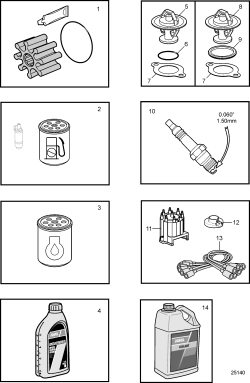

Maintenance Parts, 5.0L & 5.7L
General, Engine with Mounting and Equipment
Ignition
Ignition and Control Systems

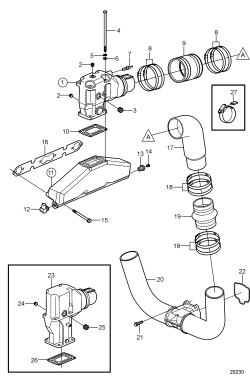

Exhaust
Inlet and Exhaust System
Intake Manifold
Inlet and Exhaust System
Repair Kits
Miscellaneous, Repair Kits
Power Steering
Steering

Spare parts (449)

Part #HeadingDescriptionCategory
3852089 O-ring
3852470 O-ring
983944 O-ring
3589414 T-nipple
3852464 V-belt
978547 V-belt
181877 ball bearing
3863294 bracket
948211 cable tie
984038 clamp
3862898 contact plate
3862899 contact plate
3862900 contact plate
3854980 decal
3861890 decal
7741899 decal
3587783 fitting
3862196 fitting
971098 flange lock nut
971099 flange lock nut
977938 flange lock nut
3855472 flange screw
946752 flange screw
947107 flange screw
948039 flange screw
965187 flange screw
965192 flange screw
965222 flange screw
969197 fuse
979686 fuse
983966 fuse
3862079 gasket
941263 grommet
955860 hexagon nut
971074 hexagon nut
3853620 hexagon screw
949518 hexagon screw
955551 hexagon screw
950355 lock nut
952075 plug
3850115 retainer
3853495 retainer
888958 retainer
3587445 screw
3852133 screw
3857939 screw
416033 sealing ring
914465 snap ring
914540 snap ring
983740 spacer sleeve
983741 spacer sleeve
941909 spring washer
941914 spring washer
982679 toothed washer
930842 washer
955902 washer
980933 washer
3862612 alternator Alternator, Charging, Electric Motor, Electric Drives
3861465 bracket Alternator, Charging, Electric Motor, Electric Drives
3854579 bushing Alternator, Charging, Electric Motor, Electric Drives
3853367 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853388 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853399 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853547 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860163 flange screw Alternator, Charging, Electric Motor, Electric Drives
3852064 nut Alternator, Charging, Electric Motor, Electric Drives
3852065 nut Alternator, Charging, Electric Motor, Electric Drives
3853403 nut retainer Alternator, Charging, Electric Motor, Electric Drives
3855600 tensioner Alternator, Charging, Electric Motor, Electric Drives
3854164 automatic fuse Cables and Fuses
3860368 bracket Cables and Fuses
3860486 bracket Cables and Fuses
3862583 bracket Cables and Fuses
3853845 cable Cables and Fuses
3854084 cable Cables and Fuses
3852434 clamp Cables and Fuses
3855178 connector Cables and Fuses
3860369 cover Cables and Fuses
8072808 cover Cables and Fuses
3857181 flange lock nut Cables and Fuses
3853419 flange screw Cables and Fuses
3860455 fuse holder Cables and Fuses
8166029 housing Cables and Fuses
855798 protecting sleeve Cables and Fuses
3852825 retainer Cables and Fuses
3860524 retainer Cables and Fuses
3852208 screw Cables and Fuses
3854031 wiring harness Cables and Fuses
3862489 wiring harness Cables and Fuses
3862490 wiring harness Cables and Fuses
3862619 wiring harness Cables and Fuses
1141647 coolant Chemical Products
1141674 coolant Chemical Products
21646481 coolant Chemical Products
41103102 neutralizing agent Chemical Products
41103103 neutralizing agent Chemical Products
3840002 oil Chemical Products
3840003 oil Chemical Products
3840005 oil Chemical Products
3862101 Hot water outlet Cooling System
3852071 O-ring Cooling System
3858938 O-ring Cooling System
3855531 T-pipe Cooling System
3862699 T-pipe Cooling System
3862891 attaching clamp Cooling System
3856137 bolt Cooling System
3858990 cap Cooling System
3862656 cap Cooling System
3853850 circulation pump Cooling System
3862902 connection piece Cooling System
3817257 coolant filter Cooling System
3850490 fitting Cooling System
3853266 flange screw Cooling System
3853326 flange screw Cooling System
3853401 flange screw Cooling System
3852111 gasket Cooling System
3852477 gasket Cooling System
3858237 hose Cooling System
3858991 hose Cooling System
3860400 hose Cooling System
3860588 hose Cooling System
3862536 hose Cooling System
3862542 hose Cooling System
3862543 hose Cooling System
3862901 hose Cooling System
856483 hose connection Cooling System
3858115 housing Cooling System
21213660 impeller kit Cooling System
21951348 impeller kit Cooling System
3862567 impeller kit Cooling System
41103100 neutra salt kit Cooling System
3858501 nipple Cooling System
3850802 plug Cooling System
3852220 pulley Cooling System
3812697 pump Cooling System
3862487 pump Cooling System
3862082 retainer Cooling System
3853390 screw Cooling System
22125080 screw kit Cooling System
827247 sealing ring Cooling System
21214596 seawater pump Cooling System
3858241 stay Cooling System
3857954 stop lug Cooling System
3852507 stud Cooling System
3856147 stud Cooling System
3856973 stud Cooling System
3862039 tank Cooling System
3587597 thermostat Cooling System
3863086 thermostat housing Cooling System
3831426 thermostat kit Cooling System
3852054 washer Cooling System
3853674 O-ring Engine
3851758 adapter kit Engine
3853158 arm Engine
3852744 baffle Engine
3853149 bearing Engine
3862360 bearing kit Engine
3852595 bolt Engine
3853162 bolt Engine
3853173 bolt Engine
3853203 bolt Engine
3853204 bolt Engine
3856124 bolt Engine
3862355 bolt Engine
3862495 bracket Engine
3862594 bracket Engine
3860697 bushing Engine
3856119 camshaft Engine
3852685 chain Engine
3853957 connecting rod Engine
3852100 core plug Engine
3853209 core plug Engine
3854604 cover Engine
3856923 crankshaft Engine
3857663 cylinder head Engine
3858124 cylinder head gasket Engine
841247 dowel Engine
3854494 drain cock Engine
3862057 engine Engine
3853557 flange screw Engine
3860582 flange screw Engine
3853958 flywheel Engine
3851722 flywheel housing Engine
3852113 gasket Engine
3852656 gasket Engine
3852687 gasket Engine
3852834 gasket Engine
3856138 gasket kit Engine
3855970 gear Engine
3855739 grommet Engine
3856139 guide Engine
3856925 housing Engine
3857846 housing Engine
3856162 kit Engine
3853114 locating pin Engine
3853206 nut Engine
3853273 nut Engine
3853413 nut Engine
3856930 nut Engine
3857664 nut Engine
3854008 oil filler cap Engine
3856153 overhaul gasket kit Engine
3855969 pin Engine
3855972 pin Engine
3856001 pin Engine
3856140 pin Engine
3862496 pin Engine
3857667 piston Engine
3857669 piston Engine
3857670 piston ring kit Engine
3857672 piston ring kit Engine
3856118 push rod Engine
3856120 reinforcement Engine
3856121 reinforcement Engine
3855998 retainer Engine
3856144 retainer Engine
3862363 ring Engine
3858437 rubber coupling Engine
3852421 screw Engine
3853172 screw Engine
3855736 screw Engine
3855737 screw Engine
3852657 seal Engine
3856926 seal Engine
3862262 seal Engine
3852690 sprocket Engine
3856114 sprocket Engine
3850571 stud Engine
3853146 stud Engine
3853147 stud Engine
3853202 stud Engine
3853205 stud Engine
3853274 stud Engine
3861383 stud Engine
3862354 stud Engine
3862494 stud Engine
3857778 sump Engine
3852002 tab washer Engine
3852046 tab washer Engine
3856127 tappet Engine
3856594 timing gear cover Engine
3862263 timing gear cover Engine
3855808 valve Engine
3856215 valve Engine
3857666 valve Engine
3855816 valve cap Engine
3855823 valve cotter Engine
3856927 valve cover Engine
3856928 valve cover Engine
3855815 valve spring Engine
3855814 valve stem seal Engine
3862362 valve stem seal Engine
3862261 vibration damper Engine
3851981 washer Engine
3852070 washer Engine
3856151 washer Engine
3858177 washer Engine
3852663 woodruff key Engine
3850941 adapter Engine Controls
3855626 control Engine Controls
3856783 control Engine Controls
3856903 control Engine Controls
3885623 control Engine Controls
3885626 control Engine Controls
3888312 control Engine Controls
3856842 cover Engine Controls
3856838 kit Engine Controls
3852019 retainer Engine Controls
3857721 set Engine Controls
3856840 switch Engine Controls
3856844 switch Engine Controls
3856853 switch Engine Controls
3850423 O-ring Fuel System
3850424 O-ring Fuel System
3850819 O-ring Fuel System
3850820 O-ring Fuel System
3857997 adapter Fuel System
3850266 anchor Fuel System
3852210 bracket Fuel System
3853310 bracket Fuel System
3858233 bracket Fuel System
3858255 bracket Fuel System
3856766 cap Fuel System
21610335 carburettor Fuel System
3859067 carburettor Fuel System
3853992 choke Fuel System
3850510 cover Fuel System
3854257 diaphragm Fuel System
3852013 elbow Fuel System
3854019 filter Fuel System
3853493 fitting Fuel System
3862631 flame shield Fuel System
3853575 float Fuel System
3862228 fuel filter Fuel System
3858220 fuel pipe Fuel System
3858261 fuel pump Fuel System
3850355 gasket Fuel System
3850405 gasket Fuel System
3852095 gasket Fuel System
3853279 gasket Fuel System
3853280 gasket Fuel System
3858345 grommet Fuel System
3860413 hose clamp Fuel System
3850217 intermediate lever Fuel System
21533400 kit Fuel System
3850861 kit Fuel System
3887700 kit Fuel System
3854468 lock nut Fuel System
856954 nipple Fuel System
3852142 nut Fuel System
3852749 nut Fuel System
3853561 nut Fuel System
3853758 nut Fuel System
3854020 repair kit Fuel System
3850415 screw Fuel System
3852048 screw Fuel System
3852154 screw Fuel System
3857938 screw Fuel System
3853373 stud Fuel System
3853560 stud Fuel System
3852007 washer Fuel System
3859009 O-ring Ignition and Control Systems
3858983 bolt Ignition and Control Systems
3856052 bracket Ignition and Control Systems
3852108 clamp Ignition and Control Systems
3854001 coil Ignition and Control Systems
3857449 distributor Ignition and Control Systems
3854548 distributor cap Ignition and Control Systems
3852109 gasket Ignition and Control Systems
3888326 ignition cable kit Ignition and Control Systems
3862167 ignition coil Ignition and Control Systems
21467473 kit Ignition and Control Systems
3858996 kit Ignition and Control Systems
3858998 kit Ignition and Control Systems
3854309 pole shoe Ignition and Control Systems
3854557 repair kit Ignition and Control Systems
3852237 retainer Ignition and Control Systems
3852491 retainer Ignition and Control Systems
3862014 rotor Ignition and Control Systems
3853318 screw Ignition and Control Systems
3863171 screw Ignition and Control Systems
3852029 sensor Ignition and Control Systems
3858979 sensor Ignition and Control Systems
3854552 shield Ignition and Control Systems
21467472 spark plug kit Ignition and Control Systems
3855596 spindle Ignition and Control Systems
3862500 temperature sensor Ignition and Control Systems
3852649 bracket Inlet and Exhaust System
3860811 bracket Inlet and Exhaust System
3852104 elbow Inlet and Exhaust System
3862904 elbow Inlet and Exhaust System
3863189 elbow Inlet and Exhaust System
3857723 exhaust manifold Inlet and Exhaust System
3858873 exhaust pipe Inlet and Exhaust System
3855935 flange screw Inlet and Exhaust System
3857184 flange screw Inlet and Exhaust System
3852468 gasket Inlet and Exhaust System
3863191 gasket kit Inlet and Exhaust System
3852103 grommet Inlet and Exhaust System
3852435 hose Inlet and Exhaust System
3852696 hose Inlet and Exhaust System
3852741 hose Inlet and Exhaust System
3853860 hose clamp Inlet and Exhaust System
3856270 inlet manifold Inlet and Exhaust System
3587651 kit Inlet and Exhaust System
3850458 pad Inlet and Exhaust System
3850740 plug Inlet and Exhaust System
3858291 reduction sleeve Inlet and Exhaust System
3852830 screw Inlet and Exhaust System
3852058 washer Inlet and Exhaust System
3855776 adapter Instruments
3850660 fitting Instruments
3857457 horn Instruments
3857532 oil pressure sensor Instruments
872064 pressure sensor Instruments
3852215 sensor Instruments
872066 thermo monitor Instruments
3852033 O-ring Lubricating and Oil System
3860060 adapter Lubricating and Oil System
3860450 adapter Lubricating and Oil System
3860075 attaching clamp Lubricating and Oil System
3853234 bolt Lubricating and Oil System
3852015 connector Lubricating and Oil System
3852503 elbow Lubricating and Oil System
3850559 filter Lubricating and Oil System
3860234 fitting Lubricating and Oil System
3862844 gauge Lubricating and Oil System
3860054 hose Lubricating and Oil System
3860449 kit Lubricating and Oil System
835440 oil filter Lubricating and Oil System
3856125 oil pump Lubricating and Oil System
3853199 retainer Lubricating and Oil System
3853198 shaft Lubricating and Oil System
3856126 strainer Lubricating and Oil System
3850249 tube Lubricating and Oil System
3852219 valve Lubricating and Oil System
3851724 adapter kit Marine Propulsion
3851729 adapter kit Marine Propulsion
3807621 anchorage Marine Propulsion
3851727 bearing housing Marine Propulsion
3857146 flange screw Marine Propulsion
855314 spacer Marine Propulsion
3852052 split pin Marine Propulsion
3852182 washer Marine Propulsion
3852191 washer Marine Propulsion
3852193 washer Marine Propulsion
3863152 alarm kit Other Electrical Equipment
3852118 nut Other Electrical Equipment
3857533 relay Other Electrical Equipment
3850234 rubber cushion Other Electrical Equipment
3808911 solenoid valve Other Electrical Equipment
3852124 attaching clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852490 attaching clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852146 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853312 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3858532 cover Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3861999 cover Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852098 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852172 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852196 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852602 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853780 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853786 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853791 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853794 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3854925 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982645 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982663 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982714 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
983146 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863145 hose Starting System
3863148 hose Starting System
3852518 nut Starting System
3853714 nut Starting System
3854138 relay Starting System
3854752 screw Starting System
3860566 starter motor Starting System
3862491 switch Starting System
3852001 tab washer Starting System
3852520 washer Starting System
3854496 washer Starting System
3852497 O-ring Steering
3856871 bracket Steering
3852839 hose Steering
3862629 oil cooler Steering
3853804 pulley Steering
3853405 screw Steering
3850491 steering pump Steering
3852162 washer Steering
