Home / Volvo Penta / 4.3GL-GF

4.3GL-GF

Product ID: 43GLGF · Filter: 43GLGF

Sections (29)

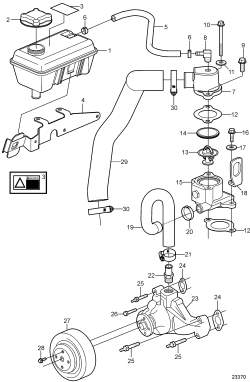

Circulation Pump and Thermostat
Cooling System
Heat Exchanger
Cooling System
Hot Water Outlet, Freshwater Cooled
Cooling System
Neutra-Salt™
Cooling System
Seawater Pump Parts
Cooling System
Seawater Pump and Hoses
Cooling System
Camshaft and Valve Train
Engine
Crankshaft and Related Parts
Engine
Cylinder Block and Flywheel Housing
Engine
Cylinder Head
Engine
Jackshaft
Engine
Longblock
Engine
Motor Mounts
Engine
Oil Drain
Engine
Oil Pan and Oil Pump
Engine
Carburetor Mounting
Fuel System
Carburetor Service Kits, Holley™
Fuel System
Fuel System
Fuel System
Throttle Cable Connection, Holley™
Fuel System
Engine Harness and Sensors
General, Electrical System
Serpentine Belt and Alternator
General, Electrical System
Starter
General, Electrical System
Maintenance Parts, 4.3GL
General, Engine with Mounting and Equipment
Ignition
Ignition and Control Systems
Exhaust
Inlet and Exhaust System
Exhaust, 3'' Risers
Inlet and Exhaust System
Exhaust, 6'' Risers
Inlet and Exhaust System
Intake Manifold
Inlet and Exhaust System
Steering
Steering

Spare parts (435)

Part #HeadingDescriptionCategory
3852089 O-ring
942978 O-ring
983191 O-ring
983944 O-ring
3589414 T-nipple
3589415 T-nipple
3817974 alarm
181877 ball bearing
3850519 bearing
3858846 bearing
3889124 belt
3817292 bracket
3819030 bracket
3842370 bracket
3863294 bracket
3884234 bracket
948211 cable tie
3888543 clip
3862898 contact plate
3862899 contact plate
3862900 contact plate
3854980 decal
3858552 decal
3861889 decal
3863274 decal
7741899 decal
3587783 fitting
3587787 fitting
888970 fitting
3886181 fitting screw
949874 flange lock nut
971098 flange lock nut
977938 flange lock nut
945408 flange nut
3860834 flange screw
3887488 flange screw
946472 flange screw
946752 flange screw
947107 flange screw
947790 flange screw
948039 flange screw
965187 flange screw
965222 flange screw
983966 fuse
3841013 gasket
3861453 gasket
955860 hexagon nut
971071 hexagon nut
971074 hexagon nut
949518 hexagon screw
959968 hexagon screw
3587529 hose
3817579 hose
3860955 hose
3861485 hose
3862744 hose
3863478 hose
888964 hose assembly
983744 hose nipple
3852021 nut
3888557 plug
3854695 retainer
888958 retainer
3857939 screw
3858994 screw
3863139 screw
416033 sealing ring
914465 snap ring
914540 snap ring
983740 spacer sleeve
983741 spacer sleeve
941914 spring washer
941814 stud
982679 toothed washer
955902 washer
980933 washer
3884950 alternator Alternator, Charging, Electric Motor, Electric Drives
3863175 bushing Alternator, Charging, Electric Motor, Electric Drives
3853547 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860163 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860281 flange screw Alternator, Charging, Electric Motor, Electric Drives
3860286 stud Alternator, Charging, Electric Motor, Electric Drives
3843887 bracket Cables and Fuses
3853845 cable Cables and Fuses
3854084 cable Cables and Fuses
3852434 clamp Cables and Fuses
8072808 cover Cables and Fuses
3857181 flange lock nut Cables and Fuses
3841370 fuse Cables and Fuses
3841372 fuse Cables and Fuses
3841373 fuse Cables and Fuses
3861373 fuse Cables and Fuses
3861374 fuse Cables and Fuses
3863403 fuse Cables and Fuses
3884849 fuse Cables and Fuses
3840402 mounting base Cables and Fuses
855798 protecting sleeve Cables and Fuses
3841366 relay Cables and Fuses
3852208 screw Cables and Fuses
21147169 wiring harness Cables and Fuses
3862489 wiring harness Cables and Fuses
3862490 wiring harness Cables and Fuses
3884239 wiring harness Cables and Fuses
3887227 wiring harness Cables and Fuses
3887228 wiring harness Cables and Fuses
3887229 wiring harness Cables and Fuses
3887733 wiring harness Cables and Fuses
1141647 coolant Chemical Products
1141674 coolant Chemical Products
21646481 coolant Chemical Products
41103102 neutralizing agent Chemical Products
41103103 neutralizing agent Chemical Products
3840002 oil Chemical Products
3840003 oil Chemical Products
3840005 oil Chemical Products
3858938 O-ring Cooling System
3860613 T-nipple Cooling System
3862891 attaching clamp Cooling System
3856137 bolt Cooling System
3817688 bracket Cooling System
3842368 bracket Cooling System
3842369 bracket Cooling System
3842583 bracket Cooling System
3853850 circulation pump Cooling System
3807440 connector Cooling System
3858992 cover Cooling System
3852538 elbow Cooling System
3860585 elbow nipple Cooling System
861105 expansion tank Cooling System
3853391 flange screw Cooling System
3853401 flange screw Cooling System
3852111 gasket Cooling System
3852477 gasket Cooling System
3858993 gasket Cooling System
3861471 heat exchanger Cooling System
3817818 hose Cooling System
3817823 hose Cooling System
3841899 hose Cooling System
3842131 hose Cooling System
3860587 hose Cooling System
3860588 hose Cooling System
3861472 hose Cooling System
3862633 hose Cooling System
3862901 hose Cooling System
3812303 hose clamp Cooling System
3812304 hose clamp Cooling System
856483 hose connection Cooling System
21213664 impeller kit Cooling System
3842786 impeller kit Cooling System
3818037 kit Cooling System
3850802 plug Cooling System
3850999 plug Cooling System
1674083 pressure cap Cooling System
3860083 pulley Cooling System
3888078 pulley Cooling System
21212799 pump Cooling System
3812519 pump Cooling System
3808877 reservoir Cooling System
3862082 retainer Cooling System
3853390 screw Cooling System
21951332 screw kit Cooling System
827247 sealing ring Cooling System
3856147 stud Cooling System
3587597 thermostat Cooling System
3851384 thermostat housing Cooling System
3860555 thermostat housing Cooling System
3831426 thermostat kit Cooling System
3807664 washer Cooling System
3853674 O-ring Engine
21165946 base engine Engine
3856778 bearing Engine
3885250 belt tensioner Engine
3852566 bolt Engine
3853203 bolt Engine
3853204 bolt Engine
3854320 bolt Engine
3854323 bolt Engine
3854330 bolt Engine
3854946 bolt Engine
3855802 bolt Engine
3855817 bolt Engine
3856122 bolt Engine
3856123 bolt Engine
3856124 bolt Engine
3862355 bolt Engine
3818718 bracket Engine
3862594 bracket Engine
3854328 camshaft Engine
3853208 cap plug Engine
3852100 core plug Engine
3853209 core plug Engine
21351088 cover Engine
3861911 cylinder head Engine
3854299 cylinder head gasket Engine
3853557 flange screw Engine
3858694 flywheel Engine
3808573 flywheel housing Engine
3851722 flywheel housing Engine
3852656 gasket Engine
3854942 gasket Engine
3855801 gasket kit Engine
3854314 gear Engine
3855970 gear Engine
3855739 grommet Engine
3856441 hexagon screw Engine
3809328 hose Engine
3858695 housing Engine
3859021 kit Engine
3859025 kit Engine
3861919 lifting eye Engine
3853114 locating pin Engine
3853206 nut Engine
3853273 nut Engine
3856930 nut Engine
3854944 oil filler cap Engine
3855969 pin Engine
3855972 pin Engine
3856001 pin Engine
3856140 pin Engine
3857717 pin Engine
21179952 piston Engine
21179959 piston ring kit Engine
3861009 pulley Engine
3856118 push rod Engine
3854317 retainer Engine
3854329 retainer Engine
21212915 ring Engine
3861873 rocker arm Engine
3858437 rubber coupling Engine
3853805 rubber cushion Engine
3853172 screw Engine
3855736 screw Engine
3855737 screw Engine
3858698 seal Engine
3862262 seal Engine
3857715 shaft Engine
3862055 shortblock Engine
3860538 spring clip Engine
3853274 stud Engine
3857718 stud Engine
3857937 stud Engine
3859027 stud Engine
3862493 stud Engine
3858697 sump Engine
3861874 support Engine
3852002 tab washer Engine
3852046 tab washer Engine
3852090 tab washer Engine
3855808 valve Engine
3855810 valve Engine
3855816 valve cap Engine
3855823 valve cotter Engine
3842875 valve cover Engine
3854948 valve cover Engine
3855815 valve spring Engine
3855814 valve stem seal Engine
3862362 valve stem seal Engine
3851981 washer Engine
3852428 washer Engine
3852433 washer Engine
3858177 washer Engine
3850941 adapter Engine Controls
888972 lock spring Engine Controls
3852019 retainer Engine Controls
3850819 O-ring Fuel System
3850820 O-ring Fuel System
3850056 adapter Fuel System
3850266 anchor Fuel System
3852082 cap Fuel System
3856766 cap Fuel System
21610334 carburettor Fuel System
3853992 choke Fuel System
3850510 cover Fuel System
3854257 diaphragm Fuel System
3852013 elbow Fuel System
3854019 filter Fuel System
3853493 fitting Fuel System
3817372 flame shield Fuel System
3853575 float Fuel System
3862228 fuel filter Fuel System
3883160 fuel pipe Fuel System
3858261 fuel pump Fuel System
3853279 gasket Fuel System
3853280 gasket Fuel System
3858345 grommet Fuel System
3860413 hose clamp Fuel System
3850232 intermediate lever Fuel System
21533400 kit Fuel System
3850861 kit Fuel System
3887698 kit Fuel System
856954 nipple Fuel System
3852142 nut Fuel System
3852749 nut Fuel System
3853561 nut Fuel System
3854020 repair kit Fuel System
3852048 screw Fuel System
3852154 screw Fuel System
3852864 screw Fuel System
3853373 stud Fuel System
3853560 stud Fuel System
3852007 washer Fuel System
3859009 O-ring Ignition and Control Systems
3858983 bolt Ignition and Control Systems
3856052 bracket Ignition and Control Systems
3850645 cap Ignition and Control Systems
3852108 clamp Ignition and Control Systems
3854001 coil Ignition and Control Systems
3854331 distributor cap Ignition and Control Systems
3852109 gasket Ignition and Control Systems
3888325 ignition cable kit Ignition and Control Systems
3883158 ignition coil Ignition and Control Systems
21467473 kit Ignition and Control Systems
3858998 kit Ignition and Control Systems
3853316 locating pin Ignition and Control Systems
3854003 module Ignition and Control Systems
3854309 pole shoe Ignition and Control Systems
3854557 repair kit Ignition and Control Systems
3852491 retainer Ignition and Control Systems
3852619 retainer Ignition and Control Systems
3853317 retainer Ignition and Control Systems
3854311 rotor Ignition and Control Systems
3853318 screw Ignition and Control Systems
3853319 screw Ignition and Control Systems
3863171 screw Ignition and Control Systems
3852029 sensor Ignition and Control Systems
3858979 sensor Ignition and Control Systems
3854312 shaft Ignition and Control Systems
3854552 shield Ignition and Control Systems
21513423 spark plug kit Ignition and Control Systems
3858997 spark plug kit Ignition and Control Systems
3862500 temperature sensor Ignition and Control Systems
3888846 Exhaust riser Inlet and Exhaust System
3863450 bellows Inlet and Exhaust System
3856765 bolt Inlet and Exhaust System
3860811 bracket Inlet and Exhaust System
3852104 elbow Inlet and Exhaust System
3862627 elbow Inlet and Exhaust System
3857656 exhaust manifold Inlet and Exhaust System
3854874 exhaust pipe Inlet and Exhaust System
3888684 exhaust pipe Inlet and Exhaust System
3888686 exhaust pipe Inlet and Exhaust System
3888687 exhaust pipe Inlet and Exhaust System
3842853 exhaust pipe extension Inlet and Exhaust System
3863061 exhaust pipe kit Inlet and Exhaust System
3857763 fitting Inlet and Exhaust System
3808361 flange screw Inlet and Exhaust System
3841928 flange screw Inlet and Exhaust System
3857184 flange screw Inlet and Exhaust System
3853412 gasket Inlet and Exhaust System
3863191 gasket kit Inlet and Exhaust System
3854947 grommet Inlet and Exhaust System
3855020 grommet Inlet and Exhaust System
3852696 hose Inlet and Exhaust System
3855805 inlet pipe Inlet and Exhaust System
3888847 kit Inlet and Exhaust System
3853404 nut Inlet and Exhaust System
3850458 pad Inlet and Exhaust System
3850740 plug Inlet and Exhaust System
3858291 reduction sleeve Inlet and Exhaust System
3852830 screw Inlet and Exhaust System
3857761 valve Inlet and Exhaust System
3855776 adapter Instruments
3850660 fitting Instruments
3857532 oil pressure sensor Instruments
872064 pressure sensor Instruments
3852215 sensor Instruments
872068 temperature sensor Instruments
872066 thermo monitor Instruments
3852033 O-ring Lubricating and Oil System
3854416 O-ring Lubricating and Oil System
3886045 adapter Lubricating and Oil System
3886159 adapter Lubricating and Oil System
3860075 attaching clamp Lubricating and Oil System
3853234 bolt Lubricating and Oil System
3852015 connector Lubricating and Oil System
3852503 elbow Lubricating and Oil System
3862843 gauge Lubricating and Oil System
835440 oil filter Lubricating and Oil System
3886066 oil line Lubricating and Oil System
3856125 oil pump Lubricating and Oil System
3857714 oil strainer Lubricating and Oil System
3853199 retainer Lubricating and Oil System
3853198 shaft Lubricating and Oil System
3855723 tube Lubricating and Oil System
3851724 adapter kit Marine Propulsion
3807621 anchorage Marine Propulsion
3858995 anode Marine Propulsion
3851727 bearing housing Marine Propulsion
3862657 nut Marine Propulsion
3858809 relay Marine Propulsion
3853972 rubber cushion Marine Propulsion
855314 spacer Marine Propulsion
3852052 split pin Marine Propulsion
3852539 square nut Marine Propulsion
3852155 washer Marine Propulsion
3852191 washer Marine Propulsion
3852193 washer Marine Propulsion
3852540 washer Marine Propulsion
3852542 washer Marine Propulsion
3852622 washer Marine Propulsion
3808911 solenoid valve Other Electrical Equipment
3852146 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853312 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3812302 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863438 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863439 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863440 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863441 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863442 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863443 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863444 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982643 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982645 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982663 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982716 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982717 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982967 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
983146 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
983168 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863144 hose Starting System
3863148 hose Starting System
3857936 screw Starting System
3810300 solenoid kit Starting System
3885317 starter motor Starting System
3862491 switch Starting System
3852520 washer Starting System
3854496 washer Starting System
3852497 O-ring Steering
3817841 bracket Steering
3843928 bracket Steering
3863008 hose Steering
3862629 oil cooler Steering
3860871 pump Steering
3853405 screw Steering
3852162 washer Steering
