4.3GL-B

Spare parts (464)

Part #	Heading	Category
3852089	O-ring
983944	O-ring
3589414	T-nipple
3852464	V-belt
978547	V-belt
181877	ball bearing
3850519	bearing
3858846	bearing
3863294	bracket
948211	cable tie
984038	clamp
3862898	contact plate
3862899	contact plate
3862900	contact plate
3854980	decal
3861889	decal
7741899	decal
3862196	fitting
971098	flange lock nut
971099	flange lock nut
977938	flange lock nut
3855472	flange screw
946472	flange screw
946752	flange screw
947107	flange screw
947790	flange screw
948039	flange screw
965187	flange screw
965192	flange screw
965222	flange screw
982285	flange screw
982702	flange screw
969197	fuse
979686	fuse
983966	fuse
3862079	gasket
941263	grommet
955860	hexagon nut
971071	hexagon nut
971074	hexagon nut
3853620	hexagon screw
949518	hexagon screw
955551	hexagon screw
959968	hexagon screw
3862744	hose
3863478	hose
950355	lock nut
3852021	nut
3850115	retainer
3854695	retainer
3587445	screw
3857939	screw
3863139	screw
416033	sealing ring
914465	snap ring
914540	snap ring
983740	spacer sleeve
983741	spacer sleeve
941909	spring washer
941914	spring washer
982679	toothed washer
930842	washer
955902	washer
980933	washer
3862612	alternator	Alternator, Charging, Electric Motor, Electric Drives
3861465	bracket	Alternator, Charging, Electric Motor, Electric Drives
3854579	bushing	Alternator, Charging, Electric Motor, Electric Drives
3853367	flange screw	Alternator, Charging, Electric Motor, Electric Drives
3853388	flange screw	Alternator, Charging, Electric Motor, Electric Drives
3853399	flange screw	Alternator, Charging, Electric Motor, Electric Drives
3853547	flange screw	Alternator, Charging, Electric Motor, Electric Drives
3852064	nut	Alternator, Charging, Electric Motor, Electric Drives
3853403	nut retainer	Alternator, Charging, Electric Motor, Electric Drives
3855600	tensioner	Alternator, Charging, Electric Motor, Electric Drives
3854164	automatic fuse	Cables and Fuses
3860368	bracket	Cables and Fuses
3860486	bracket	Cables and Fuses
3862583	bracket	Cables and Fuses
3853845	cable	Cables and Fuses
3854084	cable	Cables and Fuses
3852434	clamp	Cables and Fuses
3855178	connector	Cables and Fuses
3860369	cover	Cables and Fuses
8072808	cover	Cables and Fuses
3857181	flange lock nut	Cables and Fuses
3853419	flange screw	Cables and Fuses
3860455	fuse holder	Cables and Fuses
8166029	housing	Cables and Fuses
855798	protecting sleeve	Cables and Fuses
3852825	retainer	Cables and Fuses
3860524	retainer	Cables and Fuses
3852208	screw	Cables and Fuses
3854031	wiring harness	Cables and Fuses
3862489	wiring harness	Cables and Fuses
3862490	wiring harness	Cables and Fuses
3862617	wiring harness	Cables and Fuses
1141647	coolant	Chemical Products
1141674	coolant	Chemical Products
21646481	coolant	Chemical Products
41103102	neutralizing agent	Chemical Products
41103103	neutralizing agent	Chemical Products
3840002	oil	Chemical Products
3840003	oil	Chemical Products
3840005	oil	Chemical Products
3862101	Hot water outlet	Cooling System
3852071	O-ring	Cooling System
3858938	O-ring	Cooling System
3855531	T-pipe	Cooling System
3862699	T-pipe	Cooling System
3862891	attaching clamp	Cooling System
3856137	bolt	Cooling System
3858990	cap	Cooling System
3862656	cap	Cooling System
3853850	circulation pump	Cooling System
3862902	connection piece	Cooling System
3817257	coolant filter	Cooling System
3852538	elbow	Cooling System
3850490	fitting	Cooling System
3853266	flange screw	Cooling System
3853326	flange screw	Cooling System
3853401	flange screw	Cooling System
3852111	gasket	Cooling System
3858237	hose	Cooling System
3858991	hose	Cooling System
3860400	hose	Cooling System
3860588	hose	Cooling System
3861567	hose	Cooling System
3862536	hose	Cooling System
3862542	hose	Cooling System
3862633	hose	Cooling System
3862901	hose	Cooling System
856483	hose connection	Cooling System
3858115	housing	Cooling System
21213660	impeller kit	Cooling System
21951348	impeller kit	Cooling System
3862567	impeller kit	Cooling System
41103100	neutra salt kit	Cooling System
3858501	nipple	Cooling System
3850802	plug	Cooling System
3850999	plug	Cooling System
3812697	pump	Cooling System
3862487	pump	Cooling System
3862082	retainer	Cooling System
3853390	screw	Cooling System
22125080	screw kit	Cooling System
827247	sealing ring	Cooling System
21214596	seawater pump	Cooling System
3858241	stay	Cooling System
3857954	stop lug	Cooling System
3856147	stud	Cooling System
3856973	stud	Cooling System
3862039	tank	Cooling System
3587597	thermostat	Cooling System
3863086	thermostat housing	Cooling System
3831426	thermostat kit	Cooling System
3852054	washer	Cooling System
3853674	O-ring	Engine
3851758	adapter kit	Engine
21165946	base engine	Engine
3854315	bearing	Engine
3854955	bearing	Engine
3856778	bearing	Engine
3852566	bolt	Engine
3853179	bolt	Engine
3853203	bolt	Engine
3853204	bolt	Engine
3854320	bolt	Engine
3854323	bolt	Engine
3854330	bolt	Engine
3854946	bolt	Engine
3855802	bolt	Engine
3855817	bolt	Engine
3856122	bolt	Engine
3856123	bolt	Engine
3856124	bolt	Engine
3862355	bolt	Engine
3818718	bracket	Engine
3862495	bracket	Engine
3862594	bracket	Engine
3854328	camshaft	Engine
3853208	cap plug	Engine
3854173	connecting rod	Engine
3852100	core plug	Engine
3853209	core plug	Engine
3858693	crankshaft	Engine
3861911	cylinder head	Engine
3854299	cylinder head gasket	Engine
841247	dowel	Engine
3854494	drain cock	Engine
3855722	fitting	Engine
3853557	flange screw	Engine
3858694	flywheel	Engine
3851722	flywheel housing	Engine
3852655	gasket	Engine
3852656	gasket	Engine
3854942	gasket	Engine
3855801	gasket kit	Engine
3858125	gasket kit	Engine
3854314	gear	Engine
3855970	gear	Engine
3855739	grommet	Engine
3855825	guide	Engine
3856441	hexagon screw	Engine
3854904	hose	Engine
3852529	hose clamp	Engine
3857846	housing	Engine
3858695	housing	Engine
3859021	kit	Engine
3859025	kit	Engine
3853114	locating pin	Engine
3853206	nut	Engine
3853273	nut	Engine
3853413	nut	Engine
3856930	nut	Engine
3854944	oil filler cap	Engine
3856771	overhaul gasket kit	Engine
3855969	pin	Engine
3855972	pin	Engine
3856001	pin	Engine
3856140	pin	Engine
3857717	pin	Engine
3862496	pin	Engine
3855742	piston	Engine
3855743	piston	Engine
3855740	piston ring	Engine
3855741	piston ring	Engine
3856118	push rod	Engine
3854317	retainer	Engine
3854329	retainer	Engine
3855721	retainer	Engine
21212915	ring	Engine
3861873	rocker arm	Engine
3858437	rubber coupling	Engine
3853805	rubber cushion	Engine
3853172	screw	Engine
3855736	screw	Engine
3855737	screw	Engine
3856926	seal	Engine
3858698	seal	Engine
3862262	seal	Engine
3857715	shaft	Engine
3862055	shortblock	Engine
3853274	stud	Engine
3857718	stud	Engine
3857937	stud	Engine
3859027	stud	Engine
3862493	stud	Engine
3858697	sump	Engine
3861874	support	Engine
3852046	tab washer	Engine
3852090	tab washer	Engine
3859023	timing gear cover	Engine
3855808	valve	Engine
3855810	valve	Engine
3855816	valve cap	Engine
3855823	valve cotter	Engine
3854948	valve cover	Engine
3854949	valve cover	Engine
3855815	valve spring	Engine
3855814	valve stem seal	Engine
3862362	valve stem seal	Engine
3855811	valve tappet	Engine
3859022	vibration damper	Engine
3851981	washer	Engine
3852428	washer	Engine
3852433	washer	Engine
3858177	washer	Engine
3859024	woodruff key	Engine
3850941	adapter	Engine Controls
3852019	retainer	Engine Controls
3850423	O-ring	Fuel System
3850424	O-ring	Fuel System
3850819	O-ring	Fuel System
3850820	O-ring	Fuel System
3850056	adapter	Fuel System
3850266	anchor	Fuel System
3852210	bracket	Fuel System
3853310	bracket	Fuel System
3858233	bracket	Fuel System
3858255	bracket	Fuel System
3852082	cap	Fuel System
3856766	cap	Fuel System
3859066	carburettor	Fuel System
3853992	choke	Fuel System
3850510	cover	Fuel System
3854257	diaphragm	Fuel System
3852013	elbow	Fuel System
3854019	filter	Fuel System
3853493	fitting	Fuel System
3862631	flame shield	Fuel System
3853575	float	Fuel System
3862228	fuel filter	Fuel System
3858220	fuel pipe	Fuel System
3858261	fuel pump	Fuel System
3850355	gasket	Fuel System
3850405	gasket	Fuel System
3852437	gasket	Fuel System
3853279	gasket	Fuel System
3853280	gasket	Fuel System
3853497	gasket	Fuel System
3858345	grommet	Fuel System
3860413	hose clamp	Fuel System
3850232	intermediate lever	Fuel System
21533400	kit	Fuel System
3850861	kit	Fuel System
3854468	lock nut	Fuel System
856954	nipple	Fuel System
3852142	nut	Fuel System
3852749	nut	Fuel System
3853561	nut	Fuel System
3853758	nut	Fuel System
3854020	repair kit	Fuel System
3850415	screw	Fuel System
3852048	screw	Fuel System
3852154	screw	Fuel System
3852864	screw	Fuel System
3857938	screw	Fuel System
3853373	stud	Fuel System
3853560	stud	Fuel System
3852007	washer	Fuel System

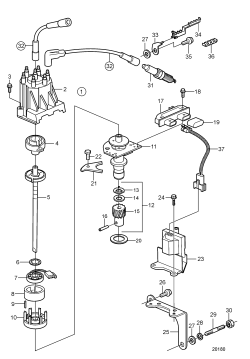

3859009	O-ring	Ignition and Control Systems
3856129	bolt	Ignition and Control Systems
3858983	bolt	Ignition and Control Systems
3856052	bracket	Ignition and Control Systems
3857165	cable kit	Ignition and Control Systems
3850645	cap	Ignition and Control Systems
3852108	clamp	Ignition and Control Systems
3854001	coil	Ignition and Control Systems
3854331	distributor cap	Ignition and Control Systems
3852109	gasket	Ignition and Control Systems
3888325	ignition cable kit	Ignition and Control Systems
3862167	ignition coil	Ignition and Control Systems
21467473	kit	Ignition and Control Systems
3858998	kit	Ignition and Control Systems
3853316	locating pin	Ignition and Control Systems
3854003	module	Ignition and Control Systems
3854309	pole shoe	Ignition and Control Systems
3854557	repair kit	Ignition and Control Systems
3852237	retainer	Ignition and Control Systems
3852491	retainer	Ignition and Control Systems
3852619	retainer	Ignition and Control Systems
3853317	retainer	Ignition and Control Systems
3854311	rotor	Ignition and Control Systems
3853318	screw	Ignition and Control Systems
3853319	screw	Ignition and Control Systems
3852029	sensor	Ignition and Control Systems
3858979	sensor	Ignition and Control Systems
3854312	shaft	Ignition and Control Systems
3854552	shield	Ignition and Control Systems
21513423	spark plug kit	Ignition and Control Systems
3858997	spark plug kit	Ignition and Control Systems
3862500	temperature sensor	Ignition and Control Systems
3856765	bolt	Inlet and Exhaust System
3860811	bracket	Inlet and Exhaust System
3852104	elbow	Inlet and Exhaust System
3862904	elbow	Inlet and Exhaust System
3857656	exhaust manifold	Inlet and Exhaust System
3854874	exhaust pipe	Inlet and Exhaust System
3858873	exhaust pipe	Inlet and Exhaust System
3863061	exhaust pipe kit	Inlet and Exhaust System
3857763	fitting	Inlet and Exhaust System
3857184	flange screw	Inlet and Exhaust System
3850378	gasket	Inlet and Exhaust System
3853412	gasket	Inlet and Exhaust System
3863191	gasket kit	Inlet and Exhaust System
3854947	grommet	Inlet and Exhaust System
3855020	grommet	Inlet and Exhaust System
3852741	hose	Inlet and Exhaust System
3855805	inlet pipe	Inlet and Exhaust System
3855807	intake gasket kit	Inlet and Exhaust System
3587651	kit	Inlet and Exhaust System
3850458	pad	Inlet and Exhaust System
3858291	reduction sleeve	Inlet and Exhaust System
3856884	valve	Inlet and Exhaust System
3857761	valve	Inlet and Exhaust System
3855776	adapter	Instruments
3850660	fitting	Instruments
3857457	horn	Instruments
3857532	oil pressure sensor	Instruments
872064	pressure sensor	Instruments
3852215	sensor	Instruments
872068	temperature sensor	Instruments
872066	thermo monitor	Instruments
3852033	O-ring	Lubricating and Oil System
3854416	O-ring	Lubricating and Oil System
3860059	adapter	Lubricating and Oil System
3860450	adapter	Lubricating and Oil System
3860075	attaching clamp	Lubricating and Oil System
3853234	bolt	Lubricating and Oil System
3852015	connector	Lubricating and Oil System
3852503	elbow	Lubricating and Oil System
3850559	filter	Lubricating and Oil System
3853174	fitting	Lubricating and Oil System
3860234	fitting	Lubricating and Oil System
3862843	gauge	Lubricating and Oil System
3860052	hose	Lubricating and Oil System
3860054	hose	Lubricating and Oil System
3860451	kit	Lubricating and Oil System
841750	oil filter	Lubricating and Oil System
3856125	oil pump	Lubricating and Oil System
3857714	oil strainer	Lubricating and Oil System
3860214	pipe	Lubricating and Oil System
3853199	retainer	Lubricating and Oil System
3853198	shaft	Lubricating and Oil System
3851724	adapter kit	Marine Propulsion
3851729	adapter kit	Marine Propulsion
3807621	anchorage	Marine Propulsion
3851727	bearing housing	Marine Propulsion
3862657	nut	Marine Propulsion
3853972	rubber cushion	Marine Propulsion
855314	spacer	Marine Propulsion
3852052	split pin	Marine Propulsion
3852539	square nut	Marine Propulsion
3852155	washer	Marine Propulsion
3852182	washer	Marine Propulsion
3852191	washer	Marine Propulsion
3852193	washer	Marine Propulsion
3852540	washer	Marine Propulsion
3852542	washer	Marine Propulsion
3852622	washer	Marine Propulsion
3863152	alarm kit	Other Electrical Equipment
3852118	nut	Other Electrical Equipment
3850234	rubber cushion	Other Electrical Equipment
3808911	solenoid valve	Other Electrical Equipment
3852124	attaching clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852490	attaching clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852146	clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853312	clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3858532	cover	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3861999	cover	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852098	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852172	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852196	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852602	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853780	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853786	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853794	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853813	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3854925	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863442	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863443	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982645	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982663	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
982714	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
983146	hose clamp	Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3863144	hose	Starting System
3863148	hose	Starting System
3852518	nut	Starting System
3853714	nut	Starting System
3854138	relay	Starting System
3857936	screw	Starting System
3810300	solenoid kit	Starting System
3860566	starter motor	Starting System
3862491	switch	Starting System
3852001	tab washer	Starting System
3852520	washer	Starting System
3852497	O-ring	Steering
3856871	bracket	Steering
3852839	hose	Steering
3862629	oil cooler	Steering
3853804	pulley	Steering
3853405	screw	Steering
3850491	steering pump	Steering
3852162	washer	Steering

Parts Catalog

Sections (29)

Spare parts (464)
