4.3GIPBYCCE

Product ID: 43GIPBYCCE · Filter: 43GIPBYCCE

Sections (27)

Cooling
Cooling System

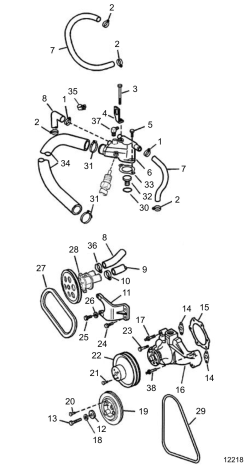

Freshwater Cooling
Cooling System
Hot Water Outlet
Cooling System

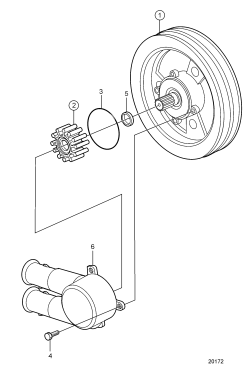

Seawater Pump Parts
Cooling System
Seawater Pump Parts
Cooling System
Seawater Pump, New Service Kits
Cooling System
Crankcase
Engine

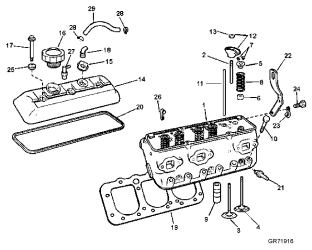

Cylinder Head
Engine

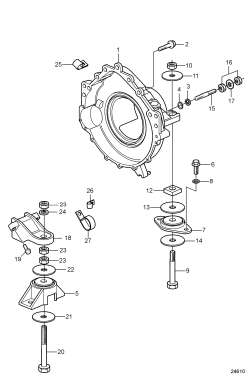

Flywheel Housing and Mounts
Engine

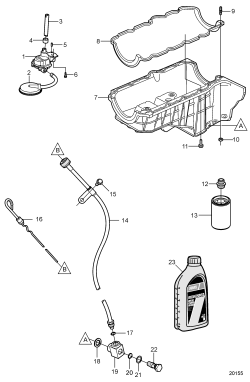

Oil Pan and Oil Pump
Engine

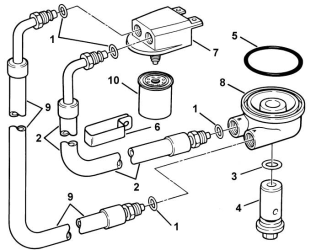

Remote Oil Filter
Engine
Fuel Pump
Fuel System

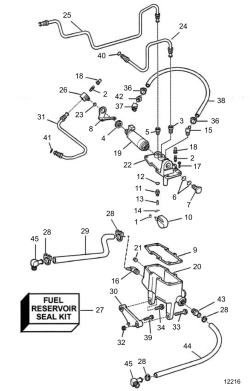

Vapor Separator Tank
Fuel System

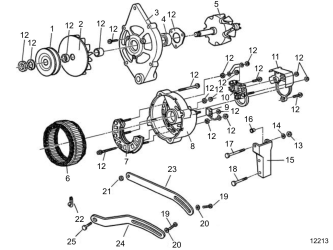

Alternator
General, Electrical System

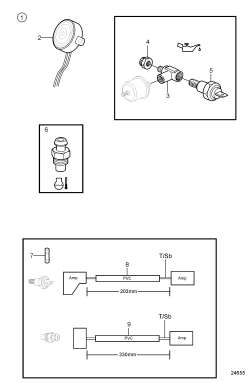

Audible Alarm Kit
General, Electrical System

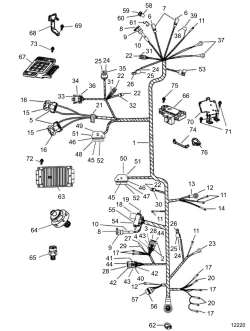

Engine Harness
General, Electrical System
Engine Harness Bracket
General, Electrical System
Starter
General, Electrical System

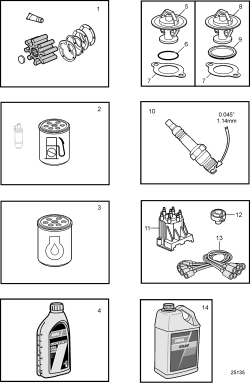

Maintenance Parts, 4.3L
General, Engine with Mounting and Equipment
Gasket Kits
General, Hydraulic System, Special Functions, Miscellaneous

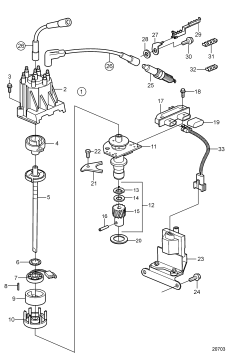

Ignition
Ignition and Control Systems
Exhaust
Inlet and Exhaust System

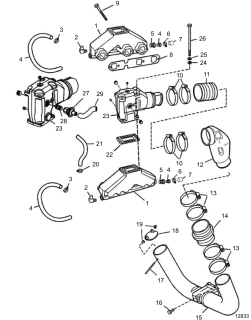

Exhaust, 3'' Risers
Inlet and Exhaust System

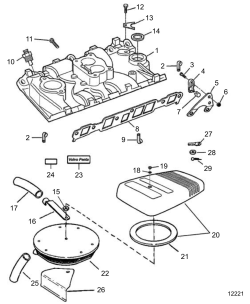

Intake Manifold
Inlet and Exhaust System
Throttle Body Repair Kits
Inlet and Exhaust System

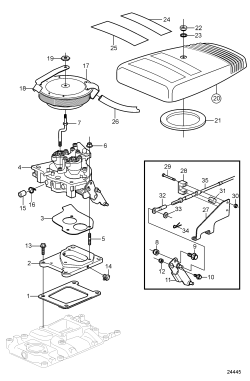

Throttle Body and Engine Cover
Inlet and Exhaust System

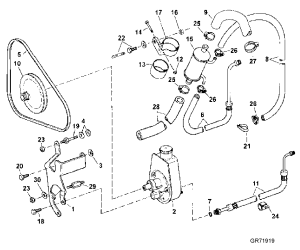

Steering
Steering

Spare parts (544)

Part #HeadingDescriptionCategory
3852011 O-ring
3852464 V-belt
978457 V-belt
978547 V-belt
3850519 bearing
3858016 bushing
948211 cable tie
3852476 cap
3852170 clamp
950004 cross recessed screw
3854980 decal
3854982 decal
3854983 decal
3854984 decal
948645 flange lock nut
3855472 flange screw
945444 flange screw
946173 flange screw
946472 flange screw
941263 grommet
3853620 hexagon screw
949518 hexagon screw
959968 hexagon screw
3854587 hose
3854588 hose
942700 hose
943268 hose nipple
961611 hose nipple
3852021 nut
3852079 nut
3854695 retainer
943367 rubber hose
943369 rubber hose
944386 rubber hose
3587445 screw
3855578 screw
949519 screw
416033 sealing ring
956956 splice
980933 washer
3857058 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3857065 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3857066 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3857068 adapter kit Alternator, Charging, Electric Motor, Electric Drives
3857561 alternator kit Alternator, Charging, Electric Motor, Electric Drives
3857061 bearing Alternator, Charging, Electric Motor, Electric Drives
3850460 brace Alternator, Charging, Electric Motor, Electric Drives
3853883 bracket Alternator, Charging, Electric Motor, Electric Drives
3853884 bracket Alternator, Charging, Electric Motor, Electric Drives
3857060 bracket Alternator, Charging, Electric Motor, Electric Drives
3857064 bracket Alternator, Charging, Electric Motor, Electric Drives
3852740 bushing Alternator, Charging, Electric Motor, Electric Drives
3857059 fan Alternator, Charging, Electric Motor, Electric Drives
3853367 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853399 flange screw Alternator, Charging, Electric Motor, Electric Drives
3853547 flange screw Alternator, Charging, Electric Motor, Electric Drives
3857067 governor Alternator, Charging, Electric Motor, Electric Drives
3852064 nut Alternator, Charging, Electric Motor, Electric Drives
3852065 nut Alternator, Charging, Electric Motor, Electric Drives
3853403 nut retainer Alternator, Charging, Electric Motor, Electric Drives
3857062 rotor Alternator, Charging, Electric Motor, Electric Drives
3857245 screw kit Alternator, Charging, Electric Motor, Electric Drives
3857063 stator Alternator, Charging, Electric Motor, Electric Drives
3855600 tensioner Alternator, Charging, Electric Motor, Electric Drives
3854164 automatic fuse Cables and Fuses
3854186 automatic fuse Cables and Fuses
3854238 automatic fuse Cables and Fuses
3852487 boot Cables and Fuses
3853681 boot Cables and Fuses
3856186 bracket Cables and Fuses
3854084 cable Cables and Fuses
3854244 cable Cables and Fuses
3855025 cable sleeve Cables and Fuses
3855262 cable terminal Cables and Fuses
3853320 cap Cables and Fuses
3855253 cap Cables and Fuses
3855263 cap Cables and Fuses
3852434 clamp Cables and Fuses
3853565 connector Cables and Fuses
3855178 connector Cables and Fuses
3855239 connector Cables and Fuses
3855240 connector Cables and Fuses
3855244 connector Cables and Fuses
3855245 connector Cables and Fuses
3855247 connector Cables and Fuses
3855248 connector Cables and Fuses
3855249 connector Cables and Fuses
3855250 connector Cables and Fuses
3855251 connector Cables and Fuses
3855252 connector Cables and Fuses
3855255 connector Cables and Fuses
3855257 connector Cables and Fuses
3855258 connector Cables and Fuses
3855021 connector housing Cables and Fuses
3855259 connector housing Cables and Fuses
3855260 connector housing Cables and Fuses
3856764 cover Cables and Fuses
3853419 flange screw Cables and Fuses
3855241 grommet Cables and Fuses
3852230 plug Cables and Fuses
3855254 plug Cables and Fuses
3855261 plug Cables and Fuses
3854192 relay Cables and Fuses
3852825 retainer Cables and Fuses
3852130 rubber cap Cables and Fuses
3852208 screw Cables and Fuses
3855938 screw Cables and Fuses
3853478 seal Cables and Fuses
3855238 seal Cables and Fuses
3855243 seal Cables and Fuses
3855256 seal Cables and Fuses
3854282 switch Cables and Fuses
3852036 terminal Cables and Fuses
3852084 terminal Cables and Fuses
3852107 terminal Cables and Fuses
3852229 terminal Cables and Fuses
3852233 terminal Cables and Fuses
3852235 terminal Cables and Fuses
3852246 terminal Cables and Fuses
3852247 terminal Cables and Fuses
3852254 terminal Cables and Fuses
3852527 terminal Cables and Fuses
3853679 terminal Cables and Fuses
3854245 terminal Cables and Fuses
3855022 terminal Cables and Fuses
3855023 terminal Cables and Fuses
3855024 terminal Cables and Fuses
3855027 terminal Cables and Fuses
3855237 terminal Cables and Fuses
3855242 terminal Cables and Fuses
3855246 terminal Cables and Fuses
3855267 terminal Cables and Fuses
3853480 terminal casing Cables and Fuses
3857494 wiring harness Cables and Fuses
3857572 wiring harness Cables and Fuses
3858015 wiring harness Cables and Fuses
3858131 wiring harness Cables and Fuses
1141647 coolant Chemical Products
1141674 coolant Chemical Products
21646481 coolant Chemical Products
3840002 oil Chemical Products
3840003 oil Chemical Products
3852071 O-ring Cooling System
3855531 T-pipe Cooling System
3855719 attaching clamp Cooling System
3851396 bar Cooling System
3856136 bolt Cooling System
3856137 bolt Cooling System
3851395 brace Cooling System
3851393 bracket Cooling System
3857405 bracket Cooling System
3857422 bracket Cooling System
3858086 cam Cooling System
3853850 circulation pump Cooling System
3851413 connection pipe Cooling System
3852538 elbow Cooling System
3853598 elbow Cooling System
3851697 end cover Cooling System
861105 expansion tank Cooling System
3851598 fitting Cooling System
3853155 flange screw Cooling System
3853266 flange screw Cooling System
3853326 flange screw Cooling System
3853391 flange screw Cooling System
3853401 flange screw Cooling System
3857595 freshwater cooling kit Cooling System
3850595 gasket Cooling System
3852111 gasket Cooling System
3852477 gasket Cooling System
3851586 heat exchanger Cooling System
3851591 hose Cooling System
3851592 hose Cooling System
3851762 hose Cooling System
3852281 hose Cooling System
3852288 hose Cooling System
3852746 hose Cooling System
3855677 hose Cooling System
3855678 hose Cooling System
3856249 hose Cooling System
3856251 hose Cooling System
3857843 hose Cooling System
857500 hose Cooling System
856483 hose connection Cooling System
3856265 hot-water outlet Cooling System
3850360 housing Cooling System
3858115 housing Cooling System
21951346 impeller kit Cooling System
21951348 impeller kit Cooling System
3850107 impeller kit Cooling System
3858256 impeller kit Cooling System
3862281 impeller kit Cooling System
3850802 plug Cooling System
1674083 pressure cap Cooling System
3852220 pulley Cooling System
3812697 pump Cooling System
3862487 pump Cooling System
3853390 screw Cooling System
841693 screw Cooling System
21951334 screw kit Cooling System
22125080 screw kit Cooling System
827247 sealing ring Cooling System
21214596 seawater pump Cooling System
3858229 seawater pump Cooling System
3852507 stud Cooling System
3856147 stud Cooling System
3856973 stud Cooling System
3851383 thermostat housing Cooling System
3851384 thermostat housing Cooling System
3831426 thermostat kit Cooling System
875788 thermostat kit Cooling System
3852054 washer Cooling System
3853674 O-ring Engine
3851991 V-belt pulley Engine
3858440 base engine Engine
3854315 bearing Engine
3854955 bearing Engine
3856772 bearing Engine
3856773 bearing Engine
3856774 bearing Engine
3856778 bearing Engine
3852566 bolt Engine
3853179 bolt Engine
3853203 bolt Engine
3853204 bolt Engine
3853214 bolt Engine
3854320 bolt Engine
3854323 bolt Engine
3854330 bolt Engine
3855802 bolt Engine
3855817 bolt Engine
3856122 bolt Engine
3856123 bolt Engine
3856124 bolt Engine
3852760 bracket Engine
3854328 camshaft Engine
3852685 chain Engine
3853917 clutch Engine
3854173 connecting rod Engine
3852100 core plug Engine
3853209 core plug Engine
3855733 crankshaft Engine
3855813 cylinder head Engine
3859069 cylinder head Engine
3854299 cylinder head gasket Engine
3855722 fitting Engine
3853557 flange screw Engine
3854325 flywheel Engine
3852655 gasket Engine
3855801 gasket kit Engine
3858125 gasket kit Engine
3854314 gear Engine
3855970 gear Engine
3855739 grommet Engine
3855825 guide Engine
3854904 hose Engine
3852529 hose clamp Engine
3857716 housing Engine
3857846 housing Engine
3854943 kit Engine
3853114 locating pin Engine
3850929 lock nut Engine
3853148 nut Engine
3853206 nut Engine
3853273 nut Engine
3853649 nut Engine
3856930 nut Engine
3855800 oil pan Engine
3856771 overhaul gasket kit Engine
3855969 pin Engine
3855972 pin Engine
3856001 pin Engine
3856140 pin Engine
3857717 pin Engine
3855742 piston Engine
3855743 piston Engine
3855740 piston ring Engine
3855741 piston ring Engine
3856682 powerhead Engine
3856118 push rod Engine
3854317 retainer Engine
3854329 retainer Engine
3855721 retainer Engine
3853805 rubber cushion Engine
3853172 screw Engine
3855717 screw Engine
3855736 screw Engine
3855737 screw Engine
3852657 seal Engine
3856926 seal Engine
3857715 shaft Engine
3852690 sprocket Engine
3854319 sprocket Engine
3852483 stud Engine
3853205 stud Engine
3853274 stud Engine
3857718 stud Engine
3852002 tab washer Engine
3852046 tab washer Engine
3852090 tab washer Engine
3855735 timing gear casing Engine
3855808 valve Engine
3855809 valve Engine
3855810 valve Engine
3855816 valve cap Engine
3855823 valve cotter Engine
3854948 valve cover Engine
3854949 valve cover Engine
3855815 valve spring Engine
3855814 valve stem seal Engine
3857648 valve stem seal Engine
3855811 valve tappet Engine
3855734 vibration damper Engine
3851981 washer Engine
3852070 washer Engine
3852110 washer Engine
3852428 washer Engine
3852433 washer Engine
3858177 washer Engine
3853648 woodruff key Engine
3850941 adapter Engine Controls
3852019 retainer Engine Controls
3850423 O-ring Fuel System
3850424 O-ring Fuel System
3850819 O-ring Fuel System
3850820 O-ring Fuel System
3853642 O-ring Fuel System
3850039 adapter Fuel System
3852017 adapter Fuel System
3850266 anchor Fuel System
3854163 automatic fuse Fuel System
3852210 bracket Fuel System
3853310 bracket Fuel System
3853573 bracket Fuel System
3856211 bracket Fuel System
3856438 bracket Fuel System
3854405 cap Fuel System
3856766 cap Fuel System
3855185 control valve Fuel System
3850510 cover Fuel System
3852013 elbow Fuel System
3852480 elbow Fuel System
3853597 elbow Fuel System
3852462 fitting Fuel System
3853493 fitting Fuel System
3853545 fitting Fuel System
3854924 fitting Fuel System
3856449 fitting Fuel System
3856862 flame shield Fuel System
3852115 flange screw Fuel System
3853575 float Fuel System
3851218 fuel filter Fuel System
3862228 fuel filter Fuel System
3854123 fuel pipe Fuel System
3854774 fuel pipe Fuel System
3857650 fuel pump Fuel System
3858261 fuel pump Fuel System
3852437 gasket Fuel System
3853279 gasket Fuel System
3853280 gasket Fuel System
3853497 gasket Fuel System
3853577 gasket Fuel System
3857728 gasket Fuel System
3852481 grommet Fuel System
3850688 hose Fuel System
3854870 hose Fuel System
3855182 injector Fuel System
3850374 kit Fuel System
3850861 kit Fuel System
3850657 nut Fuel System
3852749 nut Fuel System
3853561 nut Fuel System
3852009 nut retainer Fuel System
3852420 nut retainer Fuel System
3852167 plug Fuel System
3853616 protective cap Fuel System
3855179 repair kit Fuel System
3855180 repair kit Fuel System
3855181 repair kit Fuel System
3855184 repair kit Fuel System
3855186 repair kit Fuel System
3855187 repair kit Fuel System
3855188 repair kit Fuel System
3855189 repair kit Fuel System
3854149 reservoir Fuel System
3852034 retainer Fuel System
3853572 retainer Fuel System
3852048 screw Fuel System
3853558 screw Fuel System
3853576 spring seat Fuel System
3852093 stud Fuel System
3852160 stud Fuel System
3850354 throttle housing Fuel System
3855183 throttle housing Fuel System
3854773 tube Fuel System
3854775 tube Fuel System
3855904 tube Fuel System
3854152 valve Fuel System
3852007 washer Fuel System
3856129 bolt Ignition and Control Systems
3850272 bracket Ignition and Control Systems
3851990 bracket Ignition and Control Systems
3856052 bracket Ignition and Control Systems
3857165 cable kit Ignition and Control Systems
3850645 cap Ignition and Control Systems
3852108 clamp Ignition and Control Systems
3852218 clamp Ignition and Control Systems
3852225 deflection limiter Ignition and Control Systems
3854331 distributor cap Ignition and Control Systems
3852109 gasket Ignition and Control Systems
3854310 housing Ignition and Control Systems
3888325 ignition cable kit Ignition and Control Systems
3854922 ignition coil Ignition and Control Systems
3853316 locating pin Ignition and Control Systems
3854003 module Ignition and Control Systems
3854672 module Ignition and Control Systems
3857324 module Ignition and Control Systems
3854309 pole shoe Ignition and Control Systems
3854557 repair kit Ignition and Control Systems
3852237 retainer Ignition and Control Systems
3852491 retainer Ignition and Control Systems
3852492 retainer Ignition and Control Systems
3852619 retainer Ignition and Control Systems
3853317 retainer Ignition and Control Systems
3854311 rotor Ignition and Control Systems
3853319 screw Ignition and Control Systems
3850396 sensor Ignition and Control Systems
3852029 sensor Ignition and Control Systems
3854905 sensor Ignition and Control Systems
3854312 shaft Ignition and Control Systems
3853236 spacer Ignition and Control Systems
3851858 spark plug kit Ignition and Control Systems
3856759 spark plug kit Ignition and Control Systems
3850397 switch Ignition and Control Systems
3856765 bolt Inlet and Exhaust System
3852649 bracket Inlet and Exhaust System
3853311 bracket Inlet and Exhaust System
3855509 bracket Inlet and Exhaust System
3855517 bushing Inlet and Exhaust System
3852695 connector Inlet and Exhaust System
3854916 deflector Inlet and Exhaust System
3852104 elbow Inlet and Exhaust System
3857656 exhaust manifold Inlet and Exhaust System
3854874 exhaust pipe Inlet and Exhaust System
3856259 exhaust pipe elbow Inlet and Exhaust System
3855281 exhaust pipe kit Inlet and Exhaust System
3857763 fitting Inlet and Exhaust System
3857184 flange screw Inlet and Exhaust System
3850378 gasket Inlet and Exhaust System
3850496 gasket Inlet and Exhaust System
3853412 gasket Inlet and Exhaust System
3855020 grommet Inlet and Exhaust System
3852435 hose Inlet and Exhaust System
3852696 hose Inlet and Exhaust System
3853860 hose clamp Inlet and Exhaust System
3855805 inlet pipe Inlet and Exhaust System
3855806 inlet pipe Inlet and Exhaust System
3855807 intake gasket kit Inlet and Exhaust System
3856484 kit Inlet and Exhaust System
3852338 manifold Inlet and Exhaust System
3850458 pad Inlet and Exhaust System
3852753 pin Inlet and Exhaust System
3858291 reduction sleeve Inlet and Exhaust System
3852830 screw Inlet and Exhaust System
3853864 seal Inlet and Exhaust System
3850274 stud Inlet and Exhaust System
3856884 valve Inlet and Exhaust System
3857761 valve Inlet and Exhaust System
3852058 washer Inlet and Exhaust System
3852610 T-nipple Instruments
3855776 adapter Instruments
3854711 breaker Instruments
3850660 fitting Instruments
3857457 horn Instruments
3857532 oil pressure sensor Instruments
872064 pressure sensor Instruments
3852215 sensor Instruments
872068 temperature sensor Instruments
3852033 O-ring Lubricating and Oil System
3854589 adapter Lubricating and Oil System
3853234 bolt Lubricating and Oil System
3850959 cap Lubricating and Oil System
3852503 elbow Lubricating and Oil System
3853174 fitting Lubricating and Oil System
3850473 gauge Lubricating and Oil System
3850883 oil filter Lubricating and Oil System
841750 oil filter Lubricating and Oil System
3856125 oil pump Lubricating and Oil System
3857714 oil strainer Lubricating and Oil System
3853199 retainer Lubricating and Oil System
3853198 shaft Lubricating and Oil System
3855723 tube Lubricating and Oil System
3853564 connector Marine Propulsion
3850930 hexagon screw Marine Propulsion
3853972 rubber cushion Marine Propulsion
3852008 screw Marine Propulsion
3852957 screw Marine Propulsion
3853262 screw Marine Propulsion
3852155 washer Marine Propulsion
3852182 washer Marine Propulsion
3852193 washer Marine Propulsion
3852542 washer Marine Propulsion
3857455 alarm kit Other Electrical Equipment
3857533 relay Other Electrical Equipment
3850234 rubber cushion Other Electrical Equipment
961667 Rubber hoses Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852092 attaching clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852490 attaching clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852146 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852837 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853312 clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3850422 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852172 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852196 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852602 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853786 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853791 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853794 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3853813 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3854925 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
945652 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
961670 hose clamp Parts for Fastening, Spacing, Locking and Support, Stock Shape Materials
3852518 nut Starting System
3854138 relay Starting System
3854752 screw Starting System
3850216 solenoid Starting System
3856004 starter motor Starting System
3852001 tab washer Starting System
3852520 washer Starting System
3854496 washer Starting System
3852497 O-ring Steering
3856865 bracket Steering
3856871 bracket Steering
3852839 hose Steering
3853918 hose Steering
3854056 hose Steering
3853967 hose assembly Steering
3854168 hose assembly Steering
3852177 nut Steering
3851921 oil cooler Steering
3853804 pulley Steering
3852126 screw Steering
3853405 screw Steering
3850491 steering pump Steering
3852162 washer Steering
