2623-002
Screw, Cap Price: $5.95

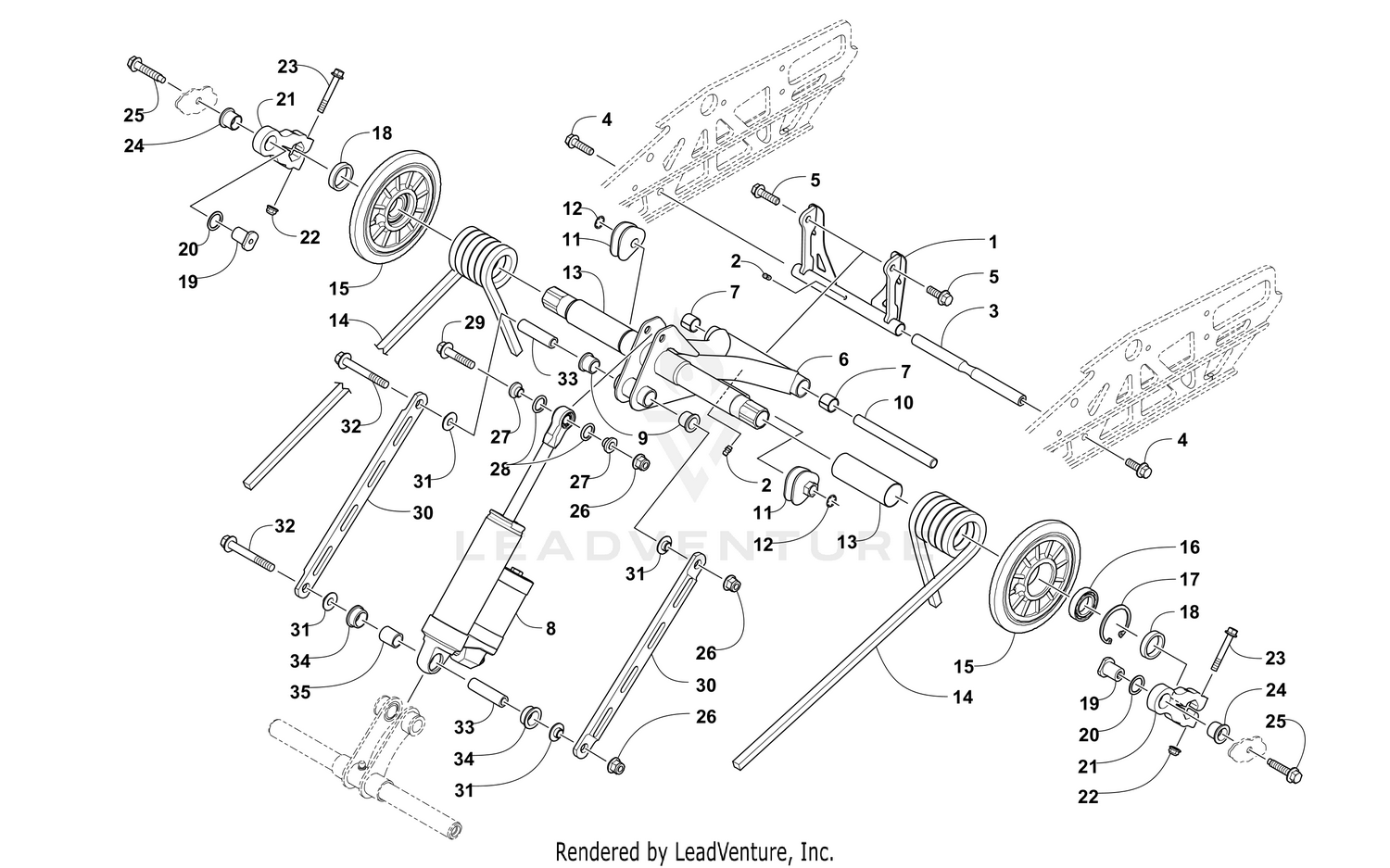

Схема сборки, где используется деталь
Used in (10 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [98431] | Arctic Cat / SNOWMOBILE / 2013 / 2013 SNO PRO 600 GREEN [S2013ACDPRUSG] / REAR S | 25 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [103357] | Arctic Cat / SNOWMOBILE / 2016 / 2016 M 9000 SNO PRO LTD 162 GREEN [S2016M9NLEUS | 16 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [102233] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 6000 SNO PRO ES 137 GREEN [S2016ZXDSPUS | 23 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY[103594] | Arctic Cat / SNOWMOBILE / 2016 / 2016 ZR 9000 SNO PRO 137 GREEN [S2016ZXNSPUSG] | 23 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [103849] | Arctic Cat / SNOWMOBILE / 2017 / 2017 BEARCAT 7000 XT BLUE EARLY BUILD [S2017BCU | 11 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [106285] | Arctic Cat / SNOWMOBILE / 2018 / 2018 XF 6000 CROSSTOUR 146 ORANGE [S2018XFDCTUS | 23 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [106238] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R SX GREEN INTERNATIONAL [S2018ACD | 24 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [106196] | Arctic Cat / SNOWMOBILE / 2018 / 2018 ZR 6000 R XC GREEN INTERNATIONAL [S2018ACD | 23 |
| ARC | REAR SUSPENSION FRONT ARM ASSEMBLY [106153] | Arctic Cat / SNOWMOBILE / 2019 / 2019 PANTERA 7000 XT LTD BLACK INTERNATIONAL [S | 4 |
| ARC | REAR SUSPENSION REAR ARM ASSEMBLY [108974] | Arctic Cat / SNOWMOBILE / 2022 / 2022 ZR 6000 R SX GREEN [S2022ACDPRUSG] / REAR | 24 |
