49-8280
DISCONTINUED Price: Call Us
Схема сборки, где используется деталь
Used in (18 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|

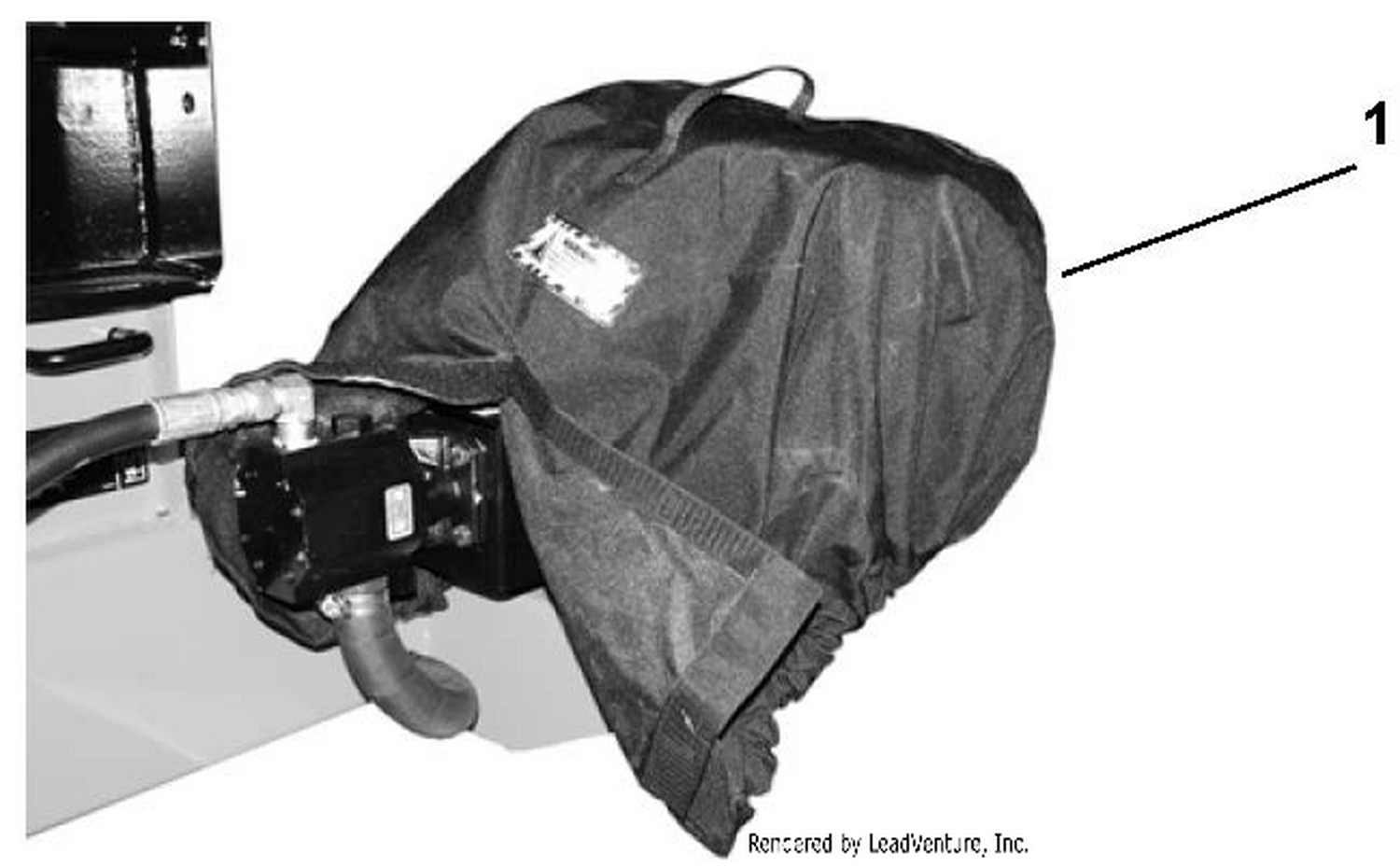

| ARN | Engine Cover Kit - 71701500 | Ariens / Finishing Tools / 917031 (014000 - 016999) 27-Ton Log Splitter / Engine | 1 |
| SCG | IMPELLER HOUSING AND TRAILER ASSEMBLY | Scag Power Equipment / Debris Equipment / TLB25-49KBD (Truck Loader Industrial T | 1 |
| SCG | SVRII - Briggs & Stratton 40BV EFI ELECTRICAL SCHEMATIC (shown with Key Off, PTO Off, Park Brake Applied, OPC Disengaged) | Scag Power Equipment / Riders / SVRII-61V-40BV-EFI (V-Ride II) (S/N 069D00001 to | 1 |
| SCG | ELECTRICAL SCHEMATIC | Scag Power Equipment / Riders / SZL-42H-22KT (Liberty Z) (S/N 086D00001 to 086D9 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Attachments / 30710, 72" Rear Discharge Mower, 1984 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Attachments / 30710, 72" Rear Discharge Mower, 1985 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Attachments / 30710, 72" Rear Discharge Mower, 1987 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Attachments / 30710, 72" Rear Discharge Mower, 1988 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Attachments / 30721, 72" Side Discharge Mower, 1987 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Attachments / 30721, 72" Side Discharge Mower, 1988 | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30780, Groundsmaster 72, 1984 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30780, Groundsmaster 72, 1985 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30781, Groundsmaster 327, 1985 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30781, Groundsmaster 327, 1986 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30781, Groundsmaster 327, 1987 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30781, Groundsmaster 327, 1988 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30787, Groundsmaster 327, 1988 (SN | 1 |
| TCM | Electrical Schematic | Toro Commercial Equipment / Riding Products / 30787, Groundsmaster 327, 1989 (SN | 1 |
