117267-03
PANEL ASM This part replaces 117267. Price: $75.32

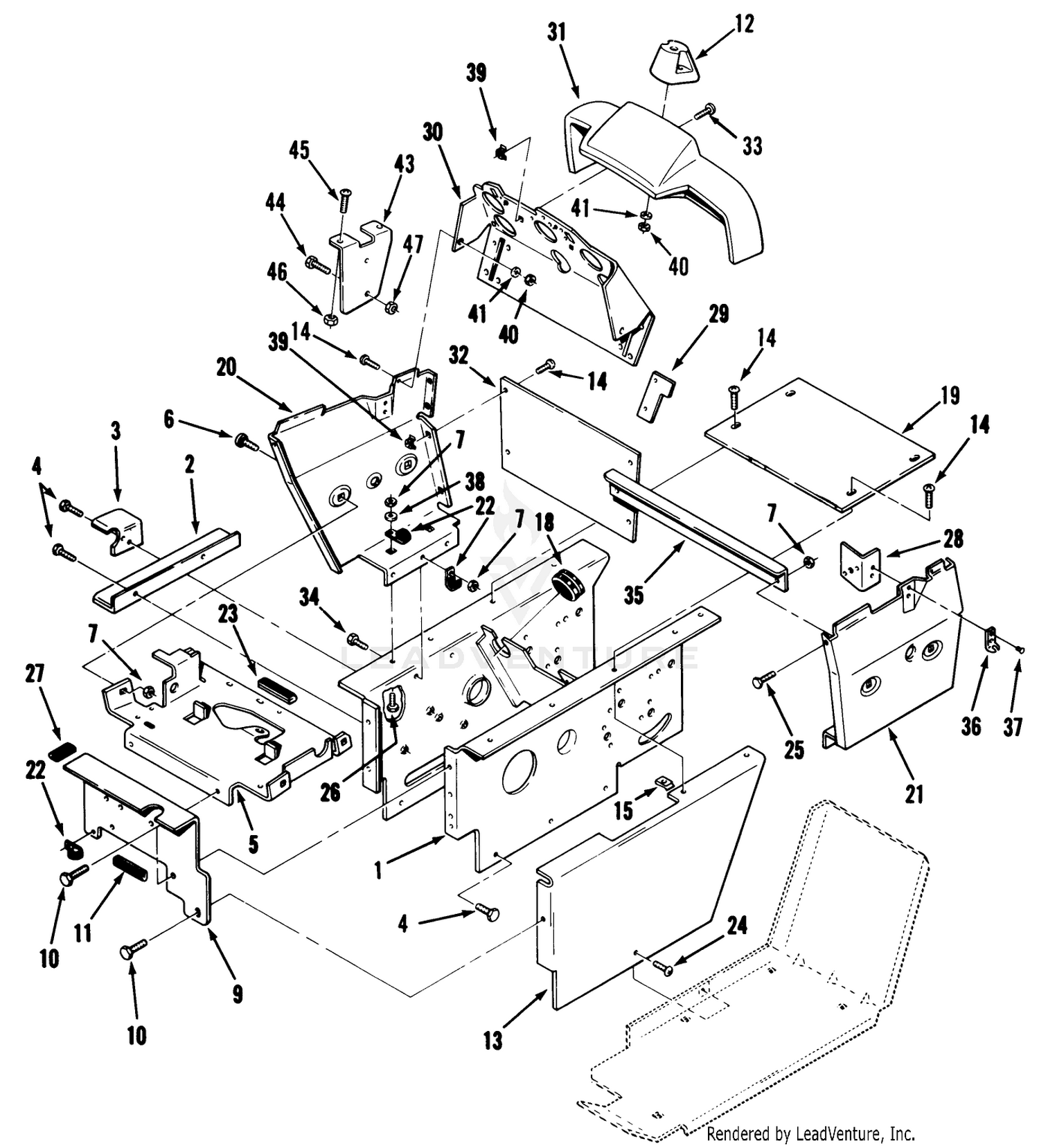

Схема сборки, где используется деталь
Used in (18 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| TCM | Sheet Metal And Covers 2 | Toro Commercial Equipment / Riding Products / 1991 / 41-20OE02, 520-H Garden Tra | 30 |
| TCM | Sheet Metal And Covers 2 | Toro Commercial Equipment / Riding Products / 1992 / 41-20OE03, 520-H Garden Tra | 30 |
| TCM | Sheet Metal And Covers 2 | Toro Commercial Equipment / Riding Products / 1992 / R1-20OE02, 520-H Garden Tra | 30 |
| TCM | Sheet Metal And Covers 2 | Toro Commercial Equipment / Riding Products / 1993 / 73501, 520-H Garden Tractor | 30 |
| TCM | Sheet Metal And Covers 2 | Toro Commercial Equipment / Riding Products / 1993 / 73520, 520-H Garden Tractor | 30 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1994 / 73501, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1994 / 73520, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1995 / 73520, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1995 / 73520, 520-H Garden Tractor | 7 |
| TCM | Dash And Side Panels Assembly | Toro Commercial Equipment / Riding Products / 1996 / 73501, 520-H Garden Tractor | 7 |
| TCM | Hoodstand, Console | Toro Commercial Equipment / Riding Products / 1996 / 73502, 520-H Garden Tractor | 13 |
| TCM | Hoodstand, Console | Toro Commercial Equipment / Riding Products / 1996 / 73521, 520-H Garden Tractor | 13 |
| TCM | Hoodstand, Console | Toro Commercial Equipment / Riding Products / 1997 / 73502, 520-H Garden Tractor | 13 |
| TCM | Hoodstand, Console | Toro Commercial Equipment / Riding Products / 1997 / 73521, 520-H Garden Tractor | 13 |
