114263-03

SPRING-SEAT, 8" This part replaces 114263. Price: $110.69

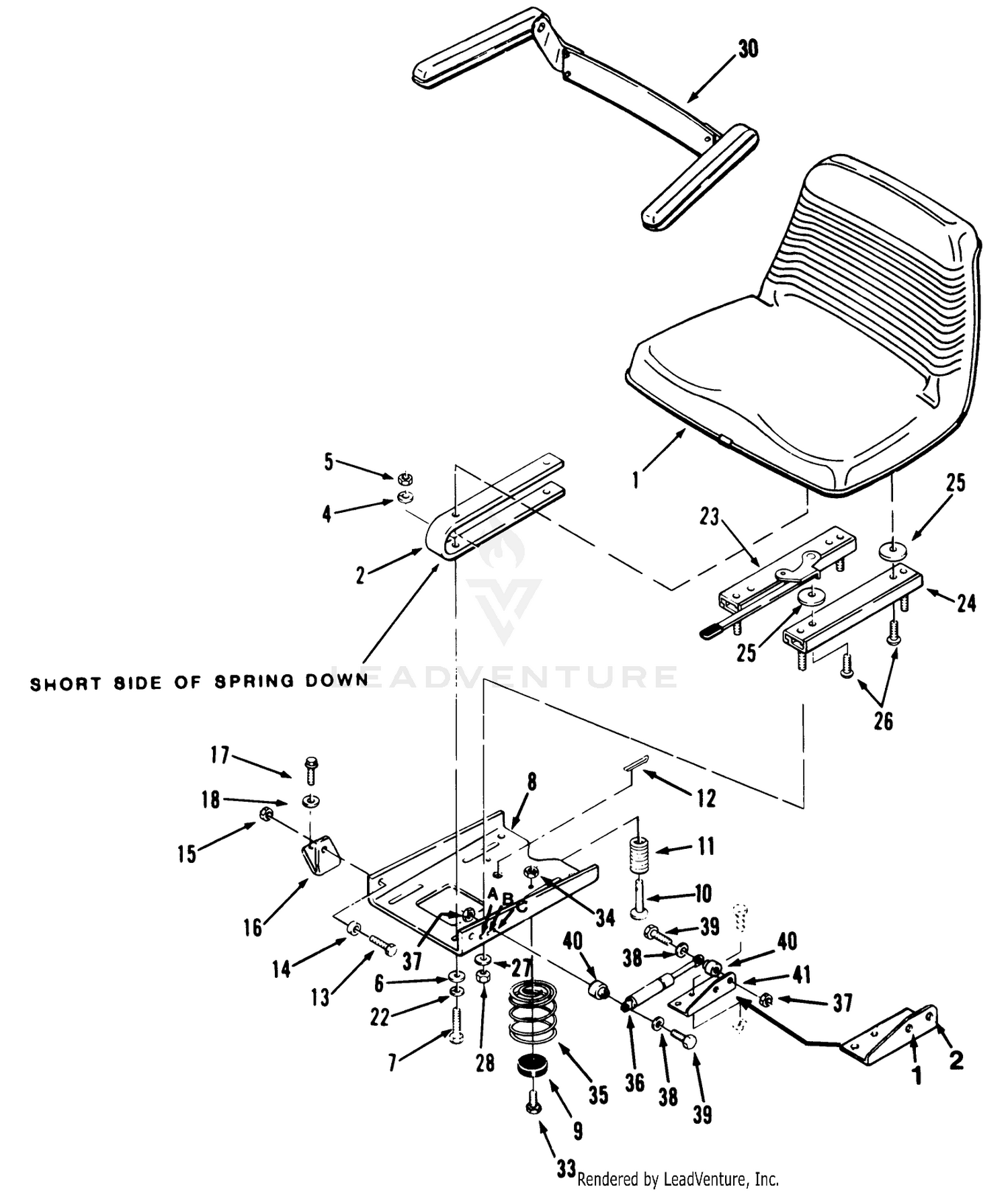

Assembly diagram
Схема сборки, где используется деталь

Used in (37 assemblies)

BrandAssemblyPathRef
TCM Seat Toro Commercial Equipment / Riding Products / 1990 / 41-20O801, 520-8 Garden Tra 2
TCM Seat Toro Commercial Equipment / Riding Products / 1990 / 41-20OE01, 520-H Garden Tra 2
TCM Seat Toro Commercial Equipment / Riding Products / 1991 / 41-20OE02, 520-H Garden Tra 2
TCM Seat Toro Commercial Equipment / Riding Products / 1992 / 41-20OE03, 520-H Garden Tra 2
TCM Seat Toro Commercial Equipment / Riding Products / 1992 / R1-16O804, 316-8 Garden Tra 2
TCM Seat Assembly Toro Commercial Equipment / Riding Products / 1993 / 30610, Proline 120, 1993 (S 9
TCM Seat Toro Commercial Equipment / Riding Products / 1993 / 73420, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1993 / 73421, 416-H Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1993 / 73440, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1993 / 73501, 520-H Garden Tractor 2
TCM Seat Assembly Toro Commercial Equipment / Riding Products / 1994 / 30610, Proline 120, 1994 (S 9
TCM Seat Toro Commercial Equipment / Riding Products / 1994 / 73420, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1994 / 73421, 416-H Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1994 / 73440, 416-8 Garden Tractor 9
TCM Seat, Fender And Fender Supports Toro Commercial Equipment / Riding Products / 1994 / 73501, 520-H Garden Tractor 35
TCM Seat Assembly Toro Commercial Equipment / Riding Products / 1995 / 30610, Proline 120, 1995 (S 9
TCM Seat Assembly Toro Commercial Equipment / Riding Products / 1995 / 30610, Proline 120, 1995 (S 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73420, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73420, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73420, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73421, 416-H Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73421, 416-H Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73440, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1995 / 73440, 416-8 Garden Tractor 9
TCM Seat, Fender And Fender Supports Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor 35
TCM Seat, Fender And Fender Supports Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor 35
TCM Seat, Fender And Fender Supports Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor 35
TCM Seat, Fender And Fender Supports Toro Commercial Equipment / Riding Products / 1995 / 73501, 520-H Garden Tractor 35
TCM Seat Toro Commercial Equipment / Riding Products / 1996 / 73420, 416-8 Garden Tractor 9
TCM Seat Toro Commercial Equipment / Riding Products / 1996 / 73421, 416-H Garden Tractor 9
TCM Fender, Seat Toro Commercial Equipment / Riding Products / 1996 / 73422, 416-8 Garden Tractor 23
TCM Fender, Seat Toro Commercial Equipment / Riding Products / 1996 / 73423, 416-H Garden Tractor 23
TCM Seat, Fender And Fender Supports Toro Commercial Equipment / Riding Products / 1996 / 73501, 520-H Garden Tractor 35
TCM Fender, Seat Toro Commercial Equipment / Riding Products / 1996 / 73502, 520-H Garden Tractor 23
TCM Fender, Seat Tail Lights Toro Commercial Equipment / Riding Products / 1997 / 73422, 416-8 Garden Tractor 23
TCM Fender, Seat Tail Lights Toro Commercial Equipment / Riding Products / 1997 / 73423, 416-H Garden Tractor 23
TCM Fender, Seat Tail Lights Toro Commercial Equipment / Riding Products / 1997 / 73502, 520-H Garden Tractor 23
