Home / OPE / Part 08000605

08000605

DECAL, BELT DIAGRAM Price: $10.95

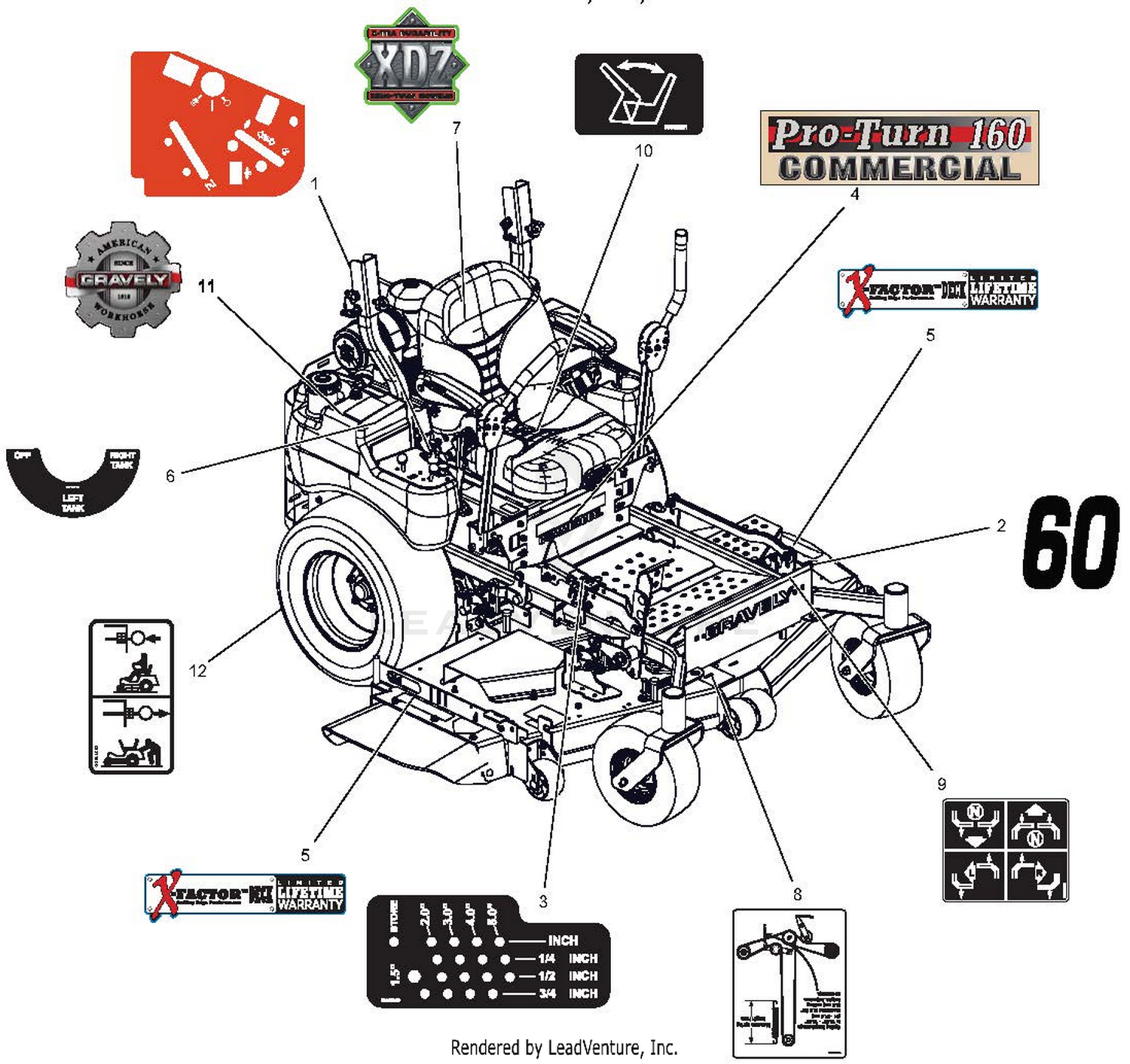

Assembly diagram
Схема сборки, где используется деталь

Used in (21 assemblies)

BrandAssemblyPathRef
GRV Decals - Style, Pro-Turn 160 Gravely / Gravely Zero Turn / Pro-Turn 100 / 991081 (040000 - 040999) Pro-Turn 1 8
GRV Decals - Style, Pro-Turn 160 Gravely / Gravely Zero Turn / Pro-Turn 100 / 991081 (041000 - 999999) Pro-Turn 1 8
GRV Decals - Style, Pro-Turn 160 Gravely / Gravely Zero Turn / Pro-Turn 100 / 991097 (040000 - 040999) Pro-Turn 1 11
GRV Decals - Style, Pro-Turn 160 Gravely / Gravely Zero Turn / Pro-Turn 100 / 991097 (041000 - 999999) Pro-Turn 1 11
GRV Decals - Style - 60" Gravely / Gravely Zero Turn / Pro-Turn 100 / 991121 (050000 - ) Pro-Turn 160 / D 7
GRV Decals - Style EFI - 60" Gravely / Gravely Zero Turn / Pro-Turn 100 / 991126 (050000 - ) Pro-Turn 160 / D 10
GRV Dacals - Style Gravely / Gravely Zero Turn / Pro-Turn 200 / 992206 (020000 - 029999) Pro-Turn 2 5
GRV Decals - Style - 60 Inch EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992233 (040000 - 040999) Pro-Turn 4 4
GRV Decals - Style - 60 Inch EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992233 (041000 - ) Pro-Turn 460 EFI 4
GRV Decals - Style - 60 Inch Non-EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992235 (040000 - 040999) Pro-Turn 4 7
GRV Decals - Style - 60 Inch Non-EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992235 (041000 - ) Pro-Turn 460 / D 7
GRV Decals - Style - 60 Inch Gravely / Gravely Zero Turn / Pro-Turn 400 / 992237 (040000 - 049999) Pro-Turn 4 1
GRV Decals - Style Gravely / Gravely Zero Turn / Pro-Turn 400 / 992237 (050000 - ) Pro-Turn 460 LP 1
GRV Decals - Style Cont'd Gravely / Gravely Zero Turn / Pro-Turn 400 / 992239 (030000 - 039999) Pro-Turn 4 1
GRV Decals - Style - 72 Inch Non-EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992239 (040000 - 040999) Pro-Turn 4 1
GRV Decals - Style - 72 Inch Non-EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992239 (041000 - ) Pro-Turn 472 / D 1
GRV Decals - Style - 72 Inch Gravely / Gravely Zero Turn / Pro-Turn 400 / 992243 (030000 - 039999) Pro-Turn 4 6
GRV Decals - Style - 72 Inch Gravely / Gravely Zero Turn / Pro-Turn 400 / 992243 (040000 - ) Pro-Turn 472 LP 6
GRV Decals - Style - 72 Inch EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992249 (040000 - 040999) Pro-Turn 4 8
GRV Decals - Style - 72 Inch EFI Gravely / Gravely Zero Turn / Pro-Turn 400 / 992249 (041000 - ) Pro-Turn 472 EFI 8
GRV Decals - Style Gravely / Gravely Zero Turn / Pro-Turn 400 / 992280 (050000 - ) Pro-Turn 460 LP 1
