04386551
BUMPER LOGO BACKING PLATE -BLK Price: $9.45

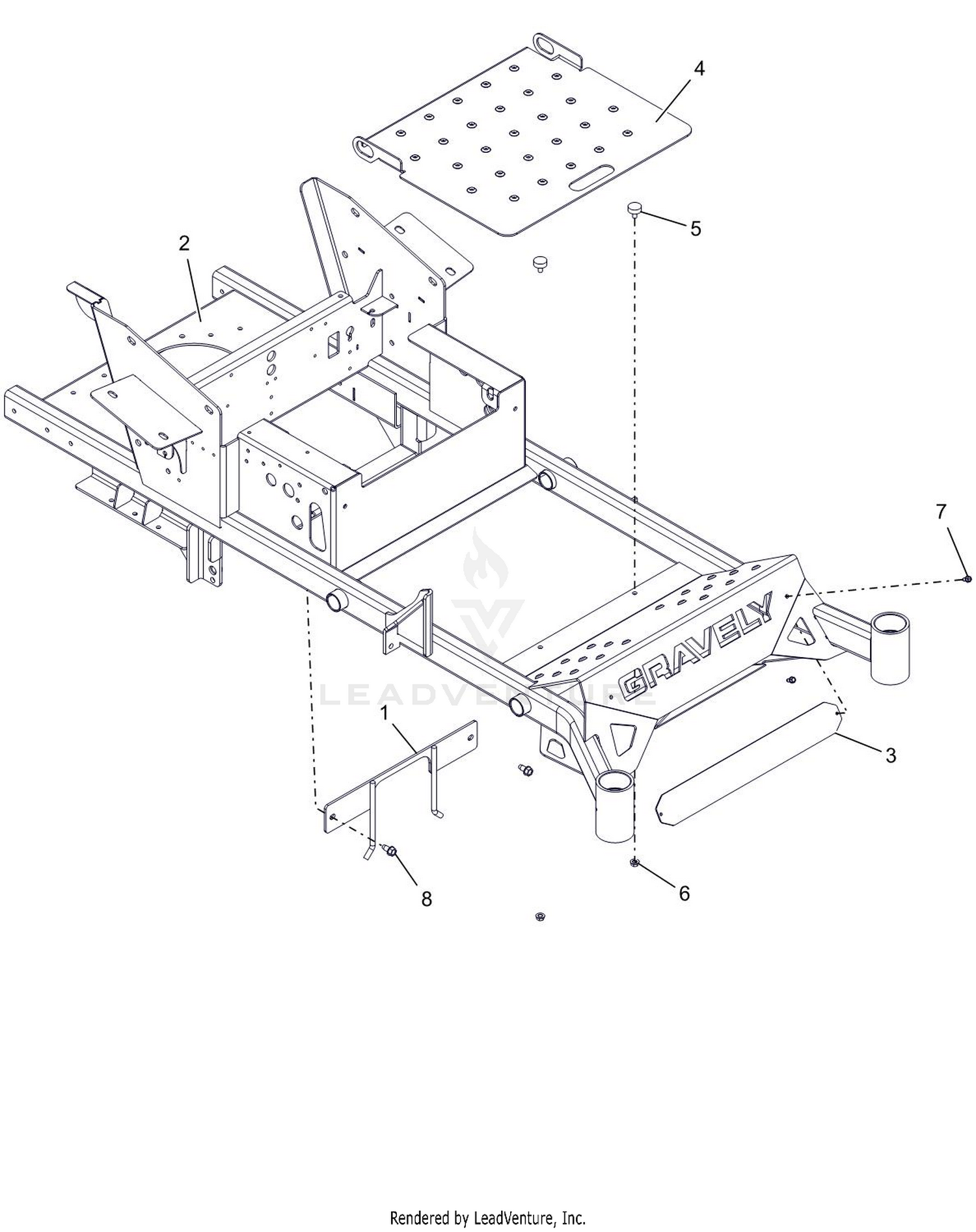

Схема сборки, где используется деталь
Used in (39 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| GRV | Main Frame - 48" And 52" | Gravely / Gravely Zero Turn / Pro-Turn / 991215 (000101 - 009999) Pro-Turn 48" / | 3 |
| GRV | Main Frame - 60" | Gravely / Gravely Zero Turn / Pro-Turn / 991217 (000101 - 009999) Pro-Turn 60" / | 3 |
| GRV | Main Frame - 48" & 52" | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991128 (000101 - 009999) Pro-Turn 1 | 2 |
| GRV | Main Frame - 60" | Gravely / Gravely Zero Turn / Pro-Turn 100 / 991130 (000101 - 009999) Pro-Turn 1 | 3 |
| GRV | Frame | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992206 (020000 - 029999) Pro-Turn 2 | 8 |
| GRV | Frame | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992206 (030000 - 030999) Pro-Turn 2 | 4 |
| GRV | Frame, Bumper, Sub-Frame And Footplate | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992252 (040000 - 040999) Pro-Turn 2 | 7 |
| GRV | Frame, Bumper, Sub-Frame And Footplate | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992252 (041000 - 999999) Pro-Turn 2 | 7 |
| GRV | Frame, Bumper, Sub-Frame And Footplate | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992255 (040000 - 040999) Pro-Turn 2 | 7 |
| GRV | Frame, Bumper, Sub-Frame And Footplate | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992255 (041000 - 999999) Pro-Turn 2 | 7 |
| GRV | Frame - 52" And 60" | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992267 (050000 - 050999) Pro-Turn 2 | 5 |
| GRV | Frame - 52" And 60" | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992267 (051000 - 059999) Pro-Turn 2 | 5 |
| GRV | Frame - 52" And 60" | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992267 (060000 - 061999) Pro-Turn 2 | 5 |
| GRV | Frame - 72" | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992270 (050000 - 050999) Pro-Turn 2 | 5 |
| GRV | Frame - 72" | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992270 (051000 - 059999) Pro-Turn 2 | 5 |
| GRV | Frame - 72" | Gravely / Gravely Zero Turn / Pro-Turn 200 / 992270 (060000 - 061999) Pro-Turn 2 | 5 |
| GRV | Frame and Subframe | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992207 (020000 - ) Pro-Turn 460 CAR | 9 |
| GRV | Frame | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992224 (030000 - ) Pro-Turn 452 EFI | 7 |
| GRV | Frame And Subframe | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992230 (000101 - 019999) Pro-Turn 4 | 9 |
| GRV | Frame - 52 Inch And 60 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992231 (040000 - 040999) Pro-Turn 4 | 7 |
| GRV | Frame - 52 Inch And 60 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992231 (041000 - ) Pro-Turn 452 EFI | 7 |
| GRV | Battery, Weights And Foot Plates | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992236 (001000 - 019999) Pro-Turn 4 | 7 |
| GRV | Frame | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992236 (040000 - 049999) Pro-Turn 4 | 10 |
| GRV | Frame And Subframe | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992237 (020000 - 029999) Pro-Turn 4 | 9 |
| GRV | Frame - 60 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992237 (040000 - 049999) Pro-Turn 4 | 8 |
| GRV | Frame | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992237 (050000 - ) Pro-Turn 460 LP | 8 |
| GRV | Frame Cont | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992239 (030000 - 039999) Pro-Turn 4 | 9 |
| GRV | Frame - 72 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992239 (040000 - 040999) Pro-Turn 4 | 9 |
| GRV | Frame - 72 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992239 (041000 - ) Pro-Turn 472 / F | 9 |
| GRV | Frame - 72 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992243 (030000 - 039999) Pro-Turn 4 | 9 |
| GRV | Frame - 72 Inch | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992243 (040000 - ) Pro-Turn 472 LP | 8 |
| GRV | Frame - 52" And 60" | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992273 (050000 - 050999) Pro-Turn 4 | 5 |
| GRV | Frame - 52" And 60" | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992273 (051000 - 059999) Pro-Turn 4 | 5 |
| GRV | Frame - 52" And 60" | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992273 (060000 - 061999) Pro-Turn 4 | 5 |
| GRV | Frame - 72" | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992276 (050000 - 050999) Pro-Turn 4 | 5 |
| GRV | Frame - 72" | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992276 (051000 - 059999) Pro-Turn 4 | 5 |
| GRV | Frame - 72" | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992276 (060000 - 061999) Pro-Turn 4 | 5 |
| GRV | Frame | Gravely / Gravely Zero Turn / Pro-Turn 400 / 992280 (050000 - ) Pro-Turn 460 LP | 8 |
| GRV | Front Casters | Gravely / Stand-on Lawn Mowers / Pro-Stance (Fixed Deck) / 994161 (002000 - 2049 | 11 |
