00166500
DECAL, BELT DIAGRAM COMPACT-Z Price: $10.45

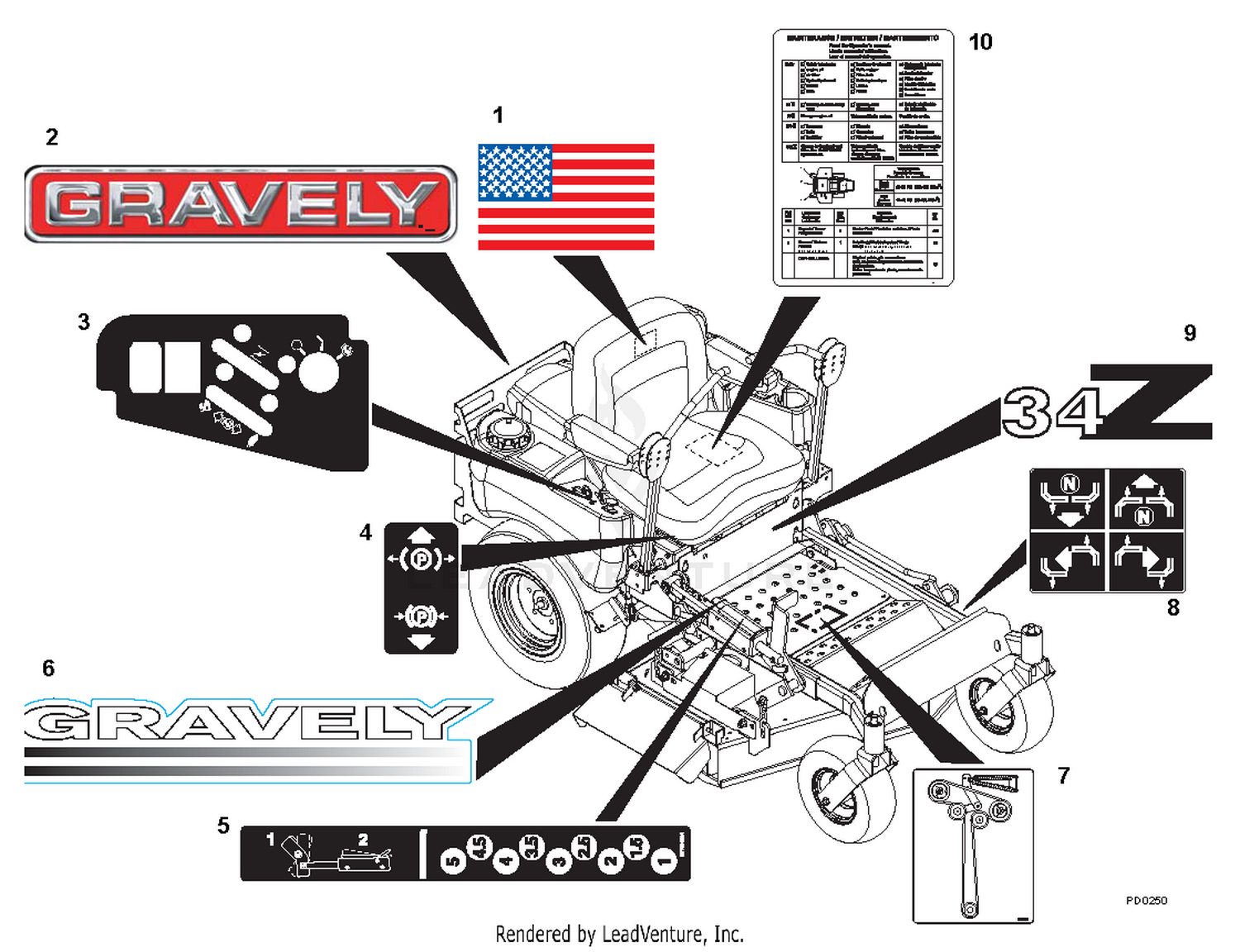

Схема сборки, где используется деталь
Used in (11 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| GRV | Decals - Con't | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991022 (003000 - ) PM34M, | 7 |
| GRV | Decals - Con't | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991071 (000101 - ) Compact | 6 |
| GRV | Decals - Con't | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991088 (000101 - 019999) C | 6 |
| GRV | Decals - Style | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991088 (020000 - 040999) C | 6 |
| GRV | Decals Cont'd | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991088 (041000 - 049999) C | 6 |
| GRV | Decals Cont'd | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991088 (050000 - 059999) C | 6 |
| GRV | Decals - Style | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991088 (060000 - ) Compact | 6 |
| GRV | Decals 2 | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991301 (000101 - 000500) C | 6 |
| GRV | Decals (2) | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991301 (003000 - 019999) C | 6 |
| GRV | Decals - Style | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 991301 (020000 - ) Compact | 6 |
| GRV | Decals (Part 2) | Gravely / Gravely Zero Turn / Promaster 34Z And 44Z / 992056 (000101 - 001499) P | 7 |
