Drive
Axle (USA and Europe) 504151894
Схема сборки, где используется деталь
Used in (19 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|

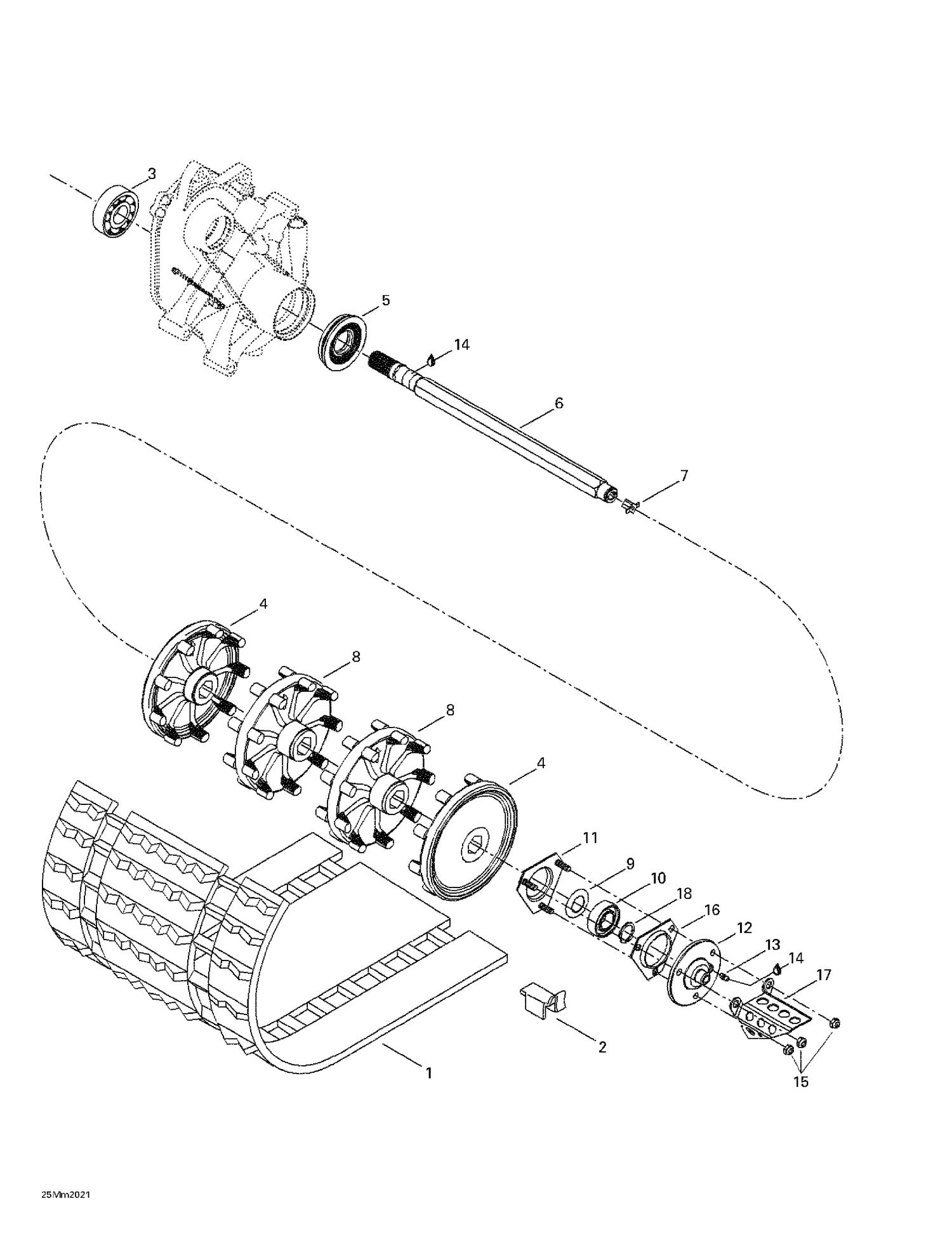

| SKI_DOO_EN_US | 05- Drive Axle And Track | Ski-Doo / 2000 / Grand Touring / Grand Touring 600, 2000 / 05- Drive Axle And Tr | 504151894 |
| SKI_DOO_EN_US | 09- Options | Ski-Doo / 2003 / Skandic / Skandic 500F, 2003 / 09- Options | 417300152 |
| SKI_DOO_EN_US | 05- Chaincase | Ski-Doo / 2003 / Summit / Summit 550 F, 2003 / 05- Chaincase | 504151859 |
| SKI_DOO_EN_US | 09- Options (GSX Sport & GSX Limited ) | Ski-Doo / 2004 / GSX / GSX 500SS, 2004 / 09- Options (GSX Sport & GSX Limited ) | 417300152 |
| SKI_DOO_EN_US | 09- Options (GSX Sport 1+1 & GSX Limited 1+1) | Ski-Doo / 2004 / GSX / GSX 500SS, 2004 / 09- Options (GSX Sport 1+1 & GSX Limite | 417300152 |
| SKI_DOO_EN_US | 09- Options (GSX Sport & GSX Limited) | Ski-Doo / 2004 / GSX / GSX 600 HO SDI, 2004 / 09- Options (GSX Sport & GSX Limit | 417300152 |
| SKI_DOO_EN_US | 09- Options (GSX Sport 1+1 & GSX Limited 1+1) | Ski-Doo / 2004 / GSX / GSX 600 HO SDI, 2004 / 09- Options (GSX Sport 1+1 & GSX L | 417300152 |
| SKI_DOO_EN_US | 09- Options | Ski-Doo / 2004 / Legend / Legend 380F, 2004 / 09- Options | 417300152 |
| SKI_DOO_EN_US | 09- Options Legend GT SDI | Ski-Doo / 2004 / Legend / Legend 600 HO SDI, 2004 / 09- Options Legend GT SDI | 417300152 |
| SKI_DOO_EN_US | 09- Options Legend SDI | Ski-Doo / 2004 / Legend / Legend 600 HO SDI, 2004 / 09- Options Legend SDI | 417300152 |
| SKI_DOO_EN_US | 09- Options | Ski-Doo / 2004 / Legend / Legend V-1000, 2004 / 09- Options | 417300152 |
| SKI_DOO_EN_US | 09- Options (GT) | Ski-Doo / 2004 / Legend / Legend V-1000, 2004 / 09- Options (GT) | 417300152 |
| SKI_DOO_EN_US | 09- Options (MX Z) | Ski-Doo / 2004 / MX Z / MX Z 380F, 2004 / 09- Options (MX Z) | 417300152 |
| SKI_DOO_EN_US | 05- Drive System | Ski-Doo / 2004 / MX Z / MX Z 600 HO Renegade/Renegade X, 2004 / 05- Drive System | 504151857 |
| SKI_DOO_EN_US | 05- Drive System | Ski-Doo / 2004 / MX Z / MX Z 600 HO SDI, 2004 / 05- Drive System | 504151857 |
| SKI_DOO_EN_US | 09- Options | Ski-Doo / 2004 / MX Z / MX Z 600 HO SDI, 2004 / 09- Options | 417300152 |
| SKI_DOO_EN_US | 05- Drive System | Ski-Doo / 2004 / Summit / Summit 600 HO, 2004 / 05- Drive System | 504151857 |
| SKI_DOO_EN_US | 09- Options | Ski-Doo / 2004 / Summit / Summit 600 HO, 2004 / 09- Options | 417300152 |
| SKI_DOO_EN_US | 09- Options | Ski-Doo / 2005 / MX Z / MX Z 600 HO SDI Renegade, Early Intro, 2005 / 09- Option | 417300152 |
