518328153
RH Rear Arm Support

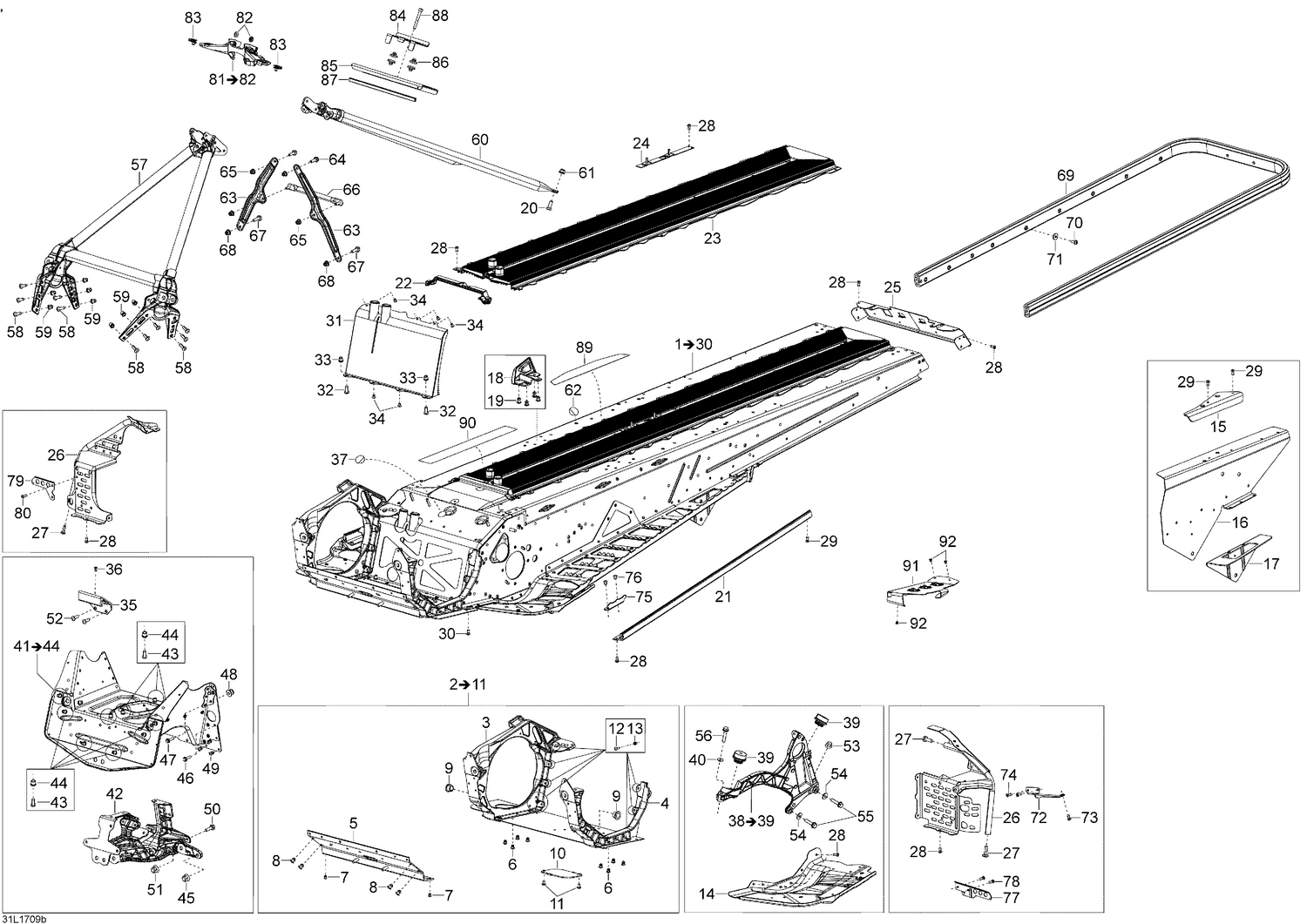

Схема сборки, где используется деталь
Used in (7 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Frame | Lynx / 2017 / Ranger / 49 Ranger ST (Explorer), 2017 000FDHB00 000FDHC00 / 09- F | 16 |
| LNX_EN_US | 09- Frame 600 ACE | Lynx / 2017 / Ranger / 49 Ranger STD, 2017 000FCHA00 000FCHB00 000FDHA00 000FDHF | 16 |
| LNX_EN_US | 09- Frame 600HO E-TEC | Lynx / 2017 / Ranger / 49 Ranger STD, 2017 000FCHA00 000FCHB00 000FDHA00 000FDHF | 14 |
| LNX_EN_US | 09- Frame 49RANGER - 600 ACE | Lynx / 2018 / 49 Ranger Series / 49 Ranger 600 ACE, 2018 000FDJA00 000FDJF00 / 0 | 16 |
| LNX_EN_US | 09- Frame 49RANGER - 600HO E-TEC | Lynx / 2018 / 49 Ranger Series / 49 Ranger 600 HO E-TEC, 2018 000FCJA00 000FCJB0 | 13 |
| LNX_EN_US | 09- Frame 49RANGER - 900 ACE | Lynx / 2018 / 49 Ranger Series / 49 Ranger 900 ACE, 2018 000FDJB00 000FDJC00 / 0 | 16 |
| LNX_EN_US | 09- Frame - 49 Ranger - 600 ACE | Lynx / 2019 / 004 - 49 Ranger Series / 002 - 49 Ranger 600 ACE, 2019 000FDKA00 0 | 16 |
