518323804
Center Plate

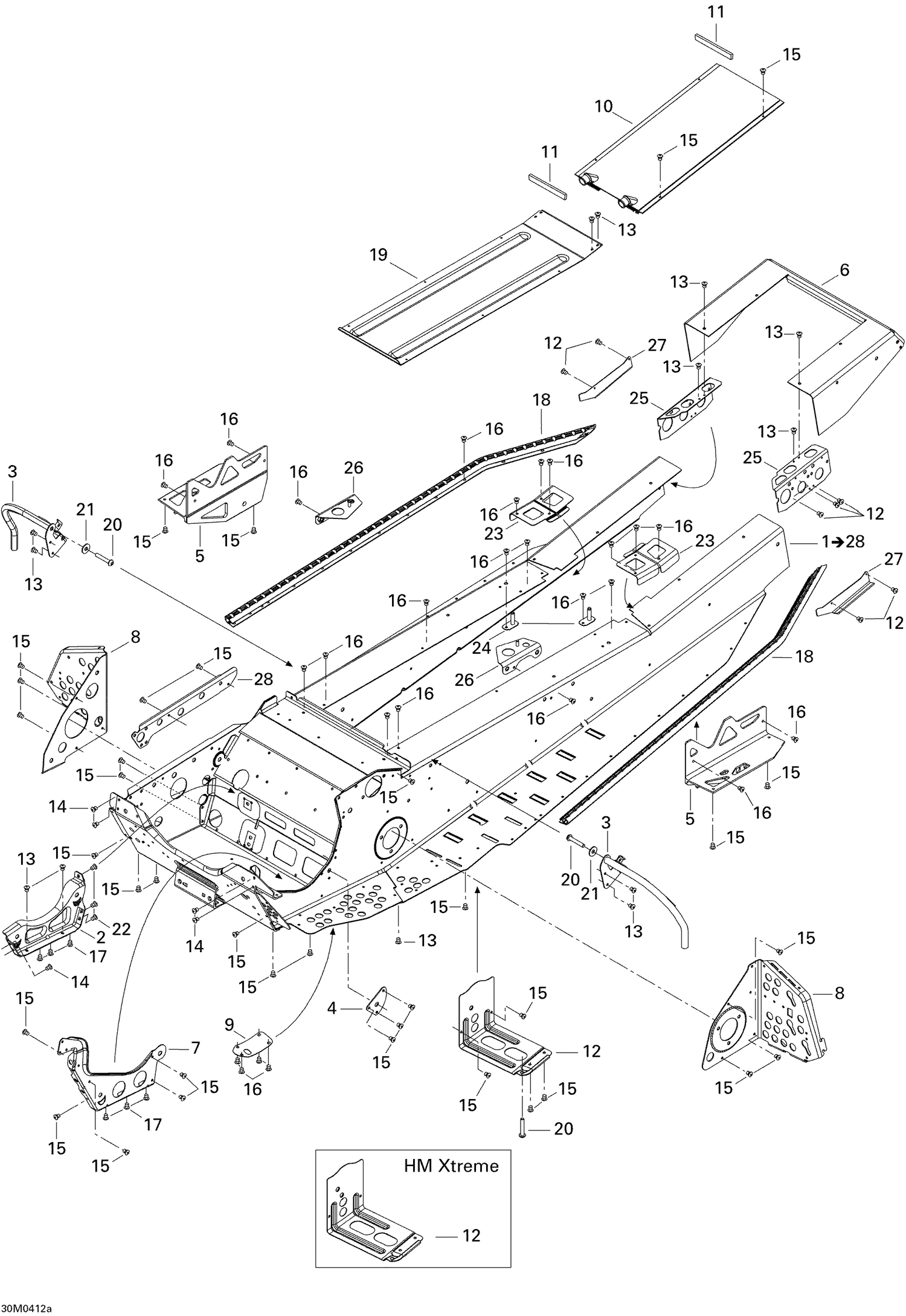

Схема сборки, где используется деталь
Used in (9 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Frame 2 | Ski-Doo / 2004 / Summit / Summit 600 HO, 2004 / 09- Frame 2 | 19 |
| SKI_DOO_EN_US | 09- Frame 600HO | Ski-Doo / 2005 / Summit / Summit 600 HO, 2005 / 09- Frame 600HO | 25 |
| SKI_DOO_EN_US | 09- Frame 800HO | Ski-Doo / 2005 / Summit / Summit 800 HO, 2005 / 09- Frame 800HO | 25 |
| SKI_DOO_EN_US | 09- Frame RT 151 | Ski-Doo / 2006 / Summit / Summit 1000 SDI, Highmark & Highmark X, 2006 000CA6A00 | 33 |
| SKI_DOO_EN_US | 09- Frame RT 162 | Ski-Doo / 2006 / Summit / Summit 1000 SDI, Highmark & Highmark X, 2006 000CA6A00 | 33 |
| SKI_DOO_EN_US | 09- Frame 600HO | Ski-Doo / 2006 / Summit / Summit 600 HO SDI, Adrenaline, 2006 000CL6A00 000CL6B0 | 25 |
| SKI_DOO_EN_US | 09- Frame 800HO | Ski-Doo / 2006 / Summit / Summit 800 HO, Adrenaline & X, 2006 000CG6A00 000CG6B0 | 25 |
| SKI_DOO_EN_US | 09- Frame RT 151 | Ski-Doo / 2007 / Summit / Summit Highmark & Highmark X 1000 SDI, 2007 / 09- Fram | 33 |
| SKI_DOO_EN_US | 09- Frame RT 162 | Ski-Doo / 2007 / Summit / Summit Highmark & Highmark X 1000 SDI, 2007 / 09- Fram | 33 |
