Home / BRP / Part 517307619

517307619

Heat Shield

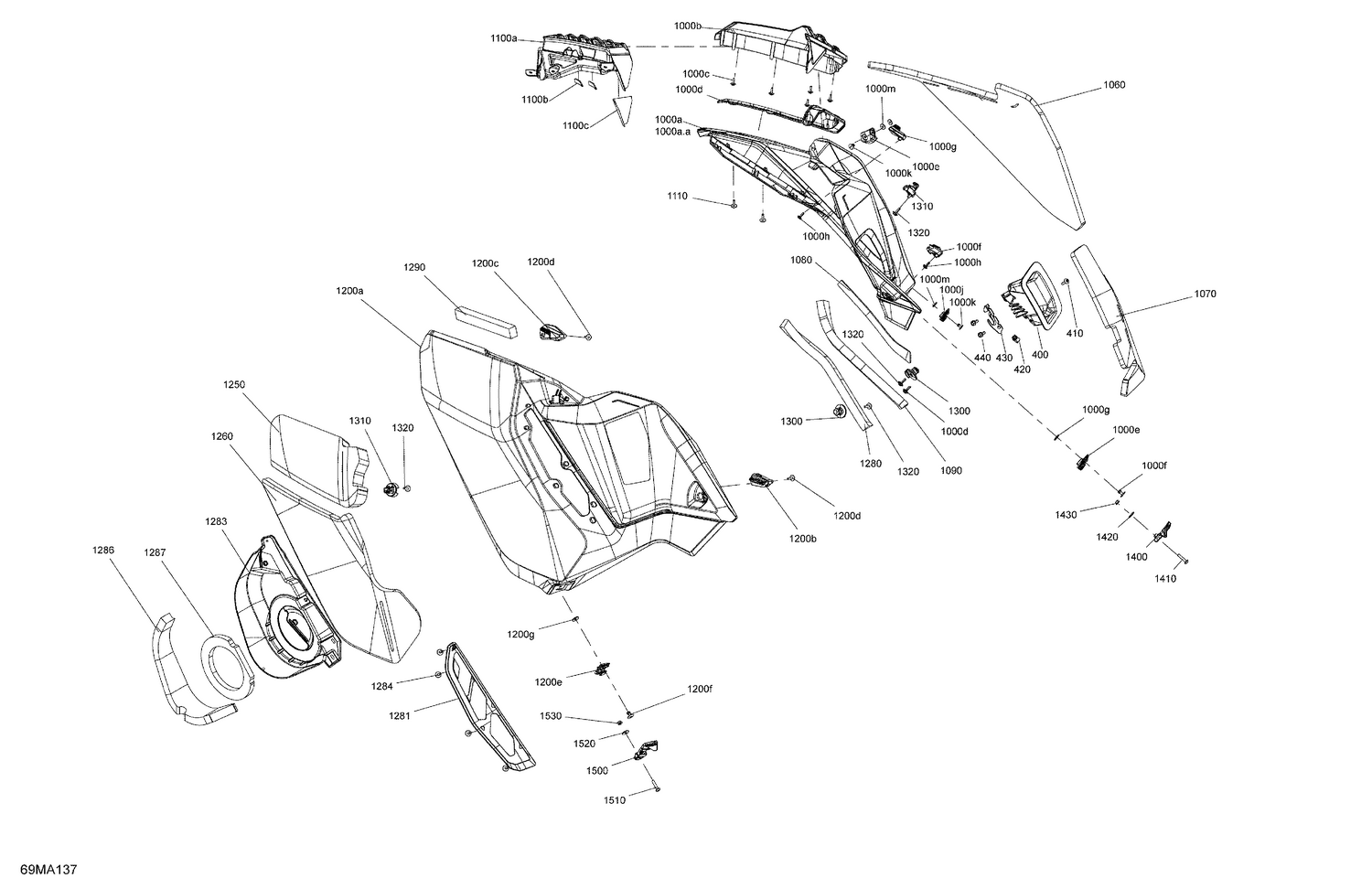

Assembly diagram
Схема сборки, где используется деталь

Used in (5 assemblies)

BrandAssemblyPathRef
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2021 / 003 - SKI-DOO - North America - FREERIDE Series / 003 - FREERID 1100c
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2021 / 008 - SKI-DOO - North America - SUMMIT Series / 010 - SUMMIT 85 1100c
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2022 / 003 - SKI-DOO - North America - FREERIDE Series / 003 - FREERID 1100c
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2022 / 009 - SKI-DOO - North America - SUMMIT Series / 014 - SUMMIT 85 1100c
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2022 / 009 - SKI-DOO - North America - SUMMIT Series / 016 - SUMMIT 85 1100c
