505073497
S2 Modul, Ass'y This part replaces 505072981.

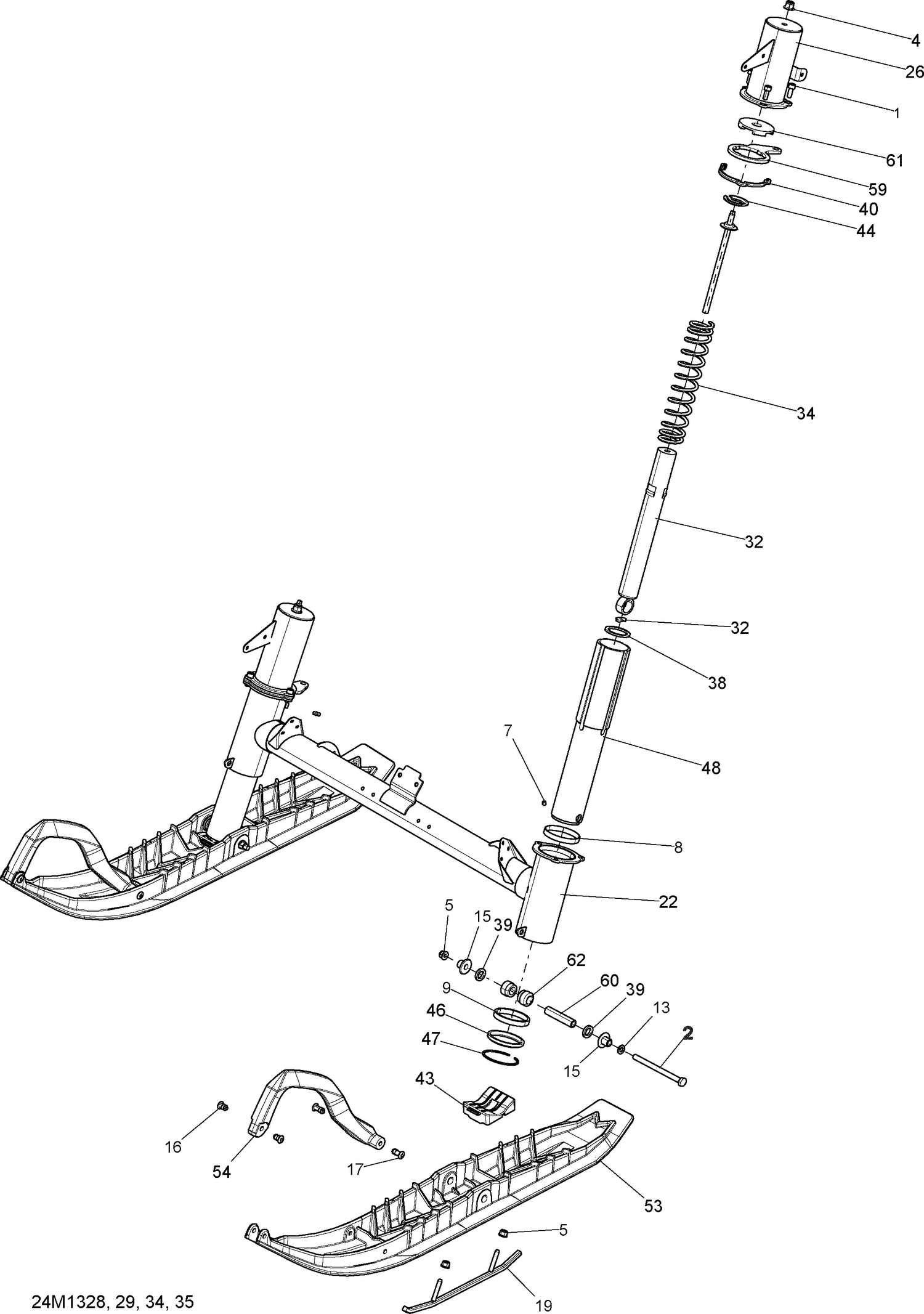

Схема сборки, где используется деталь
Used in (16 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2013 / TUNDRA / TUNDRA LT 600 ACE (4-TEMPS) XP, 2013 000GHDA00 000GHDB | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2013 / TUNDRA / TUNDRA SPORT & LT 550F XP, 2013 000GDDA00 000GDDB00 00 | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2013 / TUNDRA / TUNDRA SPORT 600 ACE (4-TEMPS) XP, 2013 000GMDA00 / 07 | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2013 / TUNDRA / TUNDRA XTREME 600HOE XP, 2013 000GLDA00 000GLDB00 / 07 | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2014 / TUNDRA / TUNDRA LT 550F XU, 2014 000GDEA00 000GDEB00 000GKEA00 | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2014 / TUNDRA / TUNDRA LT 600ACE XU, 2014 000GHEA00 000GHEB00 / 07- Fr | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2014 / TUNDRA / TUNDRA SPORT 600ACE XU, 2014 000GMEA00 / 07- Front Sus | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2014 / TUNDRA / TUNDRA XTREME 600HOE XU, 2014 000GLEA00 000GLEB00 / 07 | 22 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski _24M1529 | Ski-Doo / 2015 / TUNDRA / Tundra LT 550F XU-154, 2015 000GDFA00 000GDFB00 / 07- | 29 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski _24M1536 | Ski-Doo / 2015 / TUNDRA / Tundra LT 600ACE XU154, 2015 000GNFA00 000GNFB00 / 07- | 29 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski _24M1528 | Ski-Doo / 2015 / TUNDRA / Tundra Sport 550F XU-137, 2015 000GKFA00 / 07- Front S | 29 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski _24M1535 | Ski-Doo / 2015 / TUNDRA / Tundra Sport 600ACE XU137, 2015 000GMFA00 / 07- Front | 29 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski _24M1530 | Ski-Doo / 2015 / TUNDRA / Tundra Xtreme 600HOETEC XU-154, 2015 000GLFA00 000GLFB | 29 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2016 / TUNDRA Family / TUNDRA - LT-Sport_2-STROKE, 2016 000GDGA00 000G | 30 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2016 / TUNDRA Family / TUNDRA - LT-Sport_4-STROKE, 2016 000GMGA00 000G | 30 |
| SKI_DOO_EN_US | 07- Front Suspension And Ski | Ski-Doo / 2016 / TUNDRA Family / TUNDRA - Xtreme, 2016 000GLGA00 / 07- Front Sus | 30 |
