502008469
Front Bottom Pan

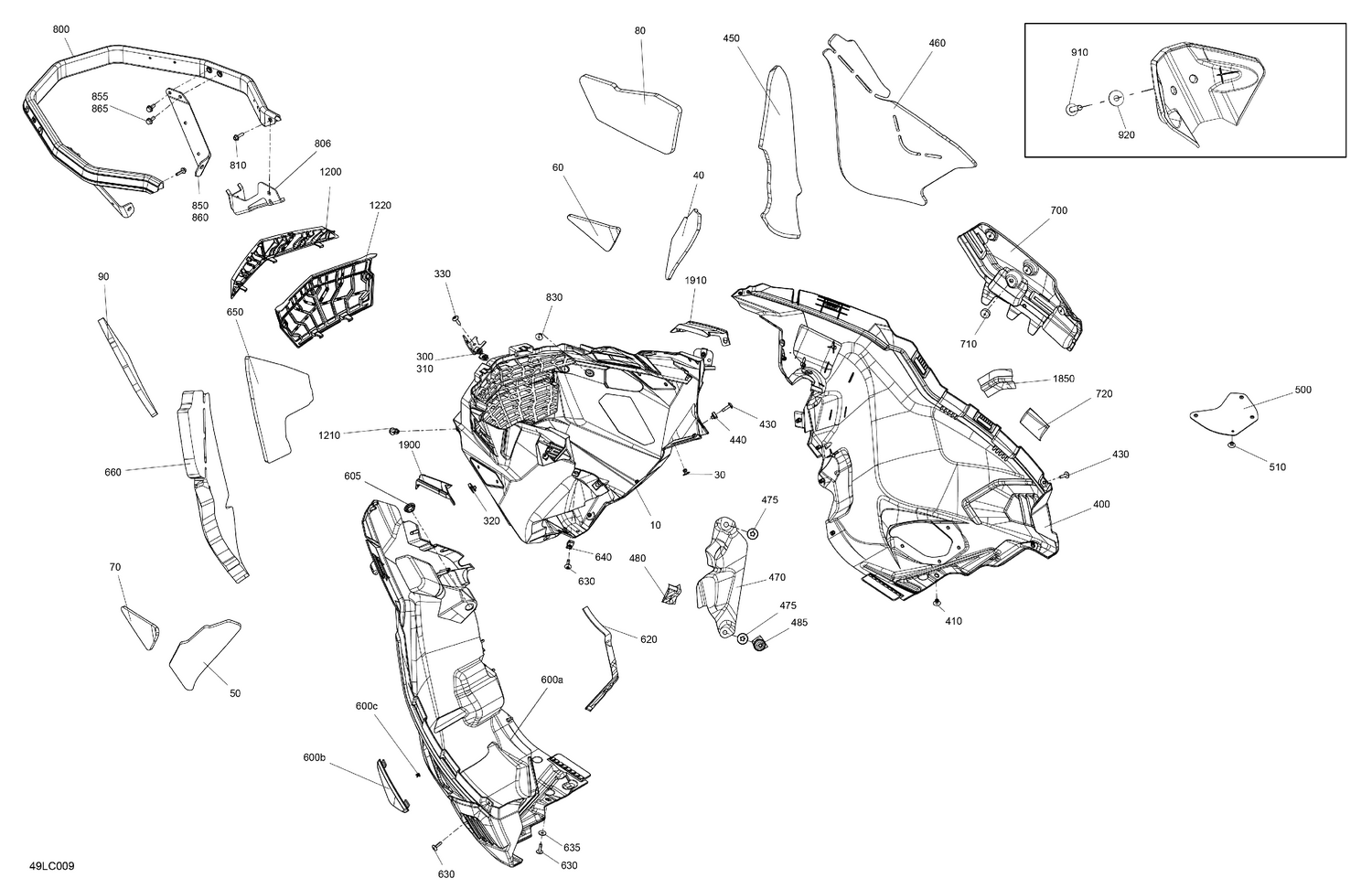

Схема сборки, где используется деталь
Used in (5 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 003 - 69 Ranger Series / 003 - 69 RANGER LIMITED 900 ACE TURBO, 20 | 10 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 003 - 69 Ranger Series / 007 - 69 RANGER SNOWCRUISER 900 ACE TURBO | 10 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 005 - Commander Series / 002 - COMMANDER STD 900 ACE TURBO, 2023 0 | 10 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 005 - Commander Series / 006 - COMMANDER GRAND TOURER 900 ACE TURB | 10 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 005 - Commander Series / 008 - COMMANDER GLX 5900 900 ACE TURBO R, | 10 |
