502008145
Front Bottom Pan

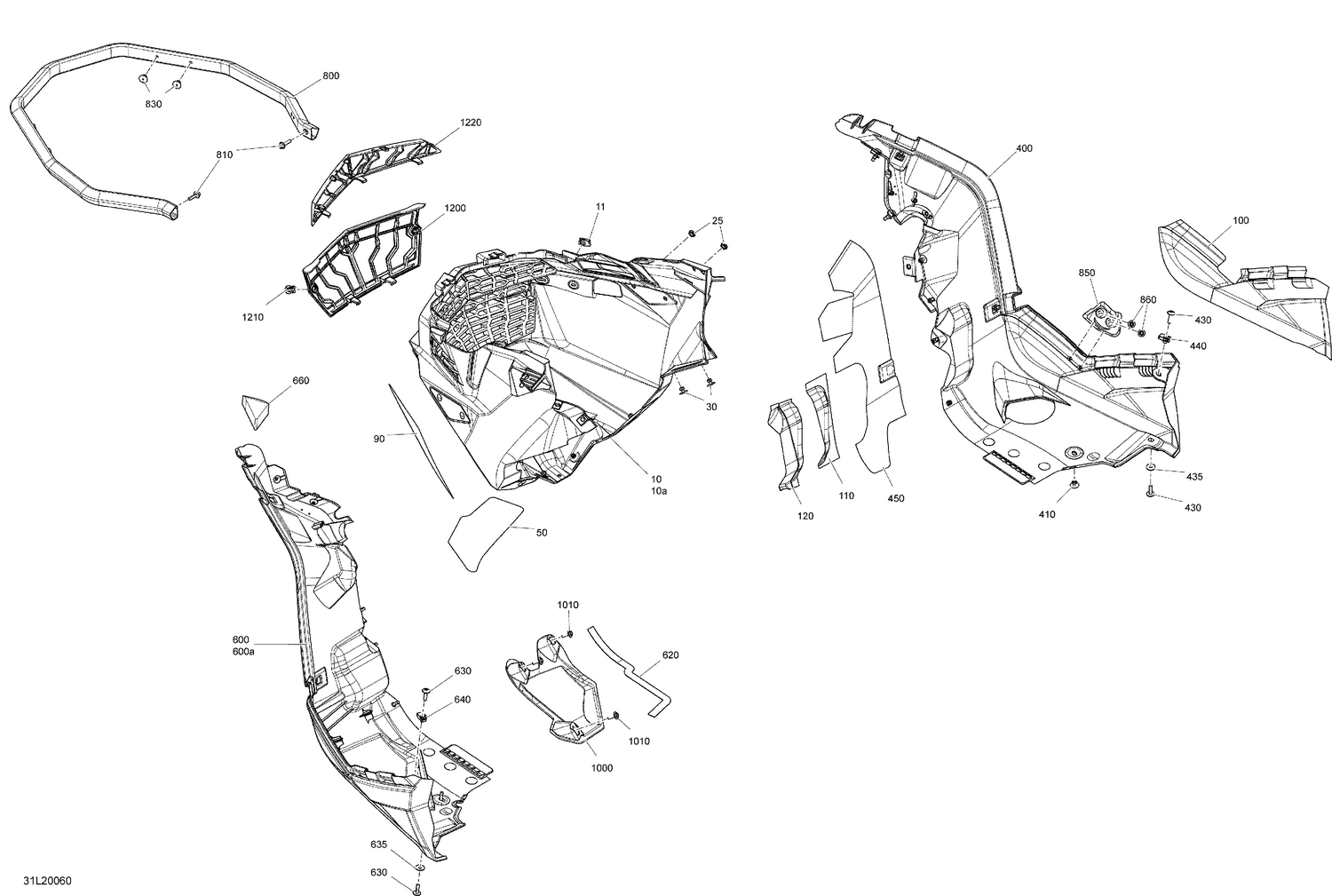

Схема сборки, где используется деталь
Used in (5 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Body - Bottom Pan - Racing | Lynx / 2020 / 005 - RAVE Series / 003 - RAVE RS 600RS E-TEC, 2020 000SFLB00 / 09 | 10a |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2021 / 006 - RAVE Series / 001 - RAVE 600R E-TEC - ENDURO, 2021 000SCMA00 | 10 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2021 / 006 - RAVE Series / 004 - RAVE RS 600RS E-TEC, 2021 000SFMB00 / 07 | 10a |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2022 / 006 - RAVE Series / 001 - RAVE 600R E-TEC - ENDURO, 2022 000SCNA00 | 10 |
| LNX_EN_US | 07- Body - Bottom Pan | Lynx / 2023 / 006 - RAVE Series / 001 - RAVE ENDURO - 600R E-TEC, 2023 000SCPA00 | 10 |
