502007990
Bottom Pan R.H. Ce This part replaces 502007180.

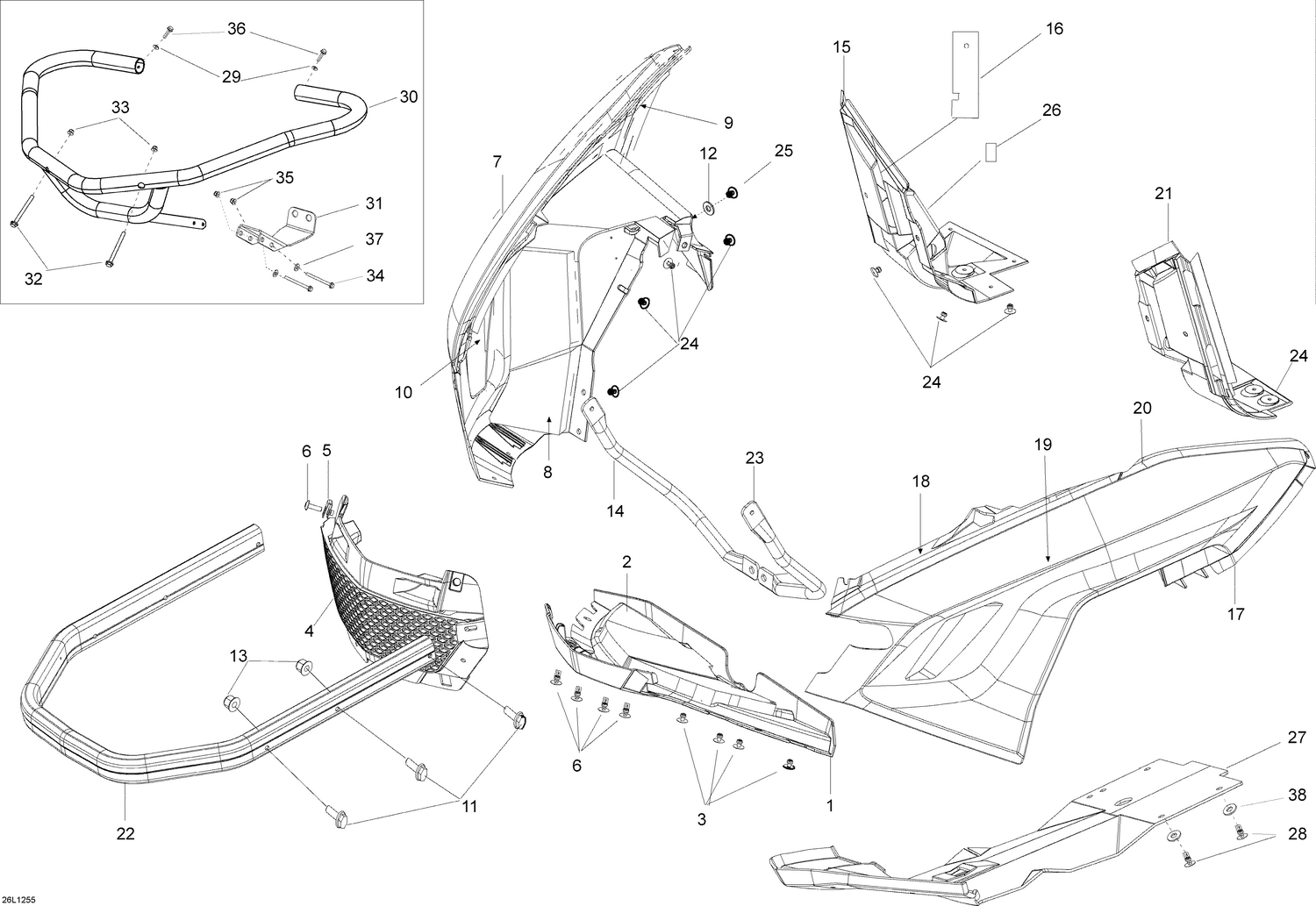

Схема сборки, где используется деталь
Used in (4 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 09- Bottom Pan | Lynx / 2012 / Adventure / Adventure GT 1200 4-TEC CE, 2012 / 09- Bottom Pan | 7 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2013 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2013 000LYDE00 / 09- Bottom | 7 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2014 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2014 000LYEE00 / 09- Bottom | 7 |
| LNX_EN_US | 09- Bottom Pan | Lynx / 2015 / Ranger / 69 Ranger Alpine 1200 4-TEC, 2015 000LYFE00 / 09- Bottom | 7 |
