420966804
Pick up ass'y

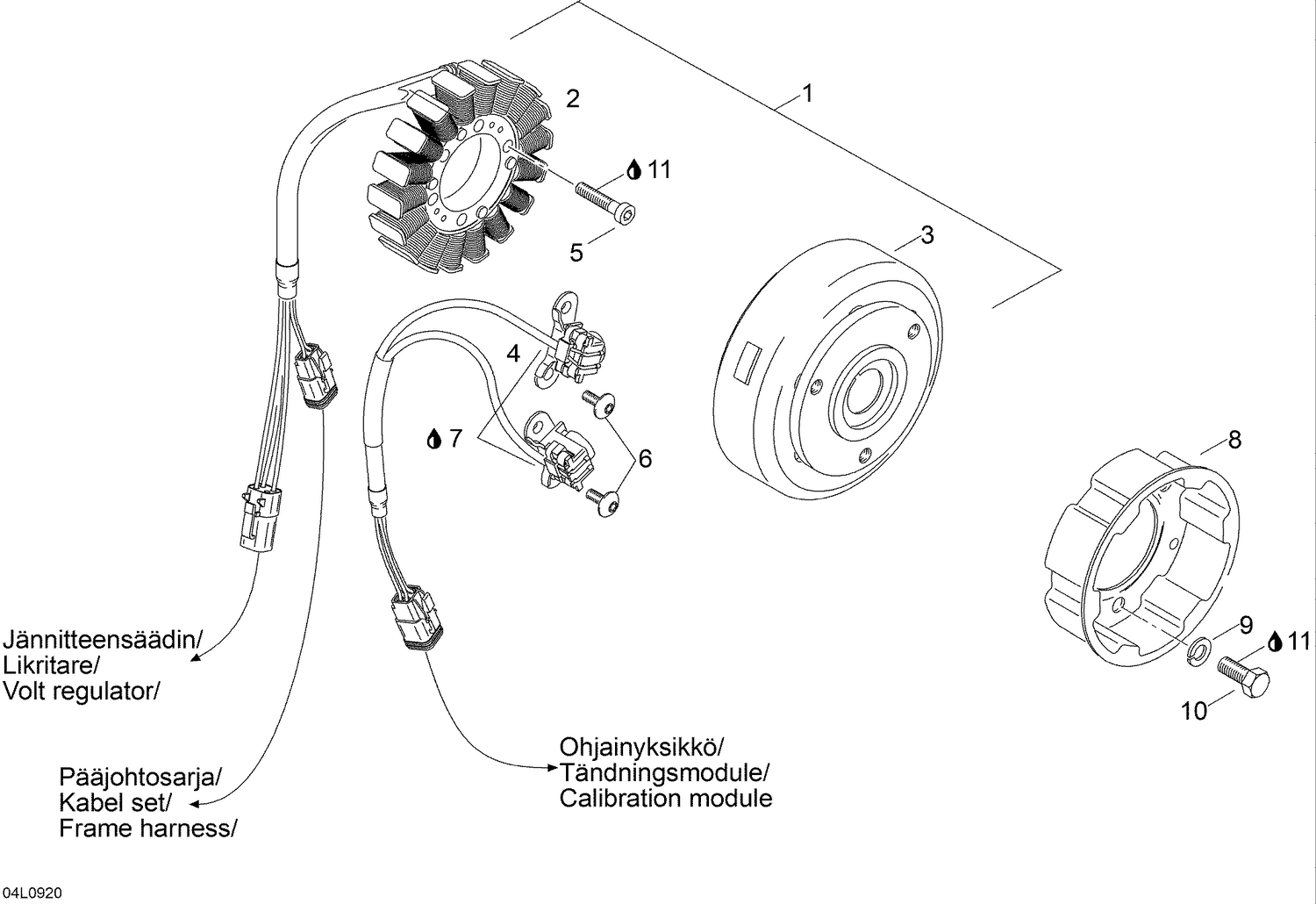

Схема сборки, где используется деталь
Used in (20 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 01- Ignition | Lynx / 2009 / Rave / Rave 600, 2009 / 01- Ignition | 4 |
| LNX_EN_US | 03- Magneto | Lynx / 2010 / Rave / Rave 600, 2010 / 03- Magneto | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2008 / GSX / GSX LTD 800R, 2008 000DA8A00 / 03- Magneto | 4 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2008 / GSX / GSX SPORT 500SS, 2008 000DC8A00 / 03- Magneto | 4 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2009 / GSX / GSX Sport 500SS, 2009 000DC9A00 / 03- Magneto | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2010 / Grand-Touring / Grand-Touring Sport 600, 2010 000EDAA00 / 03- M | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2011 / Grand-Touring / Grand Touring Sport 600 XP, 2011 000EDBA00 / 03 | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2012 / Grand-Touring / Grand Touring Sport 600 XP, 2012 000EDCA00 / 03 | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2013 / GRAND TOURING / GRAND TOURING SPORT 600 XP, 2013 000EDDA00 / 03 | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2013 / SUMMIT / SUMMIT SPORT 800R PTEK XP, 2013 000CBDA00 000CBDB00 / | 2b |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2014 / GRAND TOURING / GRAND TOURING SPORT 600 XP, 2014 000EDEA00 / 03 | 3 |
| SKI_DOO_EN_US | 03- Magneto | Ski-Doo / 2014 / SUMMIT / SUMMIT SPORT 800R POWERTEK XP 154, 2014 000CBEA00 000C | 2b |
| SKI_DOO_EN_US | 03- Magneto _04R1519 | Ski-Doo / 2015 / MX Z / MXZ Sport 600 XP120, 2015 000BHFA00 000BHFB00 / 03- Magn | 3 |
| SKI_DOO_EN_US | 03- Magneto _04R1523 | Ski-Doo / 2015 / SUMMIT / Summit Sport 800RPTEK XP154, 2015 000CBFA00 / 03- Magn | 2b |
| SKI_DOO_EN_US | 03- Magneto - 600 CARB | Ski-Doo / 2016 / MXZ Family / MXZ 600 CARB 000BHGA00 000BHGB00 / 03- Magneto - 6 | 3 |
| SKI_DOO_EN_US | 03- Magneto - 800R PTEK | Ski-Doo / 2016 / SUMMIT Family / SUMMIT 800R P-TEK 000CBGA00 / 03- Magneto - 800 | 2b |
| SKI_DOO_EN_US | 03- Magneto - 600 CARB | Ski-Doo / 2017 / MXZ Family / MXZ - 2-STROKE - 600 CARB, 2017 000BHHA00 000BHHB0 | 3 |
| SKI_DOO_EN_US | 03- Magneto - 600 CARB | Ski-Doo / 2018 / SKI-DOO - MXZ Series / 1- MXZ 600 CARB, 2018 000BHJB00 / 03- Ma | 3 |
| SKI_DOO_EN_US | 03- Magneto - 600 CARB | Ski-Doo / 2019 / SKI-DOO - MXZ Series / 001 - MXZ 600 CARB, 2019 000BHKA00 / 03- | 3 |
| SKI_DOO_EN_US | 10- Electric - Magneto - 600 CARB | Ski-Doo / 2020 / 005 - SKI-DOO - North America - MXZ Series / 001 - MXZ 600 CARB | 3 |
