417119500
Snap ring

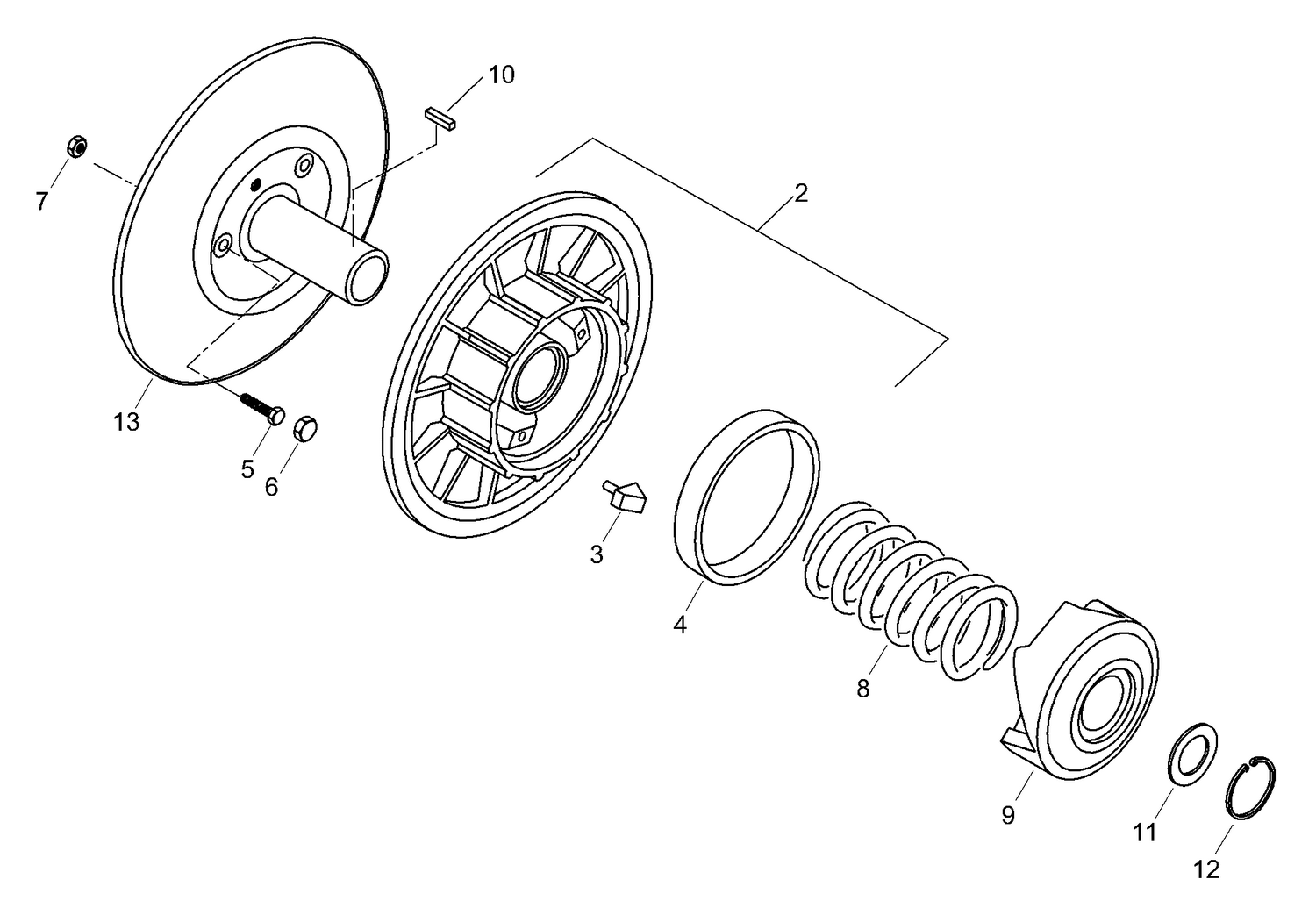

Схема сборки, где используется деталь
Used in (5 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 05- Driven Pulley | Lynx / 2003 / ST 550 F, 2003 / 05- Driven Pulley | 12 |
| LNX_EN_US | 05- Driven Pulley | Lynx / 2003 / ST 600, 2003 / 05- Driven Pulley | 12 |
| SKI_DOO_EN_US | 05- Driven Pulley | Ski-Doo / 1996 / Skandic / Skandic Wide Track, 1996 / 05- Driven Pulley | 10 |
| SKI_DOO_EN_US | 05- Driven Pulley | Ski-Doo / 1997 / Skandic Wide Track / Skandic Super Wide Track, 1997 / 05- Drive | 10 |
| SKI_DOO_EN_US | 05- Driven Pulley | Ski-Doo / 1997 / Skandic Wide Track / Skandic Wide Track, 1997 / 05- Driven Pull | 10 |
