305100100
Hex. Screw 1/4-20 x 3/4
Схема сборки, где используется деталь
Used in (4 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|

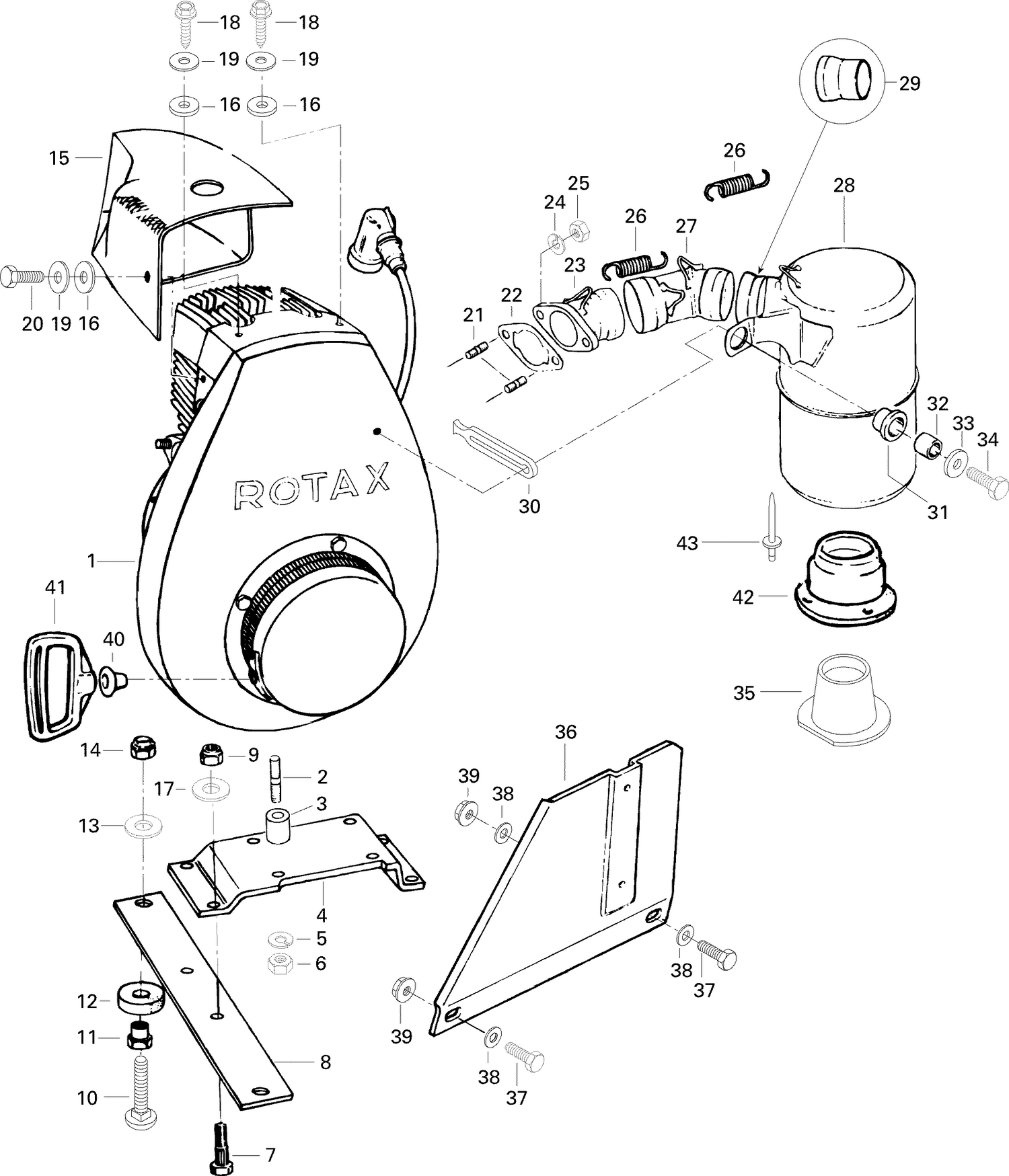

| SKI_DOO_EN_US | 01- Engine Support And Muffler | Ski-Doo / 1996 / Elan / Elan 247, 1996 / 01- Engine Support And Muffler | 37 |
| SKI_DOO_EN_US | 06- Brake And Belt Guard | Ski-Doo / 1996 / Elan / Elan 247, 1996 / 06- Brake And Belt Guard | 7 |
| SKI_DOO_EN_US | 08- Rear Suspension | Ski-Doo / 1996 / Elan / Elan 247, 1996 / 08- Rear Suspension | 6 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 1996 / Elan / Elan 247, 1996 / 09- Frame | 20 |
