250000502
HEX. CAP SCREW M10 X 30 - Call your local BRP dealership

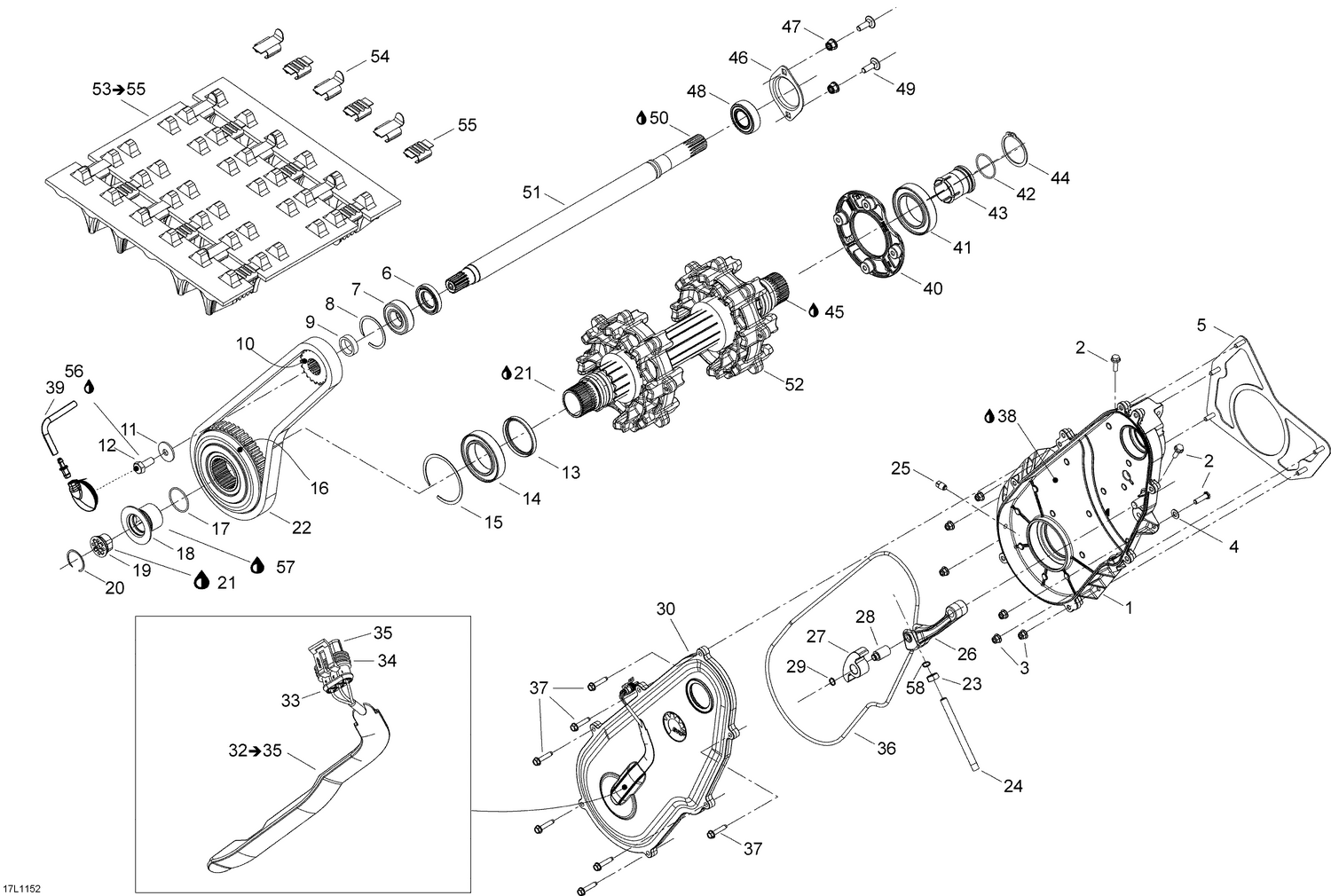

Схема сборки, где используется деталь
Used in (10 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 05- Drive System | Lynx / 2011 / Rave / Rave RS 600, 2011 / 05- Drive System | 12 |
| LNX_EN_US | 01- Engine And Engine Support | Lynx / 2011 / YETI / YETI Pro Army V-800, 2011 / 01- Engine And Engine Support | 15 |
| LNX_EN_US | 01- Engine And Engine Support | Lynx / 2011 / YETI / YETI Pro V-800, 2011 / 01- Engine And Engine Support | 15 |
| LNX_EN_US | 05- Drive System | Lynx / 2012 / Rave / Rave 550, 2012 / 05- Drive System | 10 |
| LNX_EN_US | 05- Drive System | Lynx / 2012 / Rave / Rave RS 600, 2012 / 05- Drive System | 12 |
| LNX_EN_US | 01- Engine And Engine Support | Lynx / 2012 / YETI / YETI Pro Army V-800, 2012 / 01- Engine And Engine Support | 15 |
| LNX_EN_US | 05- Drive System | Lynx / 2013 / Rave / Rave 550, 2013 000STDB00 / 05- Drive System | 11 |
| LNX_EN_US | 05- Drive System | Lynx / 2013 / Xtrim / Xtrim 550, 2013 000SHDB00 / 05- Drive System | 11 |
| LNX_EN_US | 05- Drive System | Lynx / 2014 / Rave / Rave 550, 2014 000STEB00 / 05- Drive System | 11 |
| SKI_DOO_EN_US | 05- Drive System | Ski-Doo / 2014 / TUNDRA / TUNDRA WT 550F RER XU, 2014 000FWEC00 / 05- Drive Syst | 14 |
